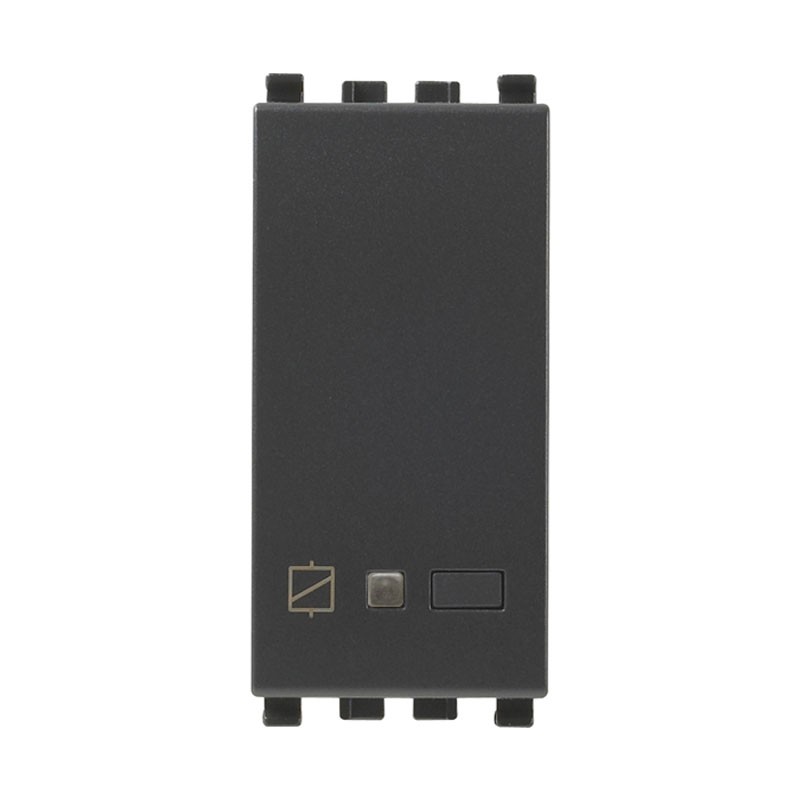

Vimar Eikon IoT connected actuator for 16A socket-outlets Grey 20593
VIW 20593
8007352628489
IoT connected actuator Vimar Eikon View Wireless:
- with NO relay output 16 A 100-240 V~ 50/60 Hz
- local control with button or remote control
- dual IoT technology on Bluetooth 5.0 standard for the creation of the VIEW Wireless mesh system and on Zigbee 3.0 standard
- measurement function of instantaneous power and energy consumed and load disconnection threshold
- identification in the dark with RGB LEDs with intensity adjustment
- power supply 100-240 V 50/60 Hz
- Grey colour.
Vimar Eikon IoT connected actuator for 16A socket-outlets Grey 20593
€42.93
Tax included
€42.93
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 3
Frequently bought together
The actuator is equipped with a relay output with current meter and a frontal button to reset the load and perform the configuration/reset. It performs the overcurrent protection function by disconnecting the load when the threshold value set through the View Wireless app is exceeded; the disconnection of the load is signalled by the red flashing of the led on the front of the device. The load reactivation, besides the frontal button, can also be done from the View App. App View also allows to display the instantaneous power consumed.
The device can be controlled with two different radio standards (exclusive between them): Bluetooth mesh (default) or Zigbee (settable through View Wirelles app). The Bluetooth mesh network implies the presence of the 20597-19597-14597 gateway while for the dialogue via Zigbee a Zigbee gateway is required (example Amazon Echo Plus, Echo Show or Echo Studio).
Features:
- Rated supply voltage: 100-240 V~ 50/60 Hz
- Power dissipation: 0.85 W
- Transmitted RF power: < 100mW (20dBm)
- Frequency Range: 2400-2483.5MHz
- Terminals: - 2 terminals (L and N) for line and neutral - 1 terminal (1) for voltage relay output
- 1 front button for load control and configuration/reset
- If configured in the Energy app, it forcibly activates the output for the time set in the View app
- RGB LED indicating the output status (settable from View Wireless app) and the configuration status (flashing blue)
- In Bluetooth technology mode, up to 2 radio devices (art. 03925) can be associated with the device, allowing the control of the actuator or the activation of a scenario
- Operating temperature: -10 ÷ +40 °C (for indoor use)
- Degree of protection: IP20
- Configuration from App View Wireless for Bluetooth technology system and Amazon App for Zigbee technology
- Controlled by App View.
