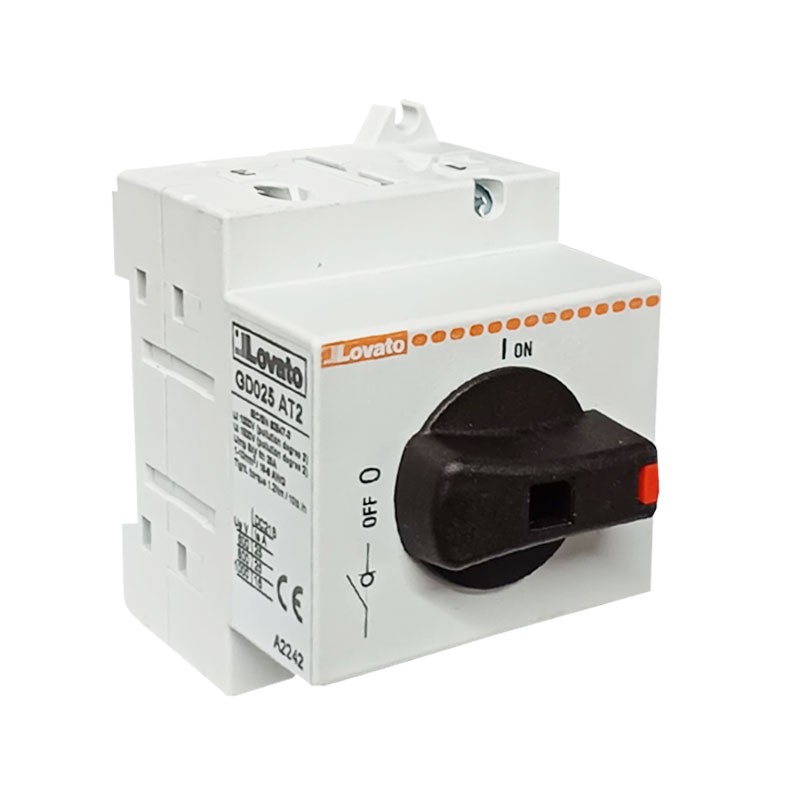

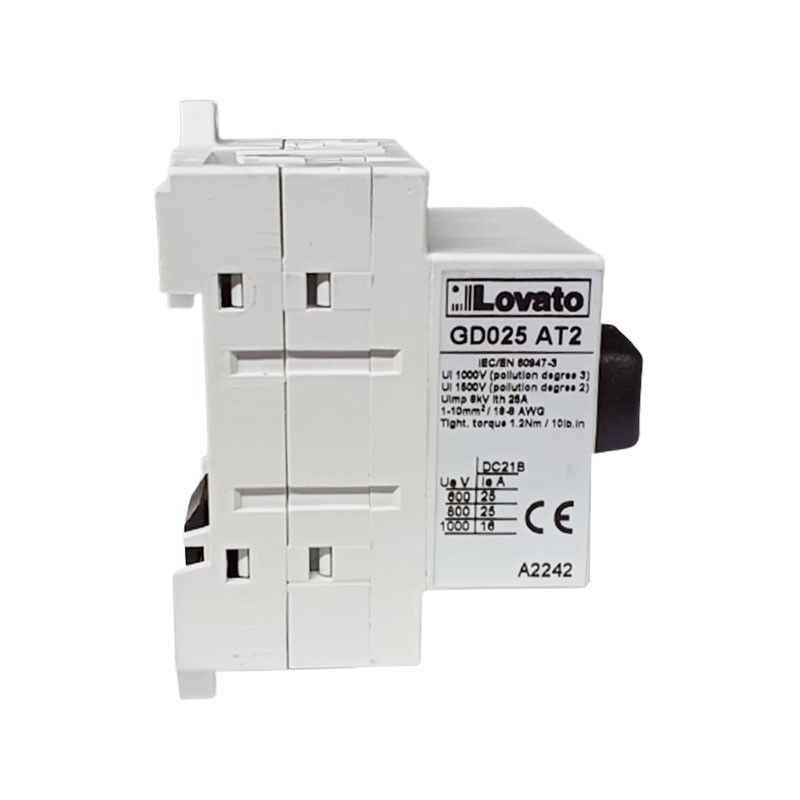

Switch Disconnector Lovato DC 25A 800V - 16A 1000V GD025AT2
LOV GD025AT2
8013975216781
Lovato DC Circuit Breaker, Conventional free air thermal current Ith IEC 25A IEC/EN 1000V rated insulation voltage, for photovoltaic applications, direct operating version, complete with black handle, 2 Poles.
Switch Disconnector Lovato DC 25A 800V - 16A 1000V GD025AT2
€29.96
Tax included
€29.96
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 665
: 54
Pay in installments with Klarna
Features:
- Type GD
- Number of poles nr. 2
- Type of operating voltage DC
- Conventional free air thermal current Ith IEC A 25
- Rated insulation voltage IEC/EN V 1000
- Rated impulse withstand voltage (Uimp) kV 8
- Power dissipation per pole max W 0.8
- Mechanical life cycles 10000
- Mounting position Normal Vertical plane Allowed Any
- Fixing Screw / DIN 35mm rail
- Connections type Screw and washer tool Phillips 1
- Operating temperature min °C -25 - max °C +55
- Maximum altitude m 3000
- Degree of protection IP20 front.
Terminal tightening torque
- min Nm 1.2
- max Nm 1.6
- min Ibin 1.3
- max Ibin 1.2.
Conductor cross-section:
- IEC min mm² 1
- IEC max mm² 10
- AWG/kcmil min 18
- AWG/kcmil max 8.
La posizione e numerazione delle porte non corrisponde a quella della scheda tecnica.
Ingressi e uscite risultano incrociati, poco intuitivo.
Prodotto imballato bene e giunto integro
Good relation quality/price.......,.........
Data sheet
- Voltage: 1000V
- Poles: 2P
- Degree of protection: IP20
- Amps: 25A
- Circuit Protections: Disconnectors
- Operating voltage: DC
