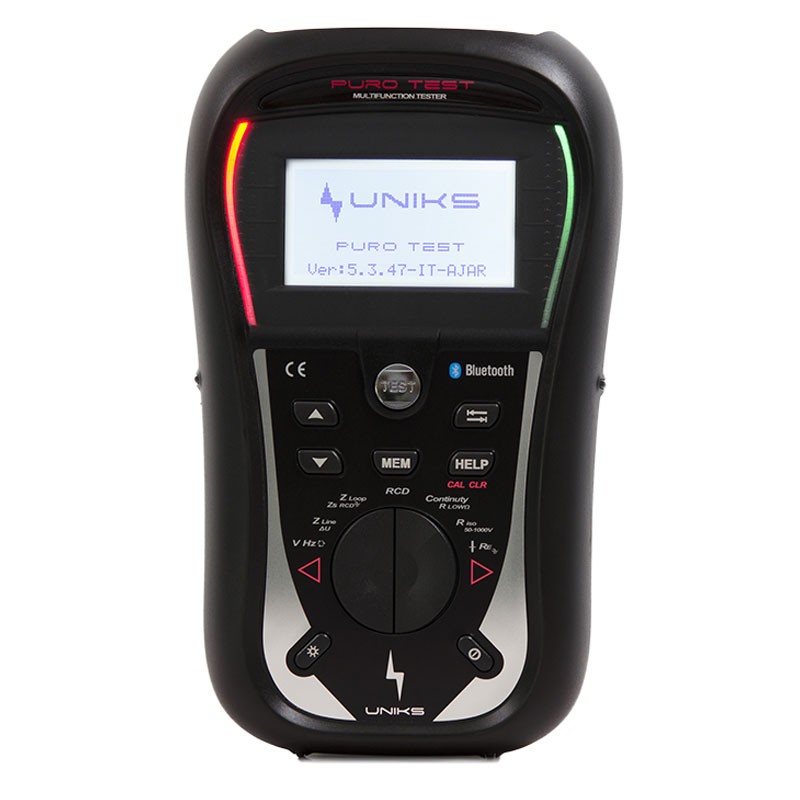

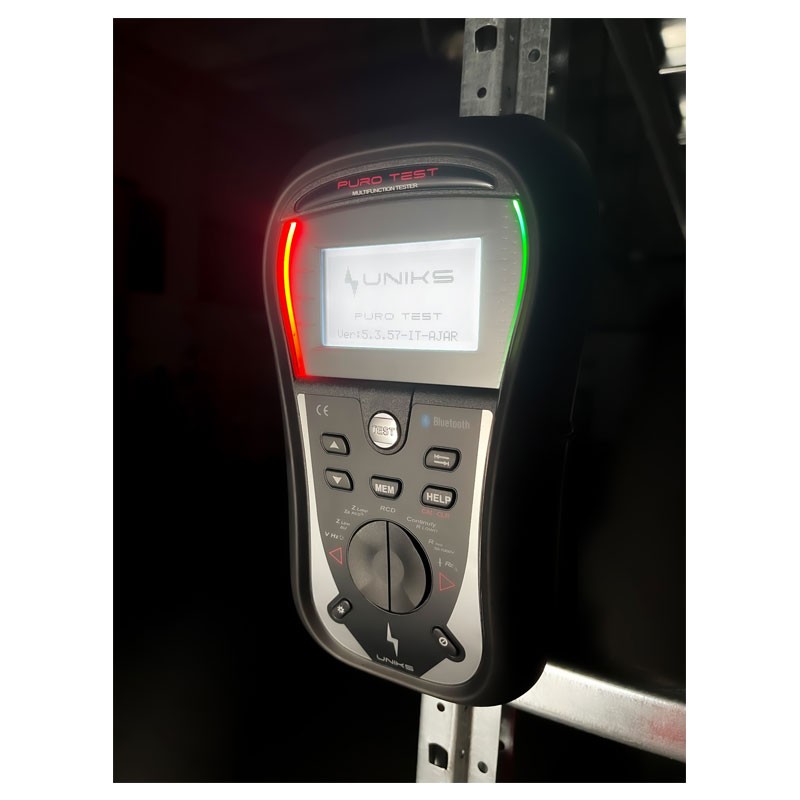

Uniks Puro CEI 64.8 electrical systems verification instrument
UNK PURO
8052461740911
Uniks Puro multifunctional instrument for checking electrical systems according to CEI 64-8.
- Power supply 9VDC (6x 1.5 V battery, type AA)
- Battery life 20h
- Display 128×64 points, matrix display with backlighting
- Memory 1700 results
- PC interface RS232, USB 2.0 Hi Speed
- Safety IEC/EN 61010-1, double insulation
- Operating temperature 0 ÷ 40°C
- Measurement category 600V CAT III, 300V CAT IV
- Lead Test Plug 300V CAT II
- Pollution degree 2
- Reference standard IEC/EN 61557-1-2-3-4-5-6-7.
Uniks Puro CEI 64.8 electrical systems verification instrument
€1,708.00
Tax included
€1,708.00
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 1
Pay in installments with Klarna
Electric power systems:
- Power plants
- Distribution
- Security
- Connections / bonding
- Insulation analysis.
Building management:
- Public Safety / Quality
- Fire safety.
Industrial Systems:
- LV Installations Safety / Quality
- Electrical Panels
- Maintenance / Troubleshooting
- Testing of three-phase systems.
Special Installations
- Construction Sites
- Railway systems
- Ships / Boats / Marine Posts
- Fire brigade vehicles
- Military / police vehicles
- Mobile LV generator units
- Medical / surgery rooms
- Cinema / audio / concert halls
- Special / police installations
- Mobile LV generator units
- General purpose
- System under maintenance.
Dimensions:
- Weight 1000 g
- Dimensions 230 × 140 × 80 mm.
Features:
- RCD and insulation
- Isolation with voltage 50, 100, 250, 500, 1000VDC
- Continuity of ground conductors with 200ma with polarity reversal with 7ma without tripping of the differential
- Earth resistance with voltamperometric method (with stakes)
- Global Earth Resistance without tripping of the differential (Zs RCD)
- Impedance of Line/Loop, Phase-Phase, Phase-Neutral, Phase-PE
- Assumed short-circuit current
- Selection of Fuse Type and Magnetothermic for PASS / NO PASS on Impedance measurements
- RCD test type A, AC, F, B, B+ and EV (electric charging stations)
- Test current type A, AC and F max 1A
- Contact voltage
- Tripping time RCD type General, Selective and Delayed
- RCD tripping current (Ramp test)
- Automatic test for RCD ( x1/2, x1, x5 and Ramp)
- Voltage drop in the line including Zref (reference impedance)
- Voltage measurement in TRMS between L-N L-Pe and N-Pe
- Frequency measurement
- Cyclic phase direction
- Test using Fast Lead remote test lead A1401 or Pro Lead test lead with schuko plug A1314 (optional)
- Green and red LEDs for PASS or NO PASS measurement indicator
- Graphic display with adjustable backlight
- On-line help on display.

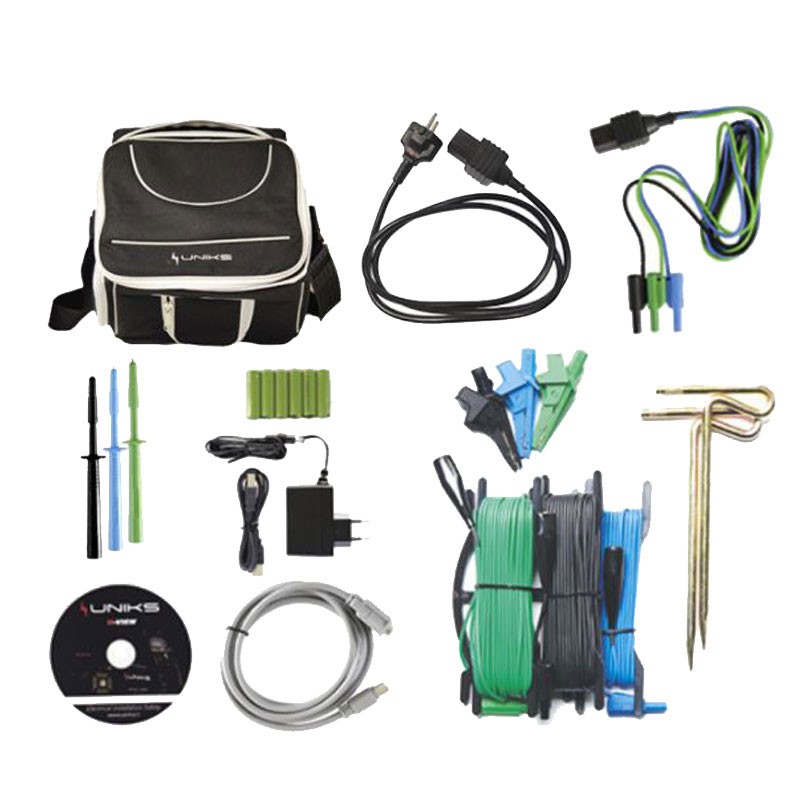

ACCESSORIES SUPPLIED:
- A1011: Set of test leads, 3 x 1.5 m
- A1014: Black tip
- A1015: Blue tip
- A1062: Green test lead
- A1017: RS232 communication cable
- A1135: Power adapter 12V / 1.2 A
- A1171: USB/RS 232 converter with 1 m fixed cable
- A1309: Crocodile clip green
- A1310: Crocodile clip blue
- A1013: Crocodile clip black
- S2026: Ground Test Set 20 m
- USB cable
- Soft bag
- Rechargeable batteries 6 x NiMH, type AA
- PC SW U-View
- User manual and Manual on CD
- Calibration certificate.
There are no reviews
Data sheet
- Type: Multifunctional Tools
