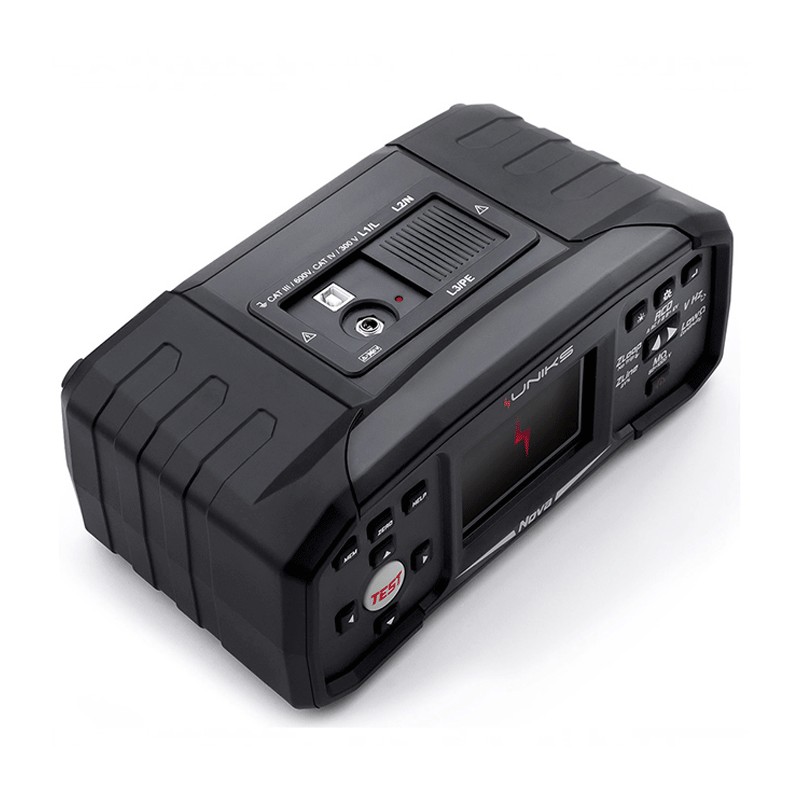

Uniks CEI 64-8 NOVA electrical installations and columns verification tool.
UNK NOVA
8052461741932

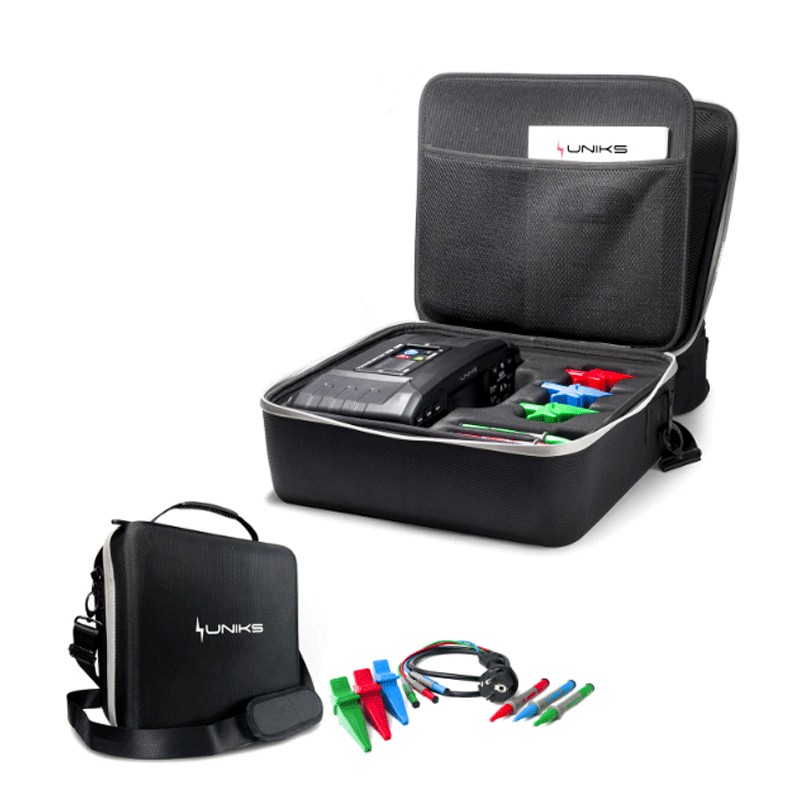

Uniks Nova verification tool for electrical installations and testing electric charging stations CEI 64-8, package includes:

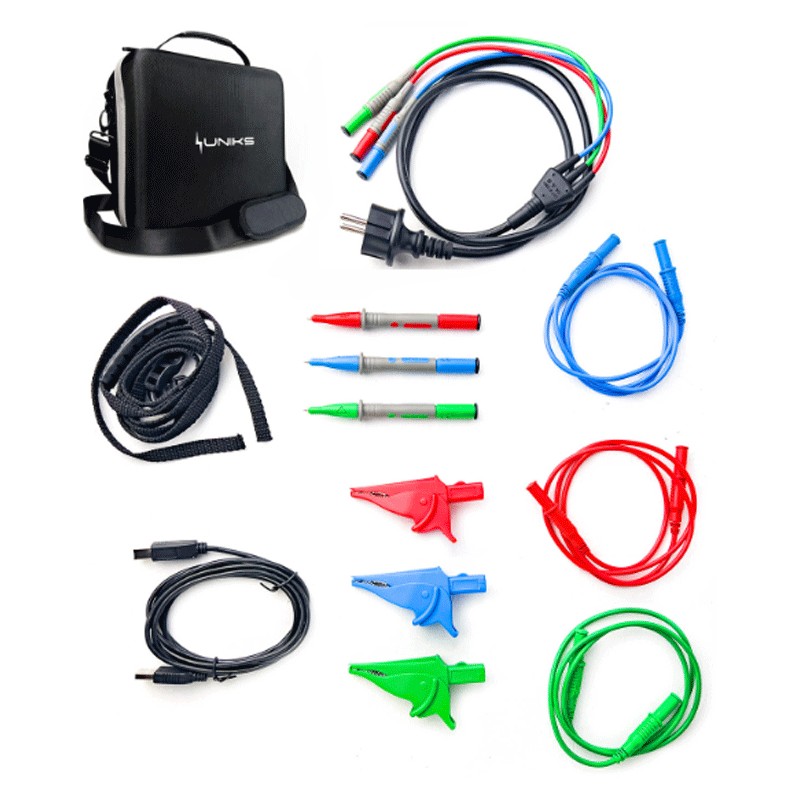

- 1 Nova Verification Tool
- 3x Cables Red-Green-Blue 1.5 m
- 3x Red-Green-Blue Tips
- 3x Red-Green-Blue Crocodile Clips
- USB Cable
- Bag
- 6x AA Batteries
- User's Manual
- Calibration certificate
Uniks CEI 64-8 NOVA electrical installations and columns verification tool.
€1,451.80
Tax included
€1,451.80
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 2
The Nova series represents the innovative range of multifunction instruments designed to fully meet the measurements for CEI 64.8 STANDARD up to the complete testing of electric charging stations (EV).
All measurements are compliant with EN61557 standard so they can certify both civil TT and industrial TN installations also they are equipped with batteries rechargeable directly from the instrument ,internal memory and USB communication for the realization of totally Customizable REPORTS (xls export).
RCD (DIFFERENTIAL) TESTING:
Nova performs Test of type A, AC and F differentials up to 1A in General or Selective modes and type B, B+ and EV differentials for testing electric charging columns (6mA AC or DC).
Performs Differential Test in 4 modes:

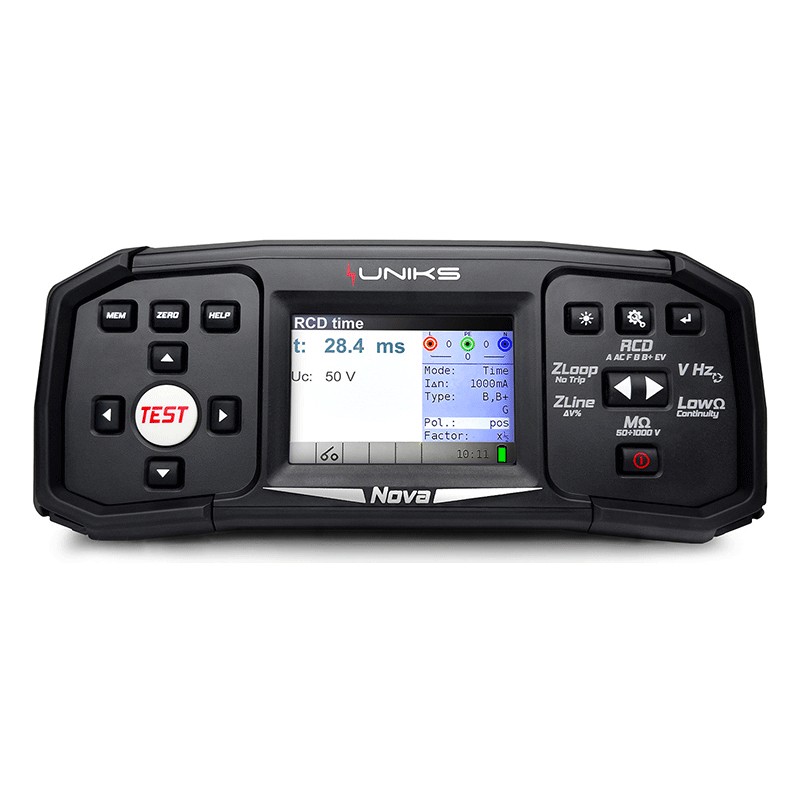

- RCD TEMPO Test of the tripping time of differentials
- RCD Ramp Test to detect at what current the differential trips
- Uc Dedicated Test for Contact Voltage
- AUTO Complete test of differentials in x1 , x5 , x1/2 and RAMPA sequence with 180° phase reversal
MEASUREMENT OF GLOBAL EARTH RESISTANCE:

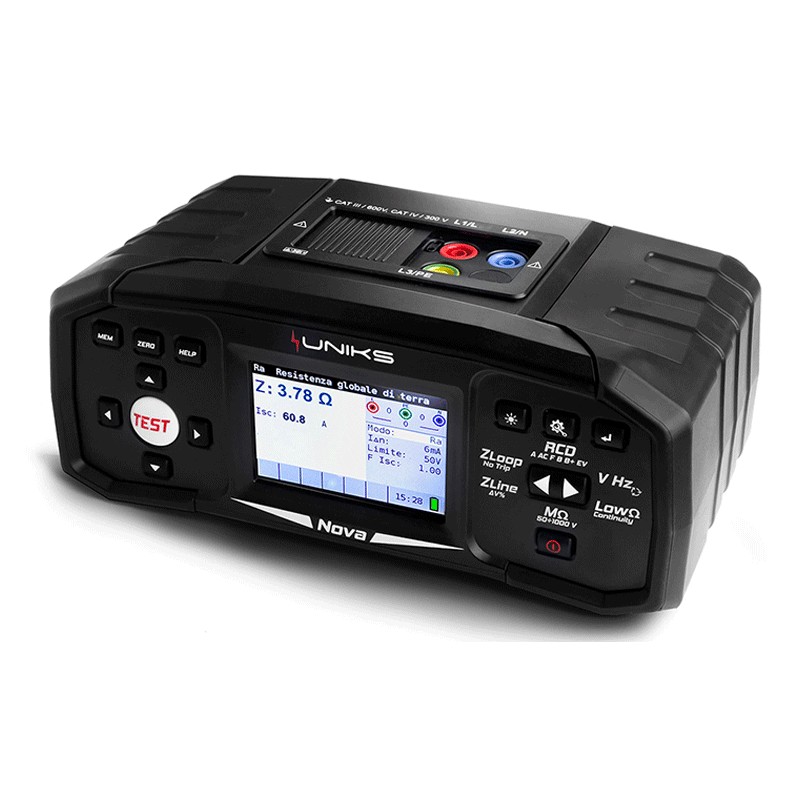

- The Ra (Loop) function represents the global earth resistance measurement in TT Systems.
- The Test is performed without the intervention of the differential, and thanks to the standard SCHUKO accessory it will be easy to perform the tests even on the sockets.
LINE/LOOP IMPEDANCE MEASUREMENT AND VOLTAGE DROP:
- Nova also performs the LINE impedance test (Phase-Neutral or Phase-Phase) at High Current to obtain impedance values with two decimal places and calculate the assumed Short Circuit Current
- Also in TN Systems through the ZLoop function it will be possible to perform the High current test between Phase and Ground
- Nova allows to set the type of Magnetothermic (type B,C,K) or Fuse to be tested indicating on Display the result OK or No OK
- It will also be possible to test the ?V% voltage drop on the line between one point and another of the 'system to assess the percentage of voltage on the line
Using the EV CHECK adapter, the safety and functionality of electric vehicle charging stations can be tested non-invasively. The adapter allows the tester to simulate the load of a vehicle connected to the cabin.
Nova will be able to perform:
- RCD type A and B testing including testing at 6mA AC or DC.
- L-N or L-L impedance test (three-phase column)
- Ground resistance test in the EV CHECK socket to the column
- Insulation Test
- Test of Voltages and Frequency
Functions:
Electric Power Systems:
- Power Plants
- Distribution
- Security
- Connections / bonding
- Insulation analysis
- Building management
- Public safety/quality areas
- Fire safety
Industrial systems:
- LV Installations Safety / Quality
- Electrical Panels
- Maintenance / Troubleshooting
- Testing of three-phase systems
Special installations:
- Construction sites
- Rail systems
- Ships / Boats / Marine Posts
- Fire department vehicles
- Military / police vehicles
- Mobile LV generator units
- Medical places / Surgery rooms
- Movie / audio / concert halls
- Special / police installations
- Mobile LV generator units
- General purpose
- System under maintenance
Features:
- 9VDC power supply (6x 1.5 V, AA type battery)
- Battery life 15h
- TFT display 480×320 dots, color
- Memory 1700 results
- USB PC interface
- Safety IEC/EN 61010-1, double insulation
- Operating Temperature 0 ÷ 30°C
- Measurement category 600V CAT III, 300V CAT IV
- LeadNova 300V CAT II
- Pollution degree 2
- Reference standard IEC/EN 61557-1-2-3-4-5-6-7
Specifications:
- RCD and insulation
- Insulation with voltage 50, 100, 250, 500, 1000VDC
- Continuity of ground conductors with 200ma with polarity reversal with 7ma without tripping of differential
- Global Earth Resistance without tripping of differential (Ra)
- Impedance of Line/Loop, Phase-Phase, Phase-Neutral, Phase-PE
- Assumed Short Circuit Current
- Selection of Fuse Type and Magnetothermic for OK / NO OK on Impedance measurements
- RCD test of type A, AC, F, B, B+ and EV (6mA AC and DC for electric charging stations)
- Test current type A, AC and F max 1A
- Contact voltage
- RCD tripping time type General, Selective and Delayed
- RCD Tripping Current (Ramp Test)
- Automatic Test for RCD ( x1/2, x1, x5 and Ramp)
- Voltage drop in the line including Zref (reference impedance)
- Voltage measurement in TRMS between L-N L-Pe and N-Pe
- Frequency measurement
- Cyclic sense of phases
- Test using LeadNova remote test lead (optional)
- Color display with 3 brightness levels
- On-line help on display
