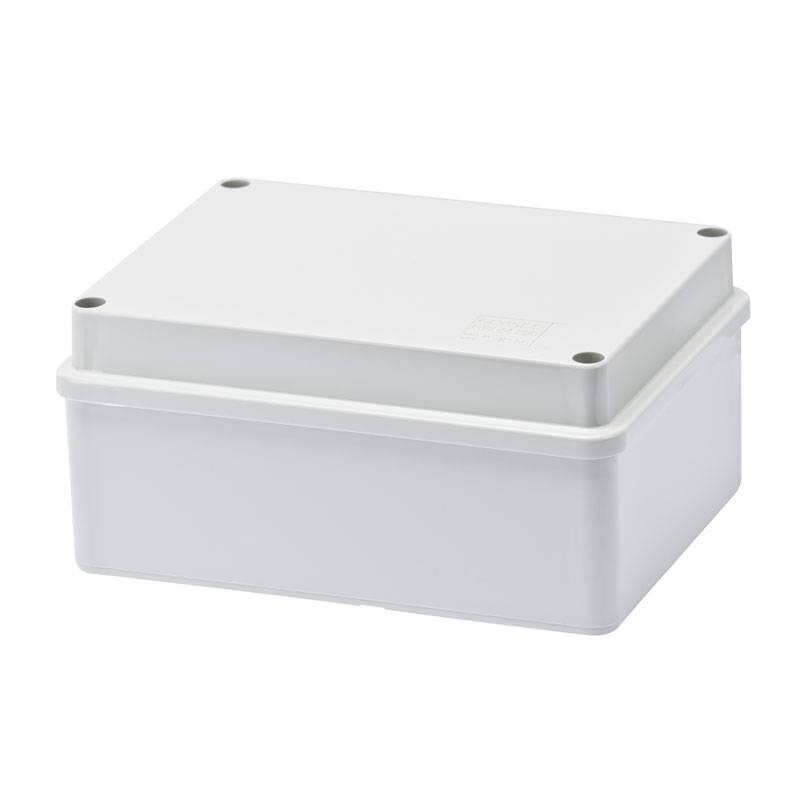

Gewiss junction box smooth wall IP56 150x110x70 mm GW44206
GEW GW44206
8011564013797
Gewiss smooth wall junction box with the following features:
- Degree of protection: IP56
- Material: Technopolymer
- Lid: Low screw-on
- Stainless steel screws
- Screw tightening torque: 1.2 Nm
- Walls: Smooth
- Thermopressure with ball: 85 °C
- Operating temperature: -25/+60 °C
- Glow wire resistance: 650 °C
- Hole diameter: 29mm
- Color: gray
- Dimensions: 150x110x70mm
Gewiss junction box smooth wall IP56 150x110x70 mm GW44206
€5.02
Tax included
€5.02
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 3054
: 216
Frequently bought together
Range of wall-mounted watertight junction boxes Series 44 CE complying with International Standards IEC 60670-1 (IEC 23-48) and IEC 60670-22 (IEC 23-94) and made of high-performance technopolymers. IP56 with smooth fast-entry walls and low screw-on covers, available in different self-extinguishing materials (up to GWT 960°C).
Suitable for ordinary shunt, special purpose and industrial applications.
There are no reviews
Data sheet
- Type:
- Wall
- Shape:
- Rectangular
- Version:
- Standard
- Degree of protection:
- IP56
- Model:
- Smooth wall
