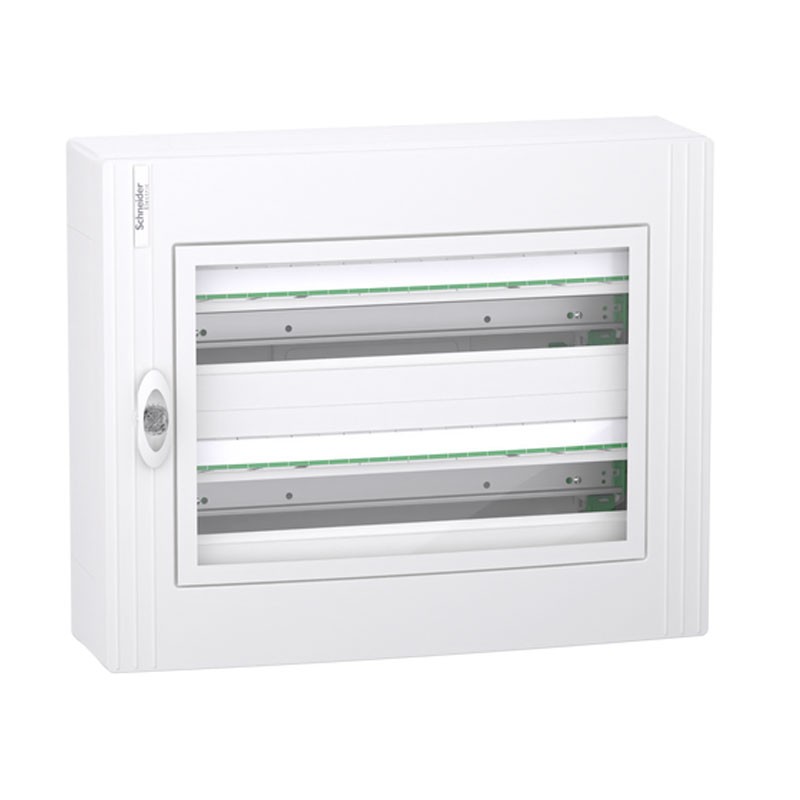

Schneider wall-mounted switchboard PRISMASET XS transparent door 48M LVSXM224
SNR LVSXM224
3303432378035
Schneider wall-mounted PRISMASET XS modular switchboard/container with the following features:
- Number of 18 mm modules per row: 24
- Number of horizontal rows: 2
- Total number of 18 mm modules: 48
- 9 mm pitch: 96
- Electrical insulation class: Class II
- Width: 550 mm total
- Height: 450 mm total
- Depth: 168 mm total
- Internal depth: 155 mm
- IP degree of protection: IP40 with door closed
- IK degree of protection: IK09 with door closed
- Overvoltage category: II
- Ambient air temperature for operation: -25/+60 °C
Schneider wall-mounted switchboard PRISMASET XS transparent door 48M LVSXM224
€378.92
Tax included
€378.92
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 1
Pay in installments with Klarna

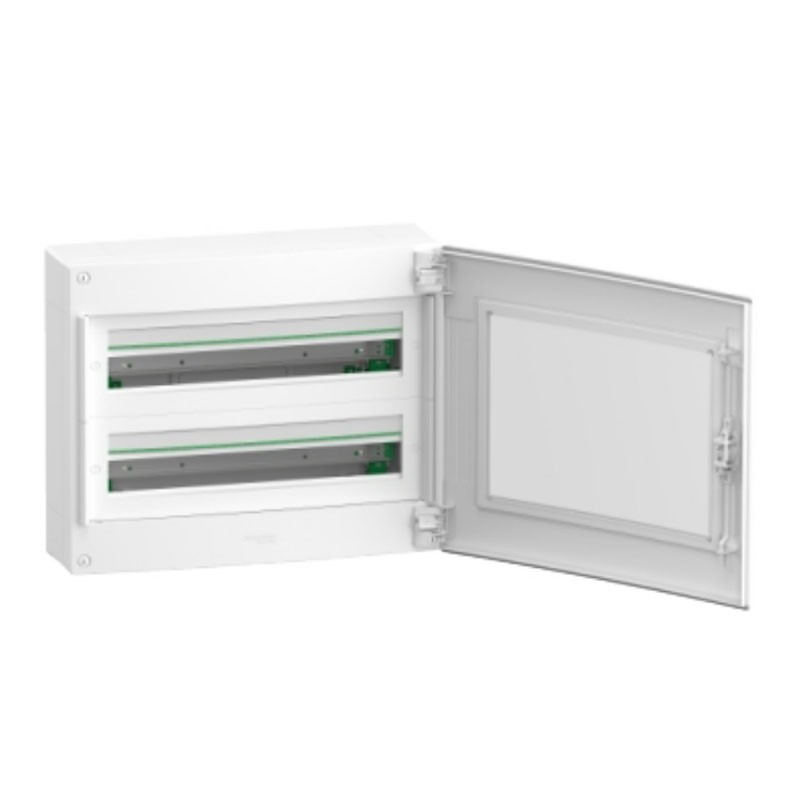

This PrismaSeT XS box is a surface-mounted distribution box. This metal and plastic box consists of 2 rows of 24 18 mm modules. It is suitable for all types of modular switchboards. This cabinet is intended for indoor installation. The IP rating when the door is closed is IP40. It comes with a colorless transparent door. The color of the housing and cover plate is white (RAL 9003). This ready-to-use cabinet is intended for both the residential and tertiary sectors. It is designed for electricians and offers ergonomics and installation flexibility. Cables can be routed through the top or bottom of the cabinet via removable gland plates. It allows entry via cable, conduit or gutter. Features 1 back plate and 2 DIN rails. Busbars are removable and facilitate wiring and maintenance. It comes with 1 ground terminal block. This terminal block has 24 outputs (3x25mm²+21x4mm²). It can also hold an Acti9 VDIS vertical distributor, consisting of 24 modules. It comes with 1 nameplate, 1 label protector, 1 blind strip, and some accessories for fixing cables. The electrical insulation class is class II. The rated insulation voltage Ui is 400V. The overvoltage category is II. The rated current In is up to 125A. It complies with IEC 60670-1 and 24, IEC 61439-1 and 3. The overall dimensions are (W) 550 mm x (H) 450 mm x (D) 168 mm. The weight of the product is 10.270 kg. The box and cover plate are technoplastic in nature. The back and door are made of metal. The resistance of plastic to flame and abnormal heat is 650°C for the cabinet and cover plate. The degree of protection IK is with the door closed. The operating temperature is between -25°C and 60°C.
Equipment provided:
- 2 identification label
- 2 label protectors
- 1 terminal block
- 1 blind plate strip
- 1 door
- 2 DIN rail
- 2 cable mounting hardware

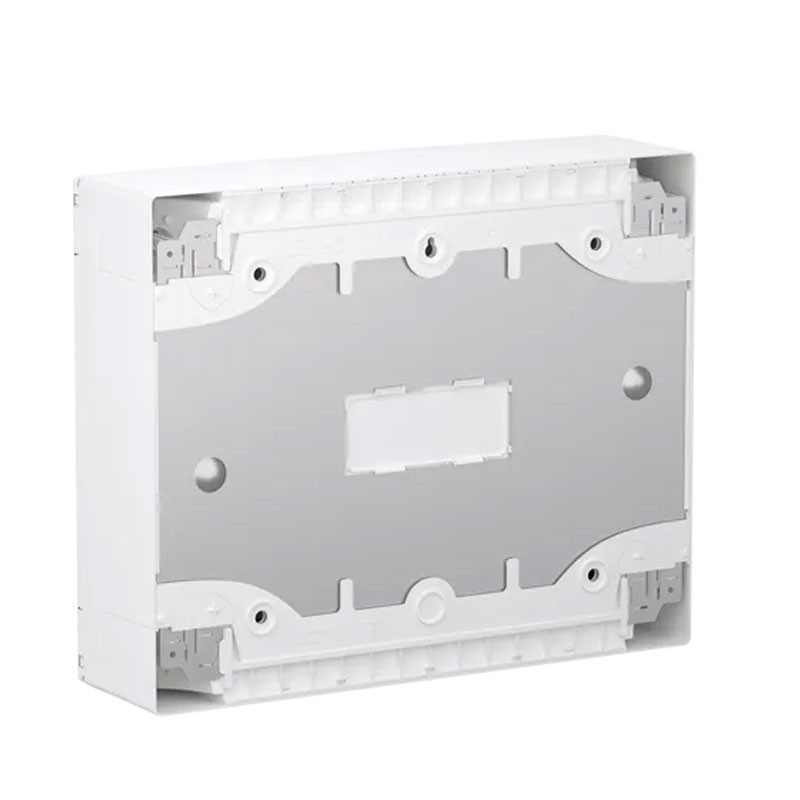

- 1 backplate
Other technical features:
- Front Plate Type: Modular
- Type of door: Transparent
- Track type: DIN symmetrical
- Mounting plate description: Without mounting plate
- Removable parts: DIN rail
- Power dissipation 67W
- Rated current: 125A
- Rated insulation voltage [Ui]: 400V
- Cable entry: Cables or tubes - Cut-out plates - Guide - Removable plates
- Number of terminal blocks: 1 ground with 24.0 outlets
- Distribution terminal leave: 3 x 25 mm² + 21 x 4 mm² for grounding
- Distribution block outlets: 6 x 25 mm² + 32 x 4 mm² for grounding
- Connections - terminals: Screw connection (grounding) , 3.0 6...25 mm² - Push-in (grounding) , 21.0 1.5...4 mm² (flexible) - Push-in (grounding) , 21.0 6 mm² (rigid or wired)
- Description of locking options: Key lock option
- Enclosure material: Back: metal - Enclosure: technoplastic - Front: technoplastic -Door: glass
- Net weight: 10.270 kg
- Color: Enclosure: white (RAL 9003) - Front panel: white (RAL 9003) - Door: colorless
- Market segment: Residential - Small buildings
- Fire resistance: Enclosure: 650 °C in accordance with IEC 60695-2-11 - Front plate: 650 °C in accordance with IEC 60695-2-11
- Standards: IEC 60670-1 - IEC 60670-24 - IEC 61439-1 - IEC 61439-3
- Quality labels: IMQ
There are no reviews
Data sheet
- Type: Wall
- Modules: 48
- Degree of protection: IP40
- Model: With door
