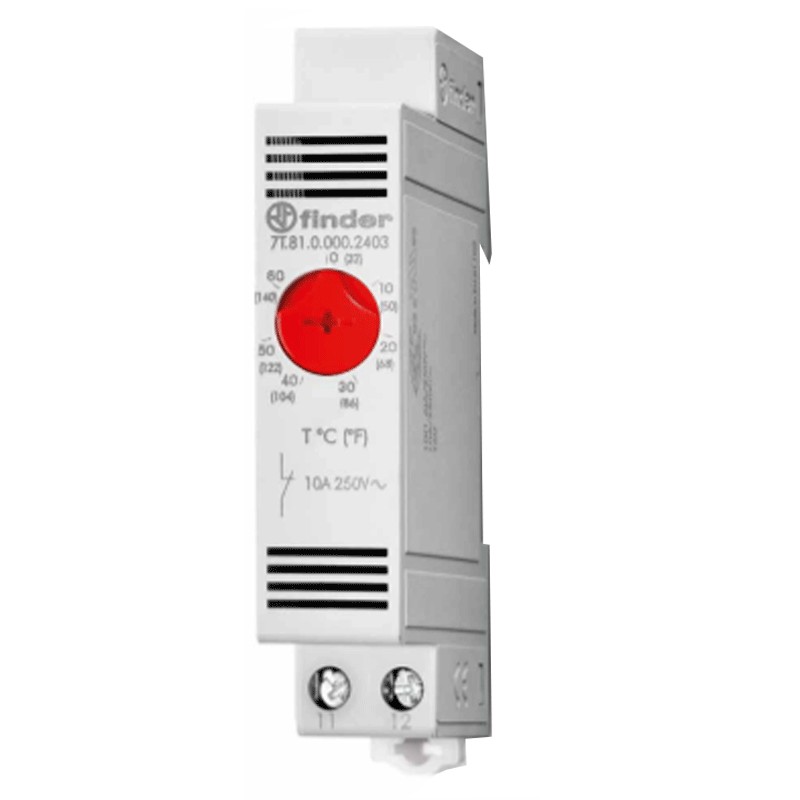

Finder analog thermostat for heating 10A 250V 7T8100002403
FIN 7T8100002403
8012823363288
Analog thermostat for heaters Finder Type 7T81, with the following features:
- Rated/Max instantaneous current 10/20A
- Nominal voltage/Max nominal voltage 250/250V AC
- Disconnects the heater
- Contact configuration 1NC
- Nominal load in AC1 2500VA
- Nominal load in AC15 (230V AC) 250VA
Finder analog thermostat for heating 10A 250V 7T8100002403
€14.64
Tax included
€14.64
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 70
: 10
Pay in installments with Klarna
Features:
- Finder Series
- Single-phase motor capacity AC3 (230 V AC) 1.1kW
- Breaking capacity in DC1: 30/110/220 V 1/0.3/0.15A
- Minimum switching load mW (V/mA) 500 (12/10)
- Standard contact material AgNi
- Setting range (ventilation): -20...+40 -20...+60 0...+60 °C
- Differential 7 ± 4K
- Electrical life in AC1 cycles 100 - 10
- Ambient temperature °C: -45...+80
- Protection category IP20
Advantages:
- Small size (width 17.5 mm)
- Bimetal contact
- Wide adjustment range
- Long electrical life
- Mounting on 35 mm bar (EN 60715)
