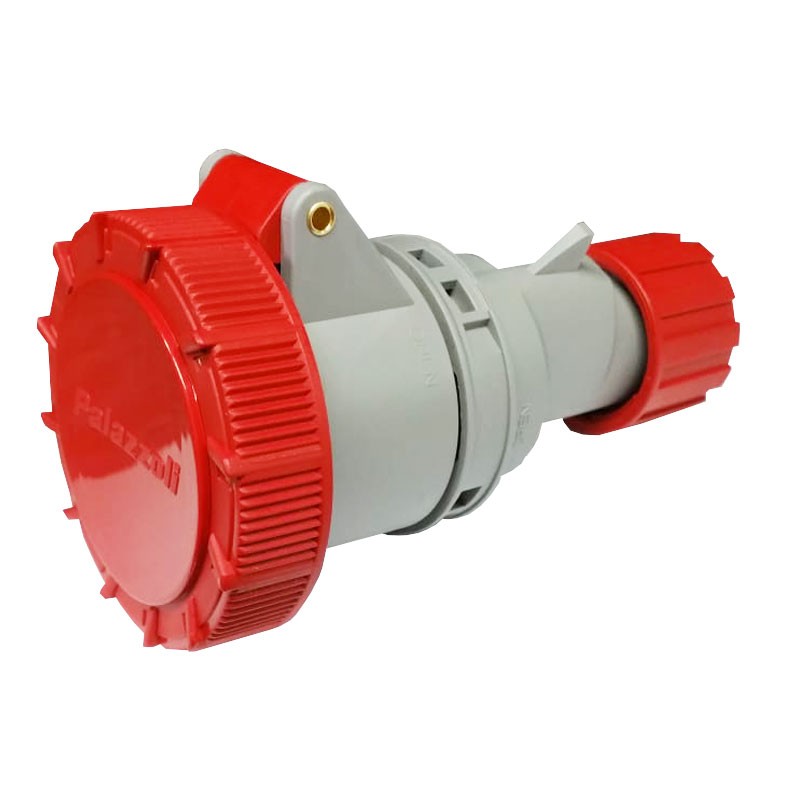

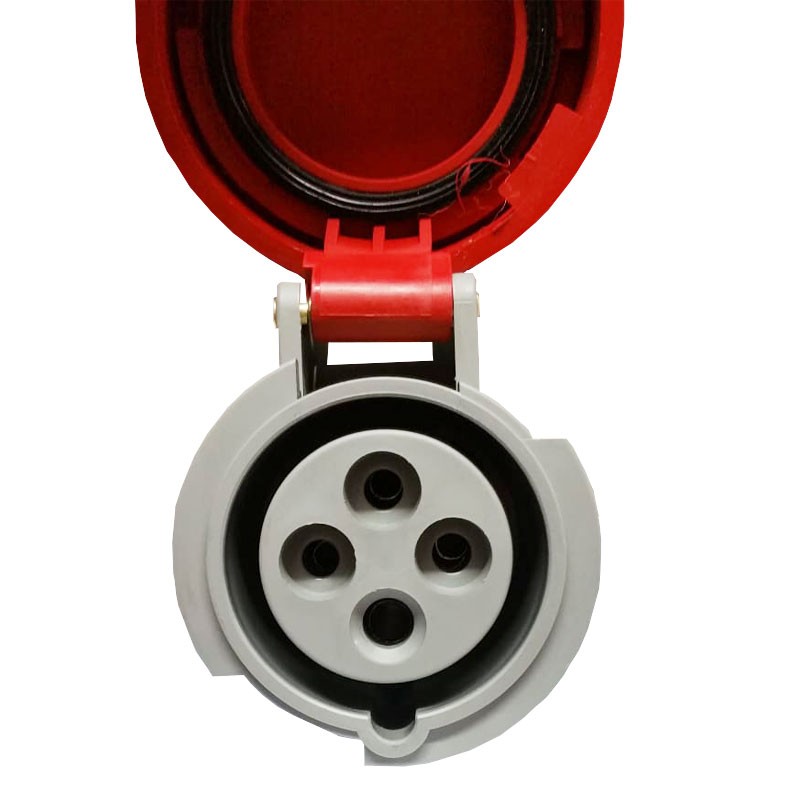

Palazzoli CEE Industrial Socket 3P+E 16A 400V IP67
PAL 730136
8014950036165
Palazzoli CEE mobile/straight industrial socket, with the following characteristics:
- Rated voltage: 400V
- Rated insulation voltage: 690V
- Poles: 3P+T
- Nominal current 16A
- Frequency 50/60Hz
- Protection degree IP67
Palazzoli CEE Industrial Socket 3P+E 16A 400V IP67
€12.35
Tax included
€12.35
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 137
Pay in installments with Klarna
Features:
- Palazzoli Series
- Storage ambient temperature: MIN -30°C - MAX +70°C
- Ambient temperature: MIN -25°C - MAX +50°C
- Input cable diameter 8,5÷14 mm
- Max conductor section 6 mm²
- Color: gray RAL 7042
- Type of terminals: indirect clamping
- Shock resistance IK08 according to IEC/EN 62262
- Hourly ref: 6h
- Body material: thermoplastic
- Design: mobile
- Straight shape
- Plug-socket standard: EN60309-2
There are no reviews
Data sheet
- Type: Sockets CEE
- Voltage: 380/415VAC
- Poles: 3P+T
- Degree of protection: IP67
- Installation: Furniture
- Amps: 16A
