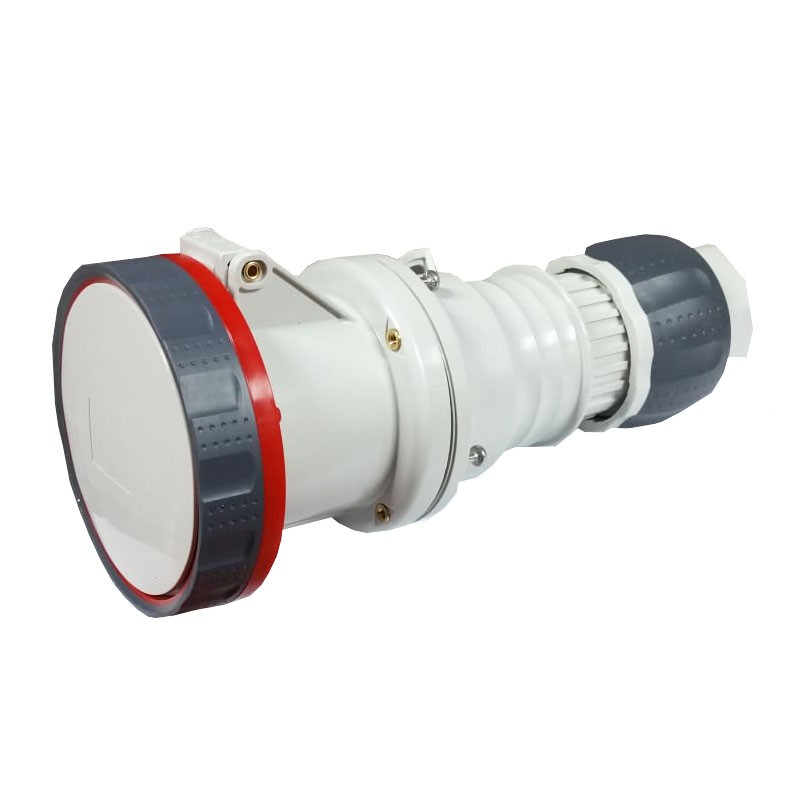

Gewiss mobile socket 3P+E 63A IP67 red 380V GW63052H
GEW GW63052H
8011564829190
Gewiss straight HP mobile outlet, with the following features:
- Rated voltage: 380-415V
- Frequency: 50/60 Hz
- Rated current 63A
- Poles: 3P+T
- Degree of protection IP67
- Shroud wiring
Gewiss mobile socket 3P+E 63A IP67 red 380V GW63052H
€64.43
Tax included
€64.43
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 23
Pay in installments with Klarna
Features:
- Gewiss Series
- Shock resistance: IK09
- Reference h: 6
- Frequency: 50/60 Hz
- Color: red
- Clamping capacity: 6-16 mm² flexible cables - 6-25 mm² rigid cables
- Clamping capacity: 17.9-37 mm² cables
- Operating temperature -25 +55 °C
- Material type: Halogen free according to EN 60754-2
- Electrocod code: 2211
- Glow wire test: 850 °C (active parts) - 650 °C (passive parts)
- N. Total operations: > 2000
- Interrupting capacity at 1,1 Un: 79A
- Insulation resistance: > 10 MΩ
- Thermopressure with ball: 125 °C (Active parts) - 80 °C (Passive parts)
- Ware number 85366990
There are no reviews
Data sheet
- Type: Sockets CEE
- Voltage: 380/415VAC
- Poles: 3P+T
- Degree of protection: IP67
- Installation: Furniture
- Amps: 63A
