Gewiss fixed wall socket 2P+E 16A IP44 220V GW62477
GEW GW62477
8011564004610

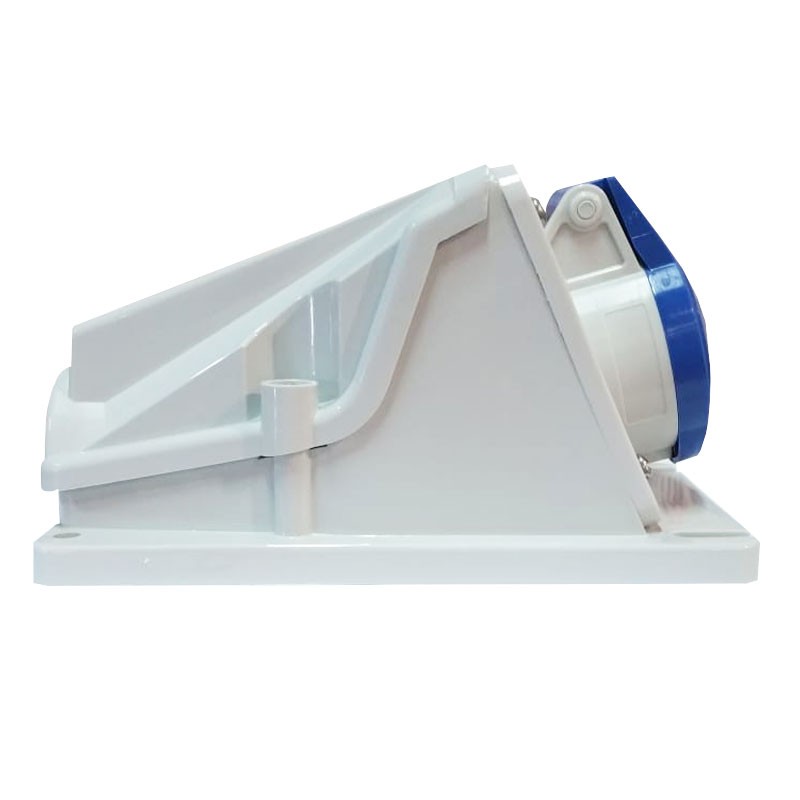

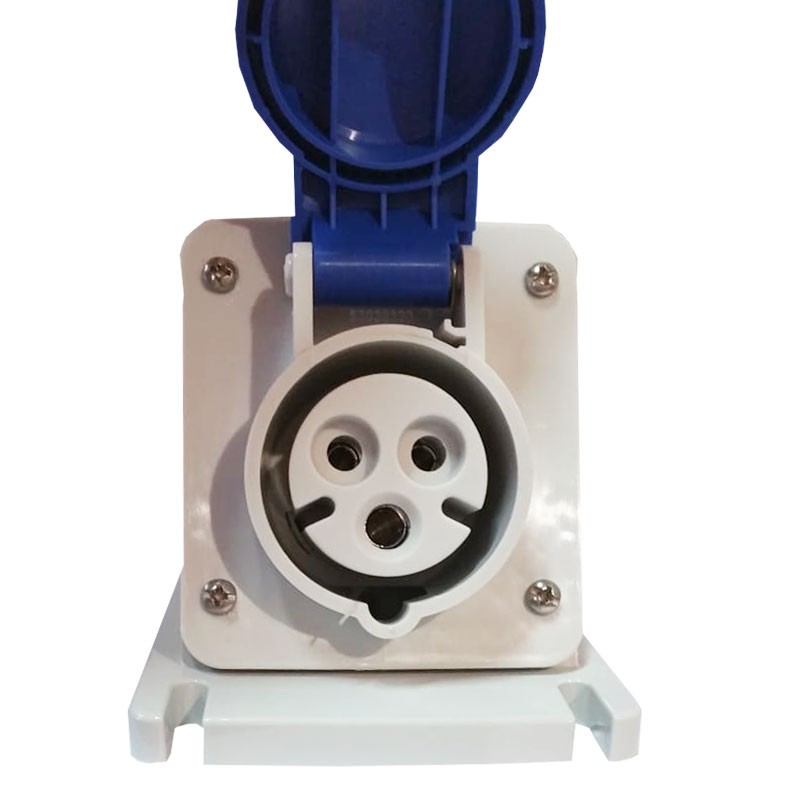

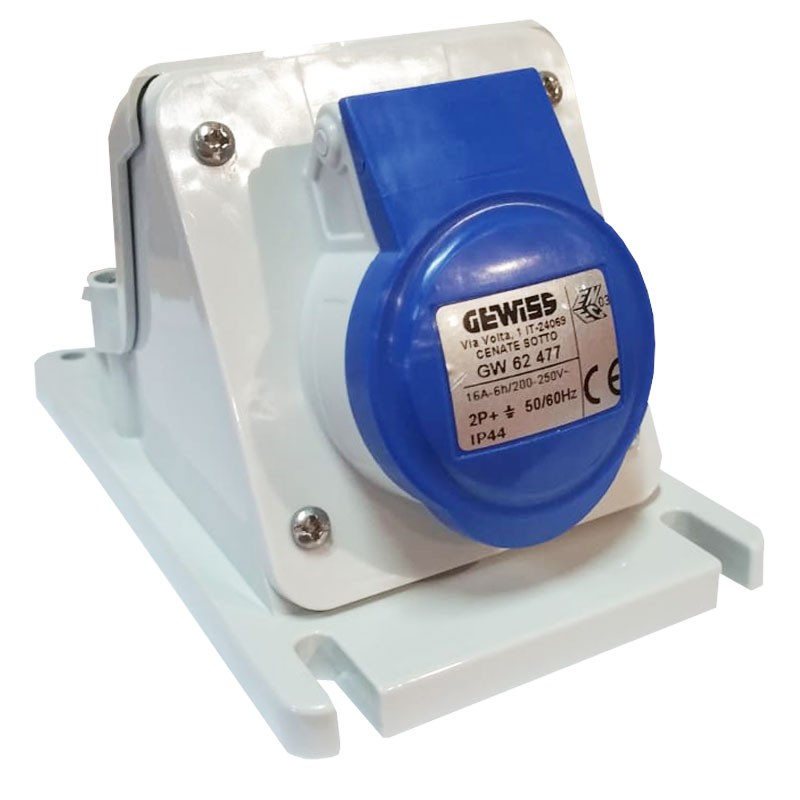

Gewiss 90° fixed wall outlet with the following features:
- Nominal voltage: 200-250V
- Frequency: 50/60 Hz
- Rated current 16A
- Poles: 2P+T
- Degree of protection IP44
Gewiss fixed wall socket 2P+E 16A IP44 220V GW62477
€11.30
Tax included
€11.30
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 82
Pay in installments with Klarna
Features:
- Gewiss Series
- Admissible overload: 22A
- Interrupting capacity at 1.1 Un: 20A
- Glow wire test: 850 °C (active parts) - 650 °C (passive parts)
- Insulation resistance: > 10 MΩ
- Blue color
- Impact resistance: IK08
- Wiring type: screw
- N. Total maneuvers > 5000
- Thermopressure with ball: 125 °C (Active parts) - 80 °C (Passive parts)
- Reference h: 6
- Terminal clamping capacity: 1-2,5 mm² flexible cables - 1,5-4 mm² rigid cables
- Operating temperature: -25 +40 °C
There are no reviews
Data sheet
- Type: Sockets CEE
- Voltage: 220/250VAC
- Poles: 2P+T
- Degree of protection: IP44
- Installation: Wall-mounted
- Amps: 16A
