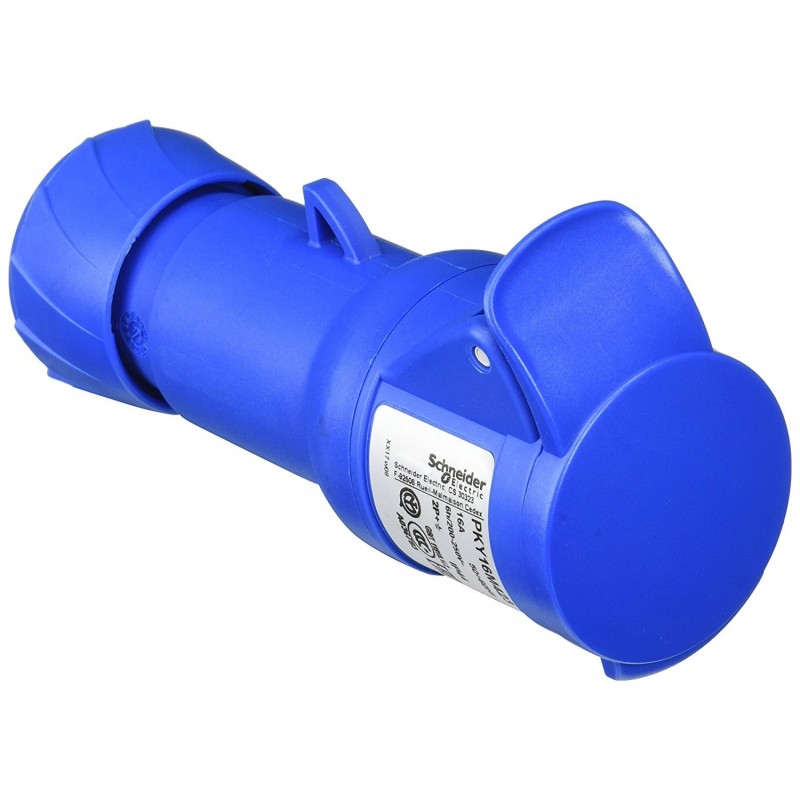

Schneider industrial mobile socket 2X32A+T 230V IP44 blue PKY32M423
SNR PKY32M423
3303432010348
PratiKa Fast Schneider LV mobile industrial outlet, with the following features:
- Rated operating voltage 200/250V
- Rated current 32A
- Network frequency: 50/60 Hz
- Network type: AC
- Poles: 2P+T
- Low voltage straight plug
Schneider industrial mobile socket 2X32A+T 230V IP44 blue PKY32M423
€9.56
Tax included
€9.56
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 10
: 2
Pay in installments with Klarna
Features:
- Schneider Series
- Earth terminal position (clockwise): 6 hours
- Material plug, socket :housing: self-extinguishing technopolymer
- Contacts material: brass pins
- Connections - terminals: quick connection
- Cable cross section: 2.5...6 mm²
- Cable outer diameter: 11.5...21 mm
- Cable entry: cablegrommet/cablecollar
- Dimensions: height 98 mm - width 98 mm - depth 165 mm
- Net weight: 0.244 kg
- Color: gray (RAL 7035)
- Color of voltage: blue
- Reference standards: IEC 60309-1 - IEC 60309-2
- Degree of protection IP44 in accordance with IEC 60529
- Degree of protection IK08 in accordance with EN 62262
- Fire resistance: 850 °C in accordance with IEC 60695-2-11
- Relative humidity: 50 % at 40 °C - 70 % at 30 °C - 90 % at 20 °C
- Ambient air temperature for operation: 35 °C ( 86400 s ) / -25 +40 °C
Data sheet
- Type: Sockets CEE
- Voltage: 220/250VAC
- Poles: 2P+T
- Degree of protection: IP44
- Installation: Furniture
- Amps: 32A
