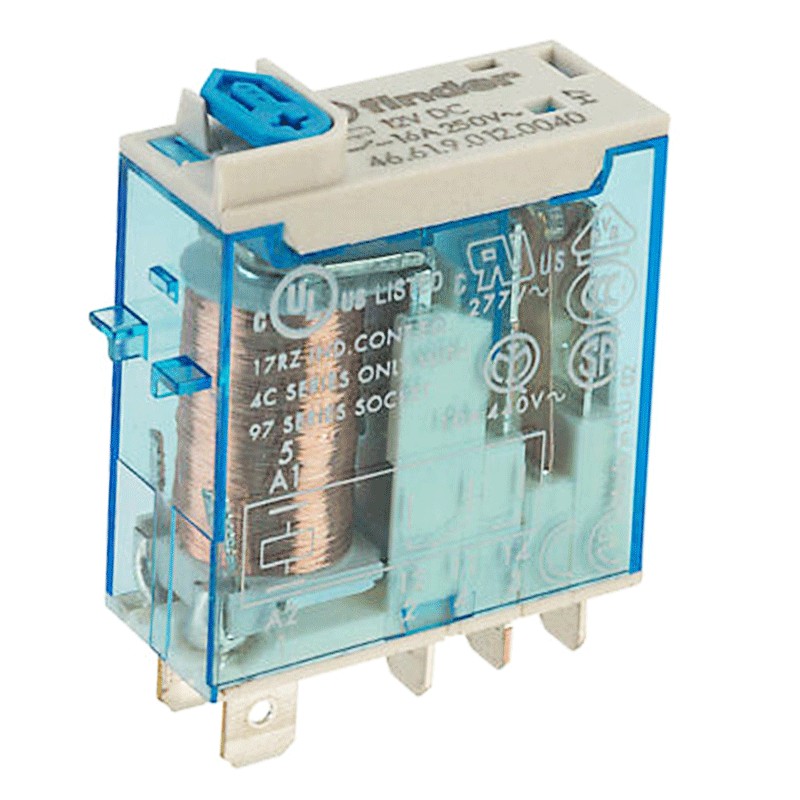

Finder industrial mini relay coil 12V DC 16A 466190120040
FIN 466190120040
8012823301648
Finder Industrial Mini Relay Type 46.61, with the following features:
- Supply voltage (50/60 Hz) AC/DC 12V
- Nominal voltage Max switching voltage AC 250/400V
- Nominal current/Max instantaneous current 16A
- Nominal load in AC1 VA 4000
- Nominal load in AC15 VA 750
- Single-phase motor capacity (230 V AC) kW 0.55
- Mounting on 97 series sockets or direct connection via Faston
- Contact configuration: 1 exchange 16A
- Plug-in terminals/Faston 187
Compatible sockets series 97 (9701SPA, 9702SPA).
Finder industrial mini relay coil 12V DC 16A 466190120040
€6.30
Tax included
€6.30
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 29
: 5
Pay in installments with Klarna
Frequently bought together
Features:
- Finder Series
- Breaking capacity in DC1 30/110/220 V: 6/0.5/0.15A
- Minimum switching load mW (V/mA) 300 (5/5)
- Standard contact material AgNi
- Rated power AC/DC VA (50 Hz) VA/W: 1.2/0.5
- Operating range :AC(0.8...1.1)UN - DC (0.73...1.1)UN
- Holding voltage AC/DC 0.8 UN / 0.4 UN
- Release voltage AC/DC 0.2 UN / 0.1 UN
- Mechanical endurance AC/DC cycles 10 - 10
- Electrical endurance at rated load AC1 cycles 100 - 10
- Trip time: on/off ms 15/5
- Insulation between coil and contacts (1.2/50 μs) kV 6 (8 mm)
- Dielectric strength between open contacts 1000V AC
- Ambient temperature °C -40...+70
- Protection category RT II
Advantages:
- AC or DC coil
- Available with: lockable test button, mechanical indicator and LEDs
- 8 mm, 6 kV (1.2/50 μs) insulation between coil and contacts
- Cadmium-free contacts
- Sockets Series 97 for PCB, solder or 35 mm rail mounting (EN 60715) with Push-in, screw or spring terminals
- Series 99 EMC Protection and Signaling Modules and Type 86.30 Timing Modules
- Adapters for alternative mounting available
- European Patent
