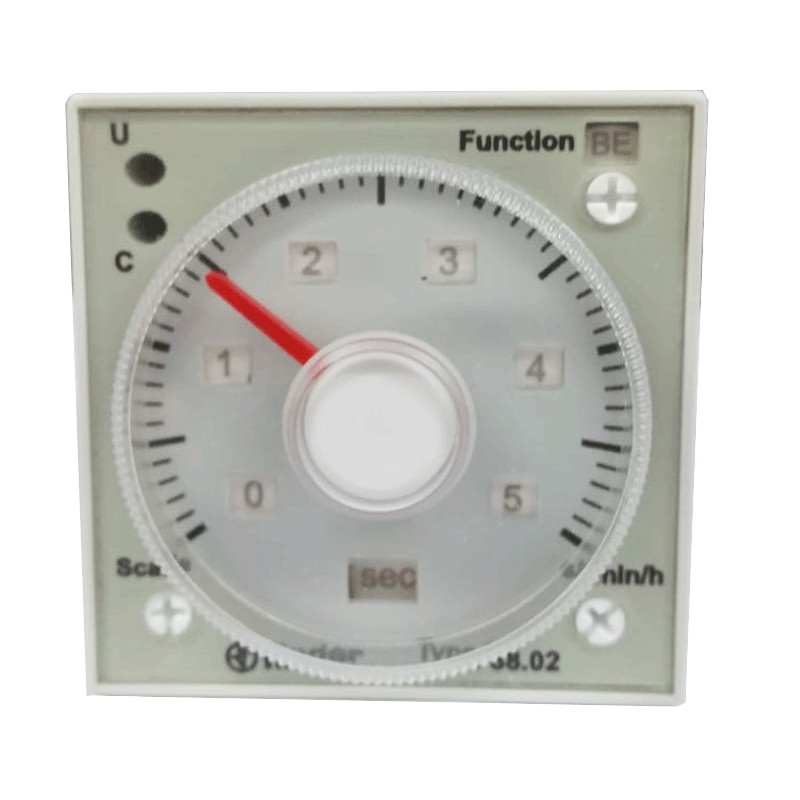

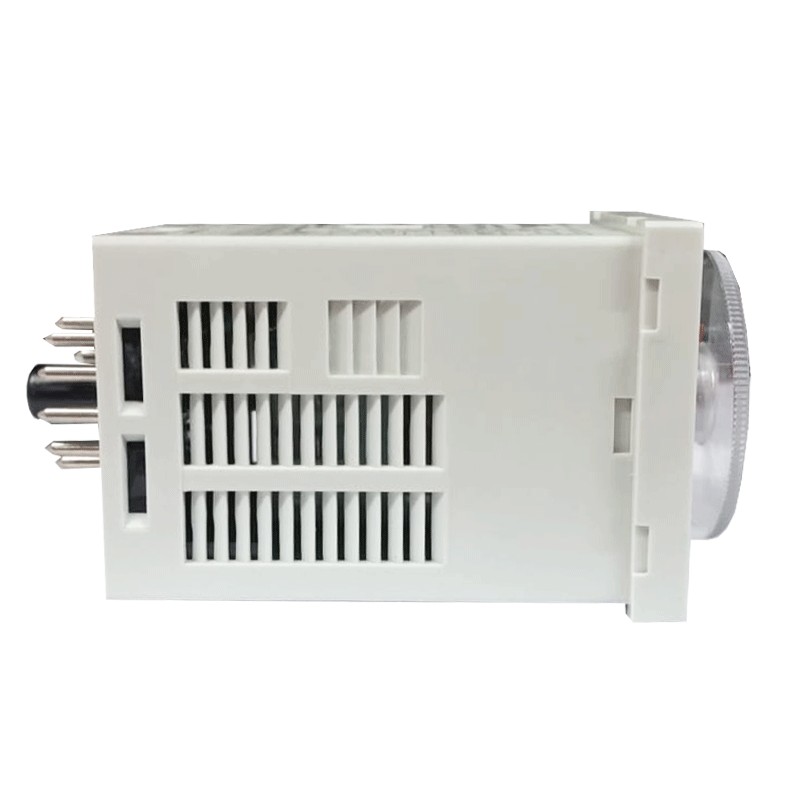

Finder multi-voltage and multifunction timer 880202300002
FIN 880202300002
8012823304458
Plug-in timer Finder Type 88.02, with the following features:
- Nominal voltage Max. switching voltage AC 250/400V
- Rated current/Max instantaneous current 8/15A
- Rated load in AC1 VA 2000
- Rated load in AC15 VA 400
- Single-phase motor capacity (230 V AC) kW 0.3
- Rated supply voltage (UN) AC/DC (50/60 Hz) 24...230V
- Contact configuration 2 exchanges
- Multivoltage and multifunction Undecal
- Series 90 socket-mounting
Finder multi-voltage and multifunction timer 880202300002
€82.62
Tax included
€82.62
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 17
Pay in installments with Klarna
Frequently bought together
Features:
- Finder Series
- DC1 breaking capacity: 8/0.3/0.12
- Minimum switching load mW (V/mA) 300 (5/5)
- Standard contact material AgNi
- Rated power AC/DC VA (50 Hz) 2.5 (230 V)/1 (24 V)
- Operating range AC/DC (50 Hz) 20.4...264.5
- Timing adjustment (0.05 s...5 h) - (0.05 s...10 h) - (0.05 s...50 h) - (0.05 s...100 h)
- Repeatability % ± 1
- Electrical service life at rated load AC1 cycles 200 - 10
- Reset time ≤ 300 ms
- Minimum control pulse duration ms 50
- Adjustment accuracy - full scale % ± 3
- Electrical life at rated load AC1 cycles 100 - 10
- Ambient temperature °C: -10...+55
- Protection category IP40
