Wimex medium voltage 24kV 16A 63kA fuse 5527516H
WIM 5527516H
8025241173933
Wimex medium voltage fuse with the following characteristics:
- Rated voltage 24kV
- Rated current 16A
- Breaking capacity 63kA
- High breaking capacity
- High current limited
- Low interrupting voltage
- Fast interruption fault currents
- Made of low-aging materials
High interrupting power limiters for indoor or outdoor combined use with striker. Suitable for protecting both motors and transformers at low or medium voltage.
Wimex medium voltage 24kV 16A 63kA fuse 5527516H
€51.58
Tax included
€51.58
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 12
In this section of the catalog are gathered, alongside the MV Fuses, all those devices necessary for the operation, actuation, maintenance and safety inside the substations (or, more generally, on board the installations) of medium voltage therefore where the high voltage taken from the power lines is fed in and then arrives at the LV final transformer substations.
Complies with CEI 32-3, IEC EN 60282-1 VDE 0670-4, UNEL 06715 DIN 43625.
There are no reviews

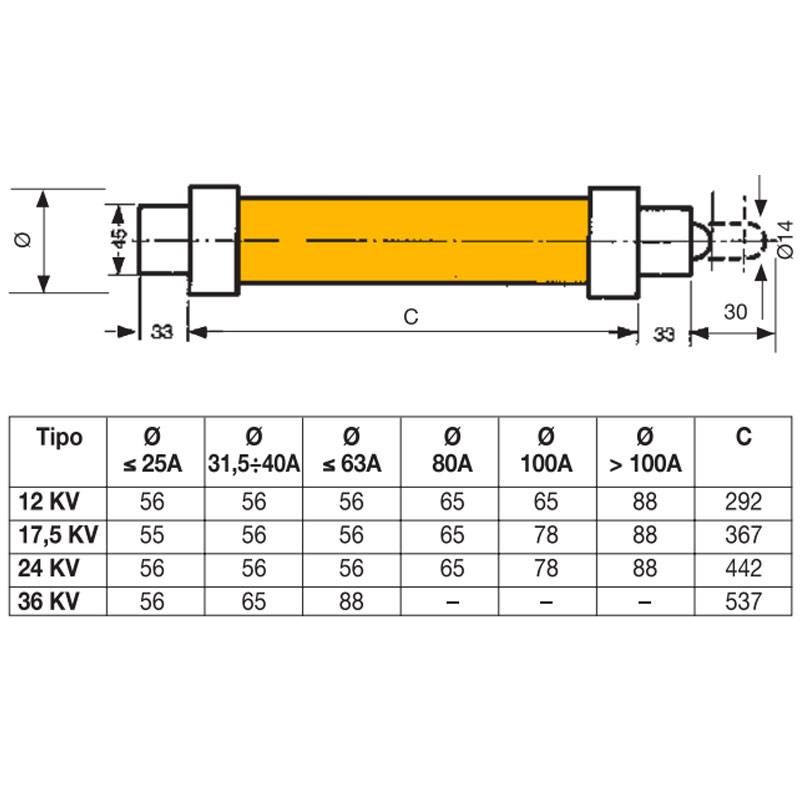

Data sheet
- Diameter:
- 55mm
- Type:
- Medium voltage fuses
- Voltage:
- 24KV
- Power:
- 63KA
- Amps:
- 16A
- Material:
- Ceramic
