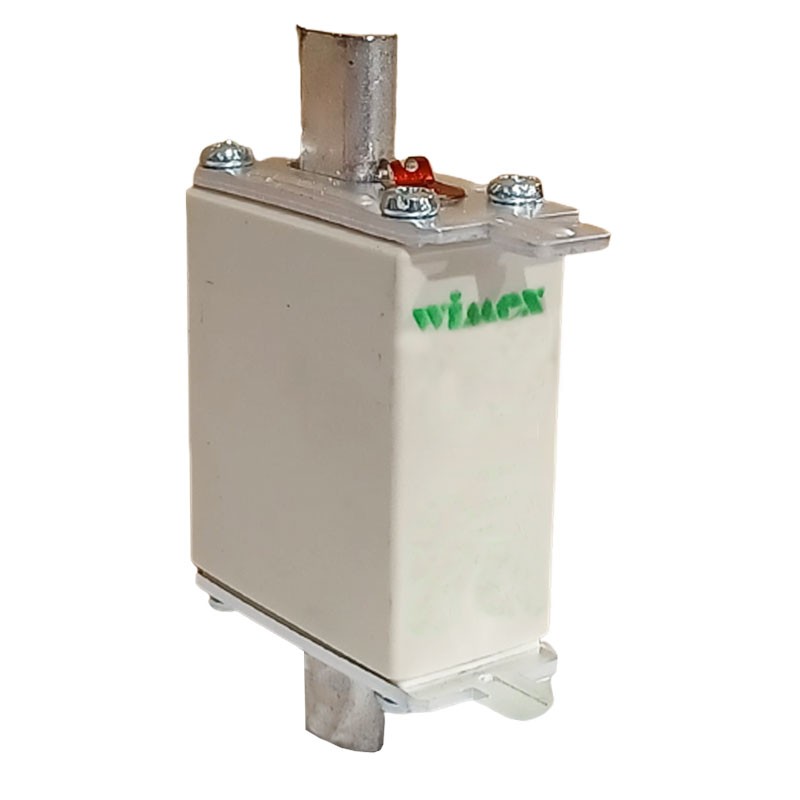

Wimex NH aM Standard low-dissipation fuse 63A 5505063
WIM 5505063
Wimex NH aM Standard low-dissipation fuse, 63 Amps, 690V, 100KA.
NH fuses with operating class aM are used especially for motor protection, and unlike the gG types, are capable of interrupting only currents between a certain overcurrent value and that corresponding to its interrupting power value.
Wimex NH aM Standard low-dissipation fuse 63A 5505063
€4.58
Tax included
€4.58
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 9
NH fuses with operating class aM are used especially for motor protection, and unlike gG types, they are capable of interrupting only currents between a given value of overcurrent and that corresponding to its interrupting power value.
This feature is essential when high inrush currents are involved. However, the use of additional protective devices (e.g., thermal overload relays) in back-up is recommended for the protection of overcurrents below Kln. Special solutions adopted on NH aM fuse strips allow high resistance against aging caused by motor heating processes.
There are no reviews
Data sheet
- Type:
- Blade fuses
- Voltage:
- 690V
- Power:
- 100KA
- Amps:
- 63A
- Material:
- Ceramic
