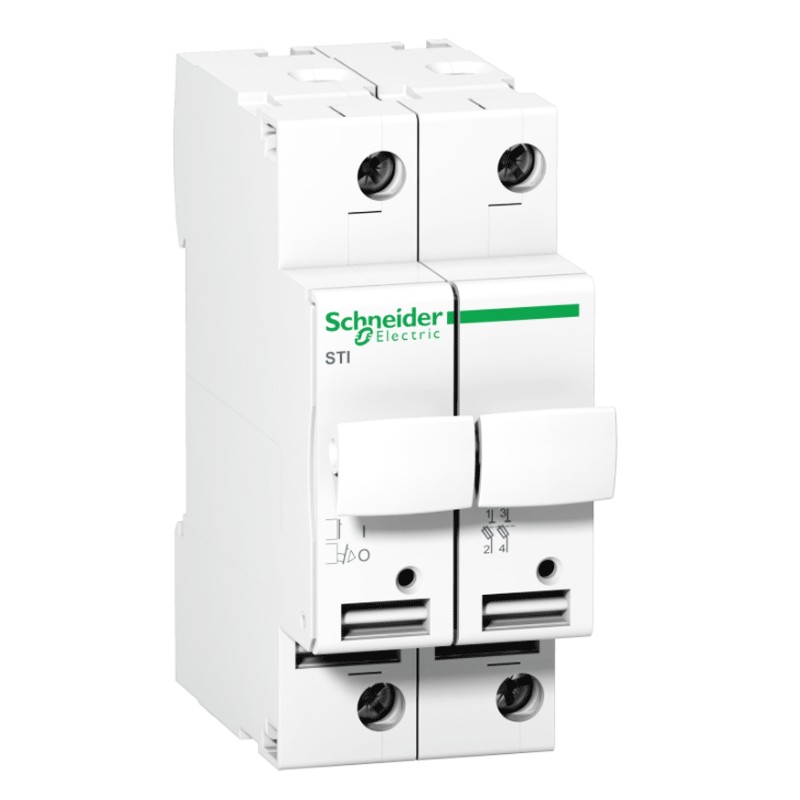

Schneider fuse holder 2P 32A 10.3X38 2 modules A9N15651
SNR A9N15651
1360648061955
Schneider fuse holder, with the following characteristics:
- Rated current [In] 32A
- Fuse curve AM GG
- Fuse gauge 10.3 x 38 mm
- Rated operational voltage [Ue] 500 V "AC".
- Rated insulation voltage [Ui] 500 V "AC" "50/60 Hz".
- 2 poles
- 2 modules
Schneider fuse holder 2P 32A 10.3X38 2 modules A9N15651
€15.73
Tax included
€15.73
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 278
Pay in installments with Klarna
Frequently bought together
Features:
- Schneider Series
- Rated current [In] 32A
- Fuse curve AM GG
- Fuse gauge 10.3 x 38 mm
- Rated operating voltage [Ue] 500 V "AC
- Rated insulation voltage [Ui] 500 V "AC" "50/60 Hz".
- Mounting method coupling
- 2 poles
- 2 modules
- DIN rail mounting bracket
- Steps 9 mm 4
- Height 81 mm
- Width 36 mm
- Depth 75 mm
- Colour white
Connections/terminals
- Screw terminals1 cable 0.75...10 mm² rigid
- Screw terminals1 cable 0.5...6 mm² flexible
- Screw terminals2 cables 0.75...4 mm² rigid
- Screw terminals2 cables 0.5...6 mm² flexible
- Wire stripping length 12 mm
- Tightening torque 2 Nm
- Degree of protection IP20
- Pollution degree 3
- Operating ambient temperature -20...60 °C
- Storage temperature -40...80 °C
Data sheet
- Type: Fuse holder
- Size: 10.3X38
- Voltage: 500VAC
- Modules: 2
- Poles: 2P
- Amps: 32A
