Electronic board Faac E844 3PH 400v ac 202073
FAA 202073
8055195052985

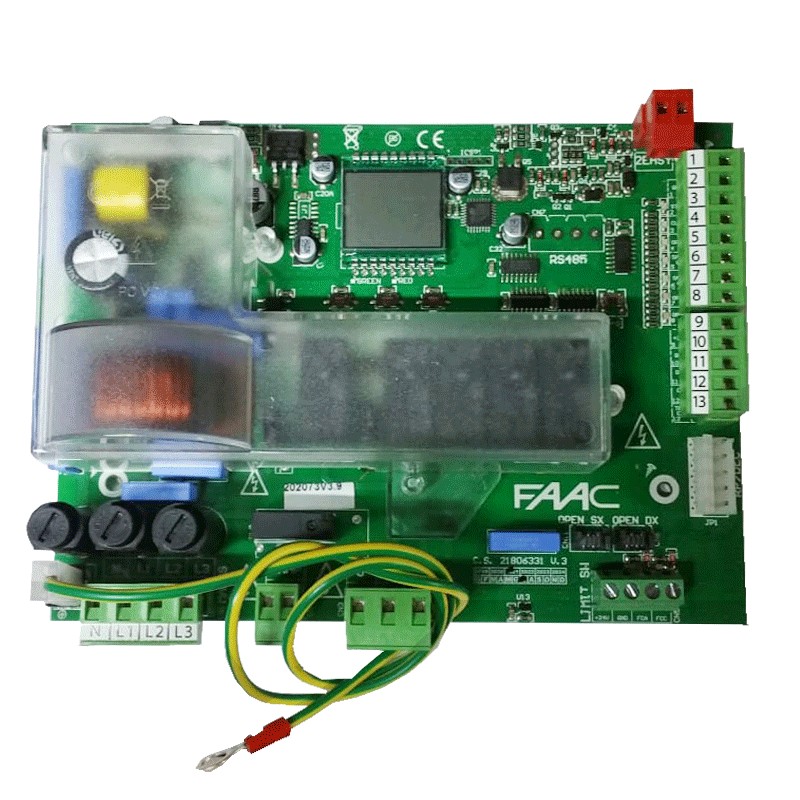

Faac E844 3PH electronic board for Faac sliding automations. Replaces the old electronic boards 884T 202254 and 844T 790862.
Electronic board Faac E844 3PH 400v ac 202073
€434.76
Tax included
€434.76
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 4
: 2
Pay in installments with Klarna
Features:
- Mains supply voltage: 230V~ 3PH (+6% -10%) - 400V~ 3PH+N (+6% -10%)- 50 (60) Hz
- Max power 3W
- Max motor power 1500W
- Max flashing load 230 V ~ 60W max
- Operating ambient temperature -20 °C ÷ +55 °C
- Stop space with 844 R 3PH: 8 cm
- Stop space with 844 MC 3PH: 8 cm
- Programmable functions
- Logic (E, EP,A , AP, S, b, C), Pause Time, Partial Pause Time, Failsafe, Soft start, Pre-switch slowdown, Obstacle detection sensitivity by encoder, Partial opening width, Output configuration1, Output configuration2, Pre-lighting
- Terminal inputs: Open, Partial open, Opening safeties, Closing safeties, Limit switches, Priority open, Priority close
- Terminal board outputs: flashing light, motor, accessories
Max. accessory load
- 24 V 500 mA
- Bus 2easy 500 mA
There are no reviews
Data sheet
- Type: Electronic Cards
