Faac electronic card remote control installation 790922

Brand: Faac

Cod: FAA 790922 EAN: 8055195013191

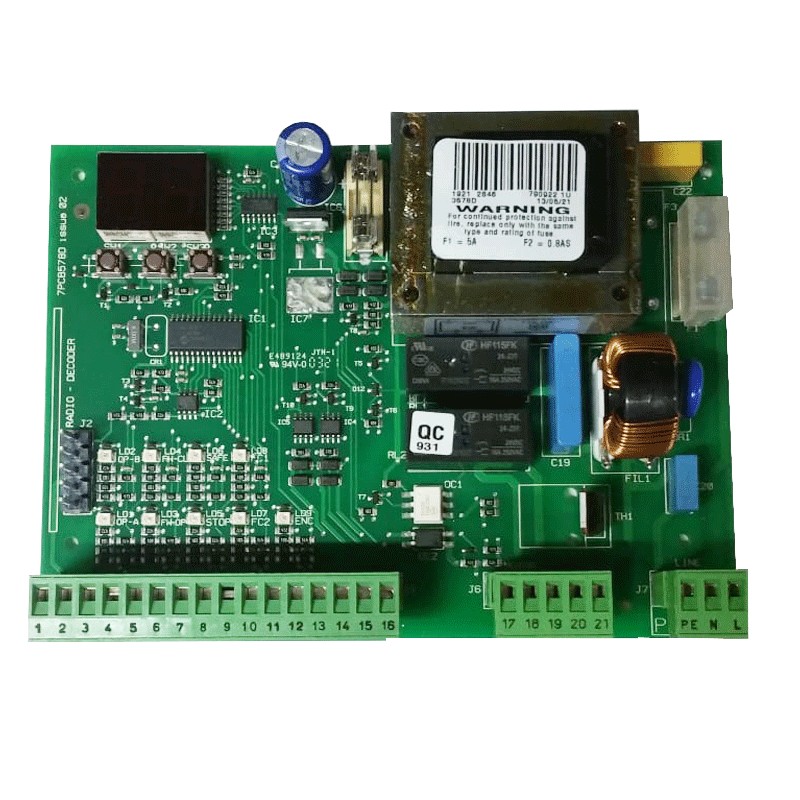

Faac 578D electronic board, remote installation for 230V gearmotor.

Installation in separate box

Replaces the old 844 MPS board

€257.97 Tax included

€257.97

€257.97
Tax included

EXTRA

Add the coupon code in the payment page

Limited-time promotion

Items Available: 4

Pay in installments with Klarna

Two-year warranty

Easy return within 14 days

Are you a professional ?

Request access to

Features:

Type of power supply: Integrated
Supply voltage: 230V ~ (+6%-10%) 50(60) Hz
Max power: 10W
Max motor power: 1.000W
Max accessory load: 0,5A
Programming mode: Nr. 3 keys (+, -, F) and display, 'basic' and 'advanced' mode
Status indication: On display
Operating logics: Automatic, Automatic 'step', Semiautomatic, Semiautomatic 'step', Safety, Semiautomatic B, Man present C, Mixed logic B / C
Programmable functions: Logic of operation, Pause time, Thrust force, Direction of opening/closing, Starting torque, Braking, Failsafe, Pre-flashing, Warning light, Timed output, Electric lock in opening/closing, Safety logic in opening and closing, Encoder, Anti-crushing sensitivity, Slowdown, Partial opening time, Working time, Assistance request, Cycle counter
Working time: Programmable (from 0 to 4 minutes)
Pause time: Programmable (from 0 to 4 minutes)
Motor force adjustment: Adjustable on 50 levels
Terminal inputs: Open, Partial open, Opening safeties, Closing safeties, Stop, Coast, Power supply + ground, Limit switches open and ch, Encoder
Terminal board outputs: Blinker, Motor, 24V accessory power supply, 24V indicator lamp, Timeout_|r|_, Electric lock command, Traffic light, Failsafe
Quick connector: Plug in to 5-pin boards, MINIDEC, DECODER or RP receivers
Protection fuses: 2
Working environment temperature: -20°C ÷ +55°C
Enclosure compatibility: Mod. E - L - LM
