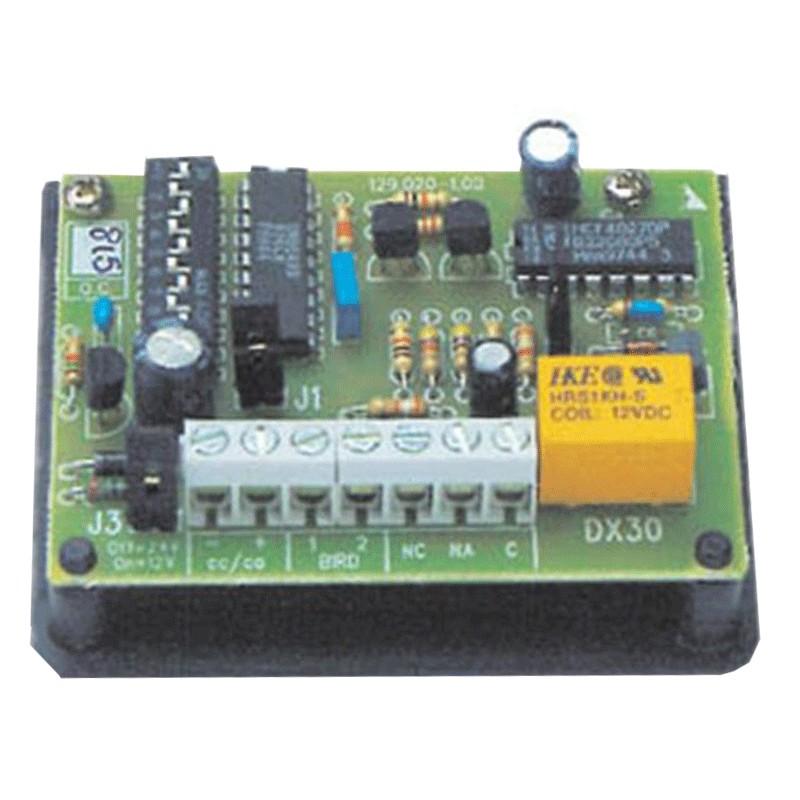

Hiltron single channel bistable decoder board for Bird Dx30 antenna
C1A DX30
8056450412117
Hiltron single channel/multifunction bistable decoder board for Bird antenna, and Twin radio controls.
Hiltron single channel bistable decoder board for Bird Dx30 antenna
€33.29
Tax included
€33.29
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 5
Pay in installments with Klarna
Frequently bought together
The DX30 is a multifunction antenna decoder with BIRD receiver equipped with an output relay driven by the two buttons (channels A and B) of the TWIN radio control. It is possible to set the relay operation in bistable or ON/OFF (step-by-step) modes.
Features:
- Operation: bistable, 1 channel step-by-step
- Combination of possible codes: 1024
- Rated supply voltage: 12V / 24V
- Maximum absorption: 50mA
- Relay output :14mA @ 12Vdc with BIRD connected
- Dimensions: width 77 mm - height 67 mm
- Reception on both channels A and B of TWIN remote control
Installation method:
Use a two-conductor cable + shield (type 2S) to connect the BIRD antenna to the DX30 terminal block, respecting connections "1" and "2". It is recommended not to run this cable to the BIRD antenna together with other cables.
Data sheet
- Type: Cards Receivers
