Gebo pipe repair collar Diameter 32-37 mm L 75 mm 50.01.032037.0
GBO 50.01.032037.07

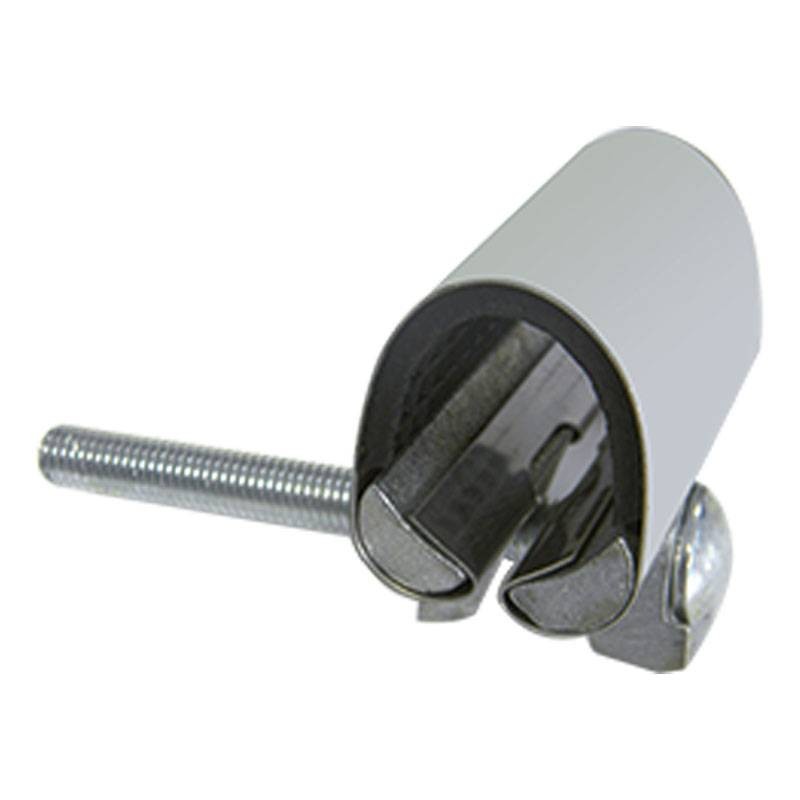

Gebo Unifix Mini pipe repair collar with the following features:
- Diameter: 32-37 mm
- Width: 75 mm with a tie rod
Optimal and effective solution for quick repairs of holes, cracks and porous spots on water pipes. The collars are suitable for repairing: Steel pipes, Cast iron pipes, Stainless steel pipes, Copper pipes and for temporary repair of: PE pipes, PVC pipes, Pipes with plastic connection.
Gebo pipe repair collar Diameter 32-37 mm L 75 mm 50.01.032037.0
€6.15
Tax included
€6.15
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 87
: 4
Pay in installments with Klarna
For quick repair of holes, cracks and porous spots on pipes with a smooth surface. The gasket has a honeycomb structure for better fit and adhesion to the pipe, which may have a marred surface. Installation of the collar in tight situations is still easy.
Features:
- Operating pressures: Water PN 10; Operating temperature: Water from -10°C to 60°C
- Stainless steel band, nut and bolt and cast iron clamp
- Gasket glued on the inner surface
- Easy assembly
Preparation:
- Clean the hose and remove dirt and other debris
- Check that the diameter of the pipe matches the range of the collar
- Wet the tube and rubber gasket with soap and water to facilitate insertion
- Unscrew the nut to the end of the tie rod
Installation:
- Unscrew the nut to the end of the tie rod
- Place the collar on the pipe and attach the stainless steel band. Make sure that the breaking point of the pipe is completely covered by the seal and that there is a margin of at least 20 mm around the entire perimeter
- Tighten the nut with a torque of approx. 20 Nm, wait 15 minutes and re-tighten. After the repair is complete, carry out a pressure check
Data sheet
- Type: Collars
- Material: Cast iron
