Gewiss switchboard 10 modules with 4 flanges for industrial sockets GW68204N
GEW GW68204N
8011564749689

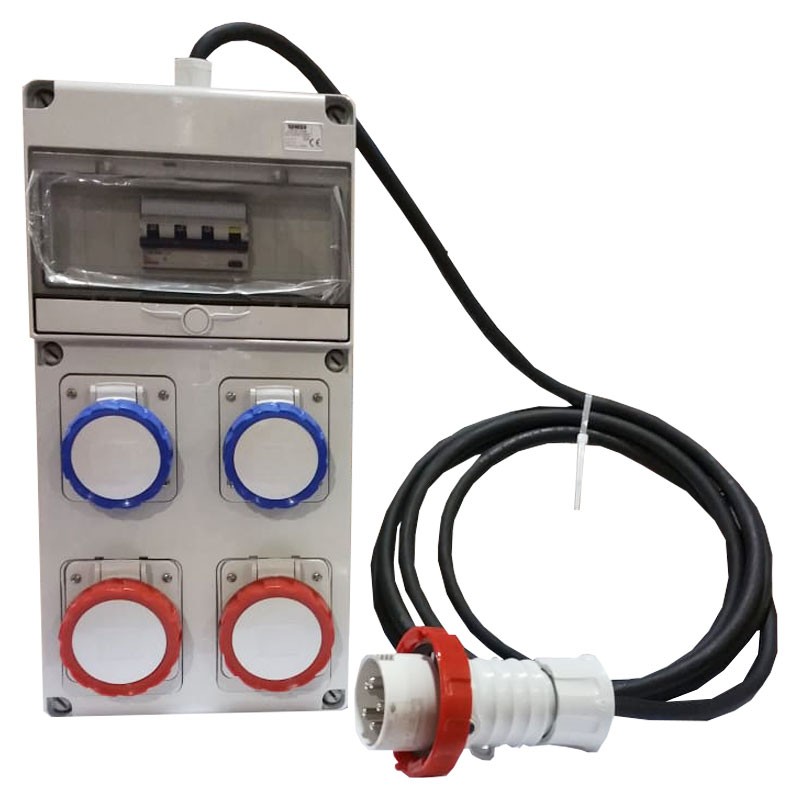

Gewiss wired control panel, 10 modules with 4 vertical IB flanges for industrial sockets. With cable and plug, portable and mobile article.
Gewiss switchboard 10 modules with 4 flanges for industrial sockets GW68204N
€373.65
Tax included
€373.65
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 3
Pay in installments with Klarna
Features:
- Gewiss Series
- Typology: Q-DIN 10 ASC
- External dimensions BxHxP (mm): 220x435x96
- Weight: 4 Kg
- Regulatory compliance: EN 61439-4 (ASC)
- UV resistance (EN 62208)
- Degree of protection: IP65
- Impact resistance: IK09
- Glow wire test: 650 °C
- Thermopressure with ball 70 °C
- Insulation class II

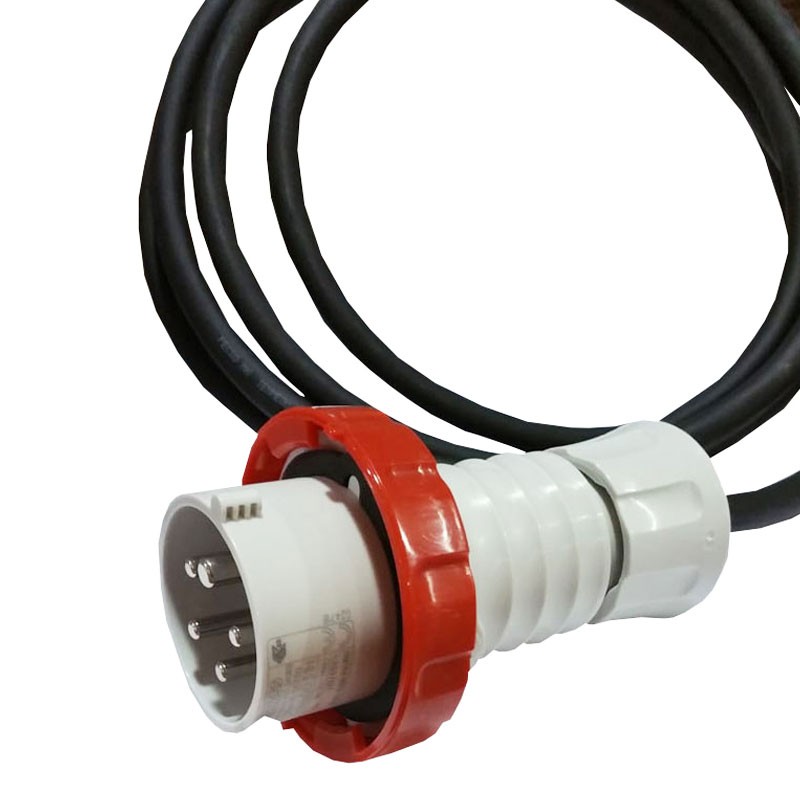

- Power supply: mobile plug
- Number of poles: 3P+N+T
- Power output (kW) 8

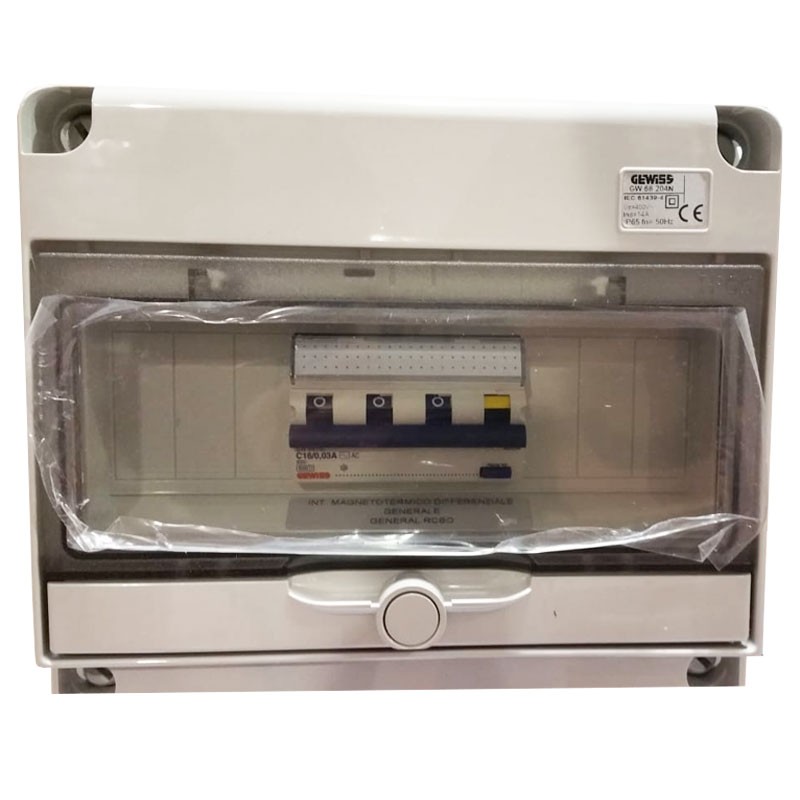

- Main switch: Differential magnetothermal 16A 4P 6 kA 0,03A - AC type
- Protection of MDC users
- Number of sockets 4

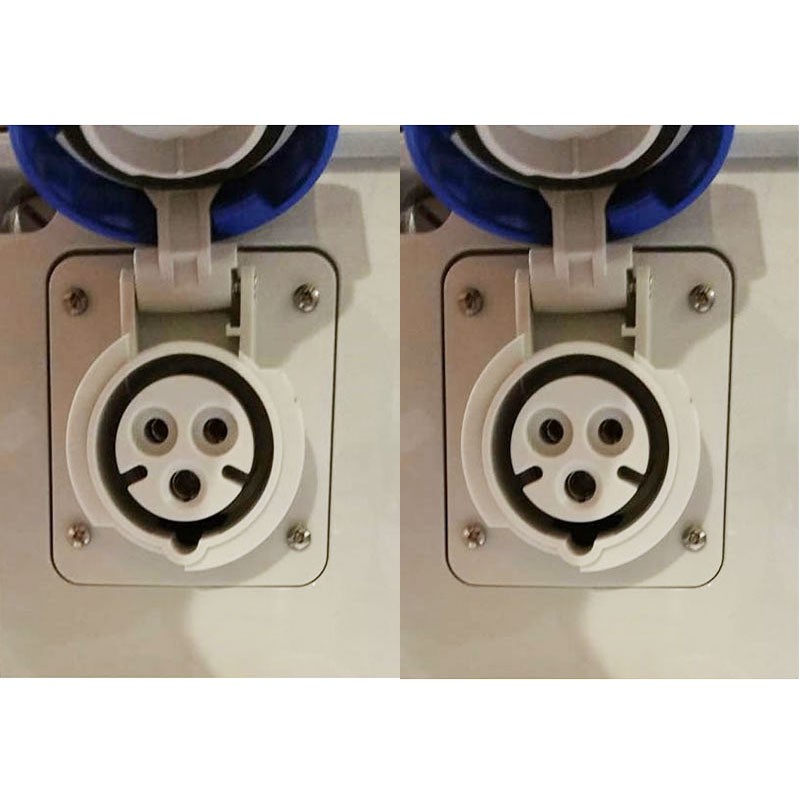

- 2 sockets 2P+E 16A - IEC 309

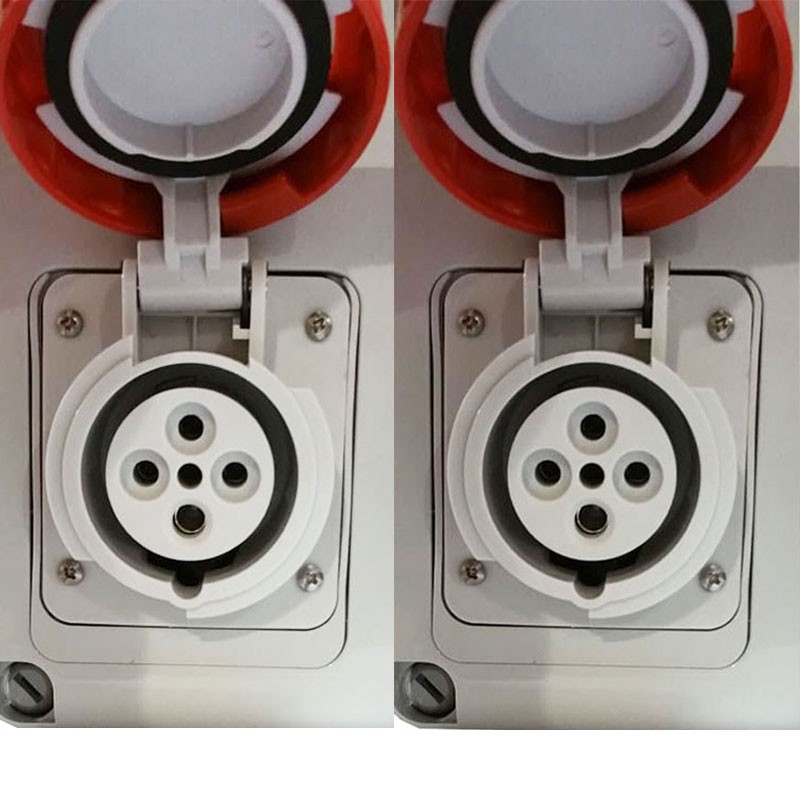

- 2 sockets 3P+E 16A - IEC 309
- Cable length: 4 meters
- Electrocod code: 139
- Ware number 85371098
There are no reviews
Data sheet
- Type: Frameworks for distribution
- Degree of protection: IP65
- Installation: Wall-mounted
