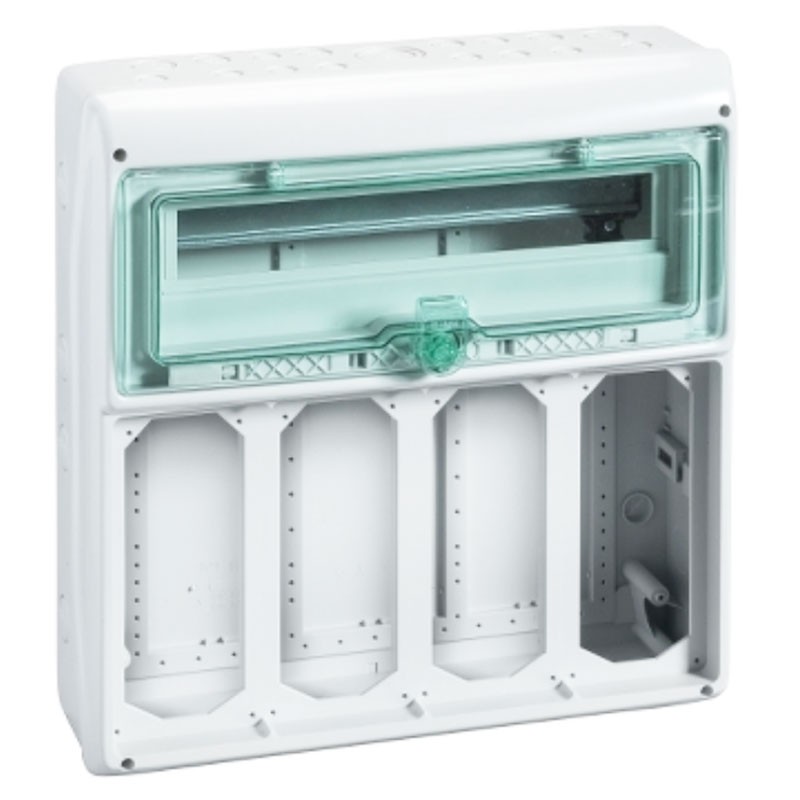

Schneider industrial switchboard 18 modules 4 interlocked sockets 10373
SNR 10373
Schneider Kaedra industrial switchboard, with the following features:
- 18 modules
- Power dissipation 34W
- Rated current 90A
- Guide type: DIN
- Degree of protection IP65 according to IEC 60529
Schneider industrial switchboard 18 modules 4 interlocked sockets 10373
€112.85
Tax included
€112.85
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 7
Pay in installments with Klarna
Features:
- Schneider Series
- Type of product or component: Sealed enclosure
- Hand control model: Enclosure for sockets and plugs
- Without mounting plate
- Mounting: Surface
- Number of horizontal rows: 1
- Insulation Class: Class II - Double Insulation
- Number of interface openings: 4
- Front panel type: Transparent
- Enclosure material: Self-extinguishing polymer
- Base dimensions: 103 x 225 mm
- Dimensions: width 448 mm - height 460 mm - depth 160 mm - internal depth 91 mm
- Color: Door: transparent green - Enclosure: light gray (RAL 7035)
- Reference standards: EN 50102 - IEC 60695-2-1 - IEC 60439-3 - IEC 670 - IEC 60529
- Fire resistance: 650 °C in accordance with IEC 60695-2-1
- Degree of protection IP65 in accordance with IEC 60529
- Degree of protection IK09 in accordance with EN 50102
- UV resistant: class 3 in accordance with ISO 4582:2010
- Ultraviolet degradation test in accordance with ISO 4892-2:2013
- Overvoltage category: II
- Operating ambient temperature: -25 +60 °C
There are no reviews
Data sheet
- Type: Frameworks for distribution
- Degree of protection: IP65
- Installation: Wall-mounted
