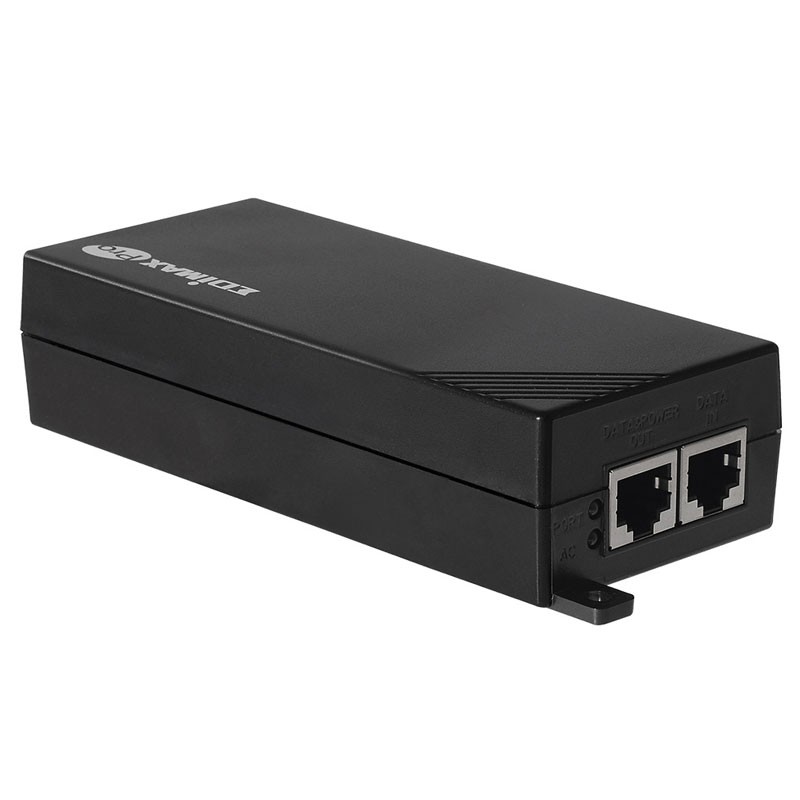

Edimax Injector and Power Supply for PoE devices on Ethernet network GP-101IT
22O GP-101IT
4717964700827
Edimax 30W IEEE 802.3at Injector and Power Supply with the following features:
- Compliant with IEEE 802 3af and IEEE 802.3at Power over Ethernet (PoE+) standard.
- Adds PoE functionality to non-PoE Ethernet switch or router
- Gigabit LAN ports provide high-speed connectivity
- Supports Power Sourcing Equipment (PSE) PoE devices up to 30W
- PoE short circuit protection to safeguard network devices
- Supplies power and data to PoE devices from up to 100 meters (328 feet) over a single Ethernet cable
- Reduces installation and equipment costs
- Easy plug-and-play desktop or wall-mount installation
Edimax Injector and Power Supply for PoE devices on Ethernet network GP-101IT
€39.03
Tax included
€39.03
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 24
Pay in installments with Klarna
The Edimax GP-101IT is a Power over Ethernet injector that not only offers a cost-effective solution for power distribution, but also enables seamless integration into existing LAN infrastructure. Thanks to the power injectors, up to 30 W AC power and data from a non-PoE switch or router can be transferred to IEEE 802.3at/af compliant products such as PoE dome cameras via Ethernet cabling. This avoids an investment in new hardware components such as additional PoE switches.
By adding the capabilities of the IEEE 802.3at/af Power over Ethernet standard to the non-PoE Ethernet switch or router the GP-101IT can be directly connected with any IEEE 802.3at/af end node such as PTZ (Pan, Tilt, Zoom) network cameras, PTZ speed-dome cameras, Voice over IP (VoIP) color touch-screen telephones and multi-channel wireless LAN access points that support IEEE 802.3at/af in-line Power over Ethernet port.
Power over Ethernet technology enables both data and power over the Ethernet cable. Therefore, the GP-101IT decreases the need for cable installation and eliminates the need for extension cords or electrical outlets on the wall, ceiling, or any other hard-to-reach place. Overall, it reduces installation costs and simplifies distribution integration.
PoE short circuit protection function to safeguard network devices and protect against damage.
Features:
HARDWARE

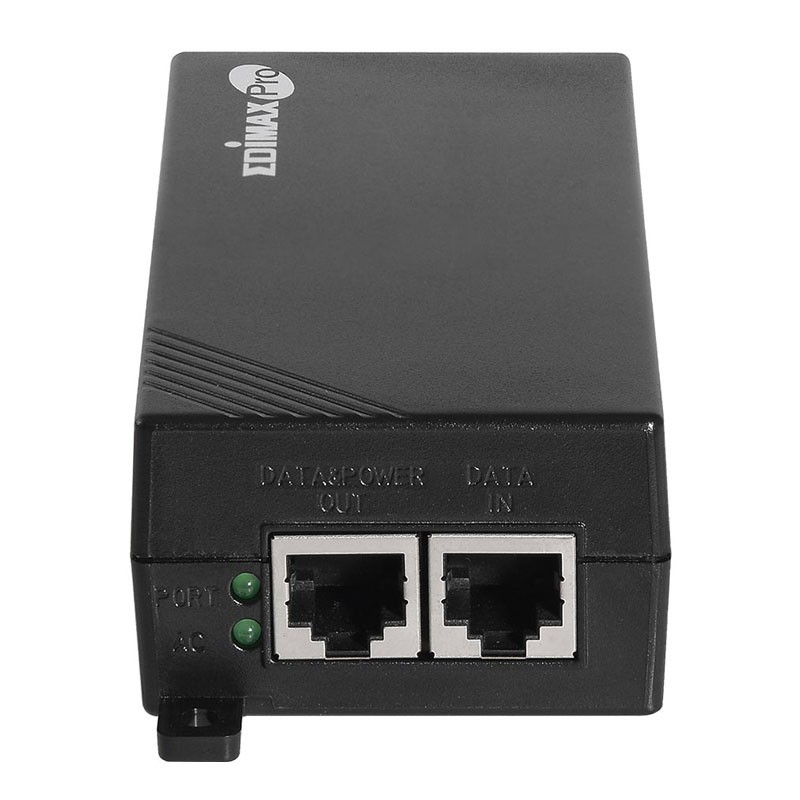

- Ports 1 RJ-45 10/100/1000Base-T port as input port - 1 RJ-45 10/100/1000Base-T PoE port as output port
- Power and AC LED Indicators

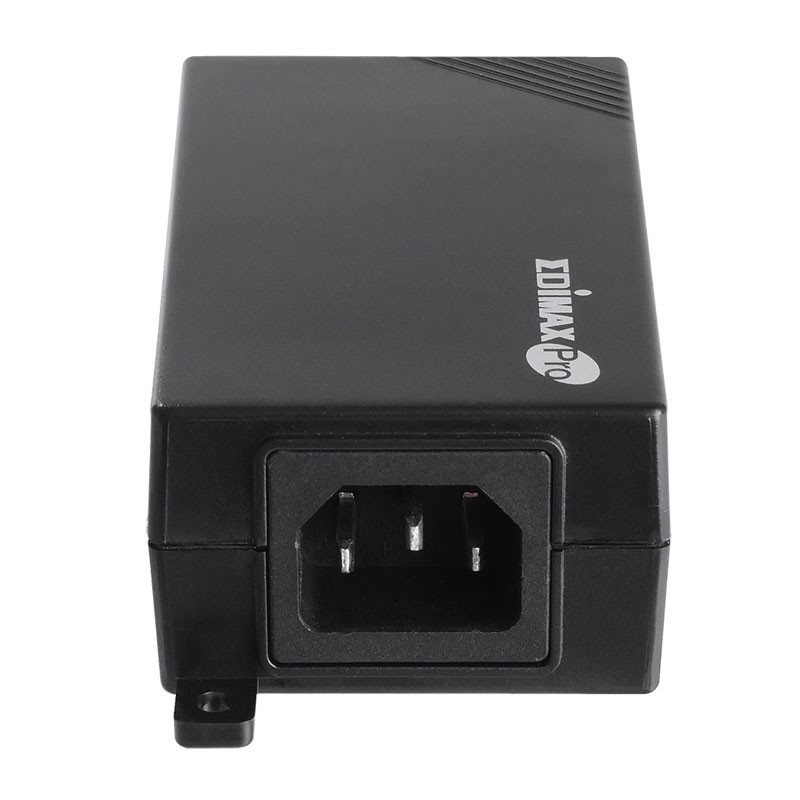

- Power input 100-240V AC, 50-60 Hz, 0.6A
- Power Consumption 30 Watts
- Dimensions (W x D x H) 155 x 58 x 36 mm
- Weight 185g
POWER OVER ETHERNET
- Standards IEEE802.3af and IEEE802.3at
- Electrical Power DC53V/0.55A
- Pin Assignment 4/5(+), 7/8(-) Mids-Span (Mode B).
PACKAGE CONTENTS
- PoE Injector GP-101IT
- Power Cable
- Quick Installation Guide
There are no reviews
Data sheet
- Type: Power supplies
