Finder Level Control Relay with two Unipolar Probes 24VAC 720180240000PQA
FIN 720180240000PQA
8012823378220

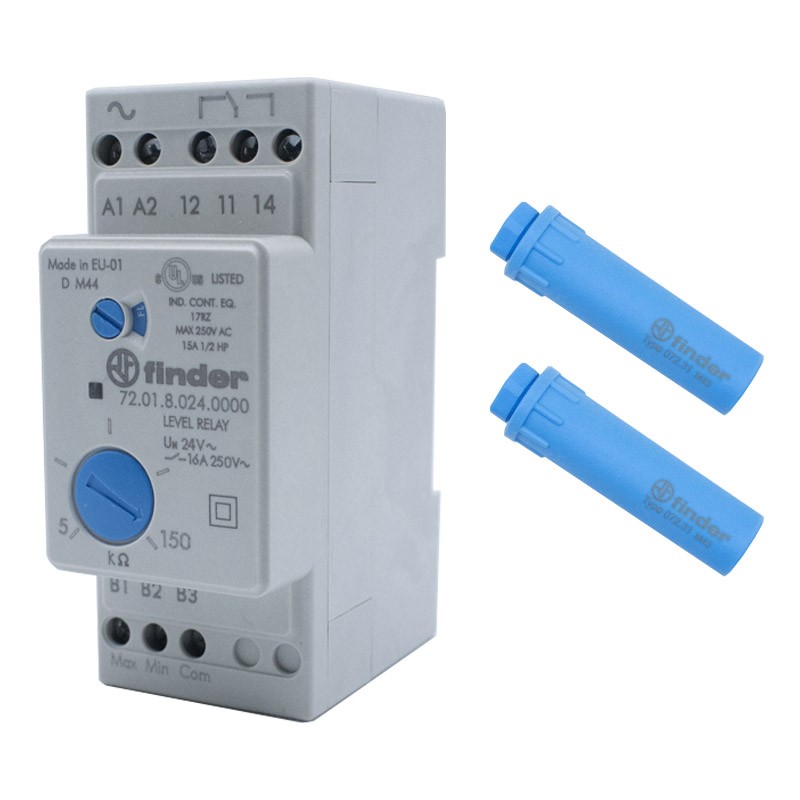

Finder Kit Composed by:
- 1 Level control relay 24V (720180240000)
- 2 Unipolar probes (07231).
Finder Level Control Relay with two Unipolar Probes 24VAC 720180240000PQA
€66.68
Tax included
€66.68
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 10
: 1
Features Level control relay:
- Adjustable sensitivity (5150)k
- Switching delay selectable (0.5 s or 7 s via selector)
- Fill or empty function selectable via selector switch
- Contact configuration 1 switch
- Current rating/Max instantaneous current 16/30A
- Nominal voltage/Max switching voltage V AC 250/400
- Nominal load in AC1 4000VA
- Rated load in AC15 (230 V AC) 750VA
- Single-phase motor capacity (230 V AC) 0.55KW
- Minimum switching load mW (V/mA 500 (10/5)
- Nominal supply voltage (UN) AC V (50/60 Hz) 24VDC
- Rated power AC/DC VA (50 Hz)/W 2.5/1.5
- Operating range V AC (50/60 Hz) 19,226.4
- Sensor voltage V AC 4
- Sensor current mA 0.2
- Trip delay 0.5 - 7 seconds (selectable)
- Maximum sensitivity 5150 (adjustable)
- Ambient temperature 20+60
- Protection category IP20.
