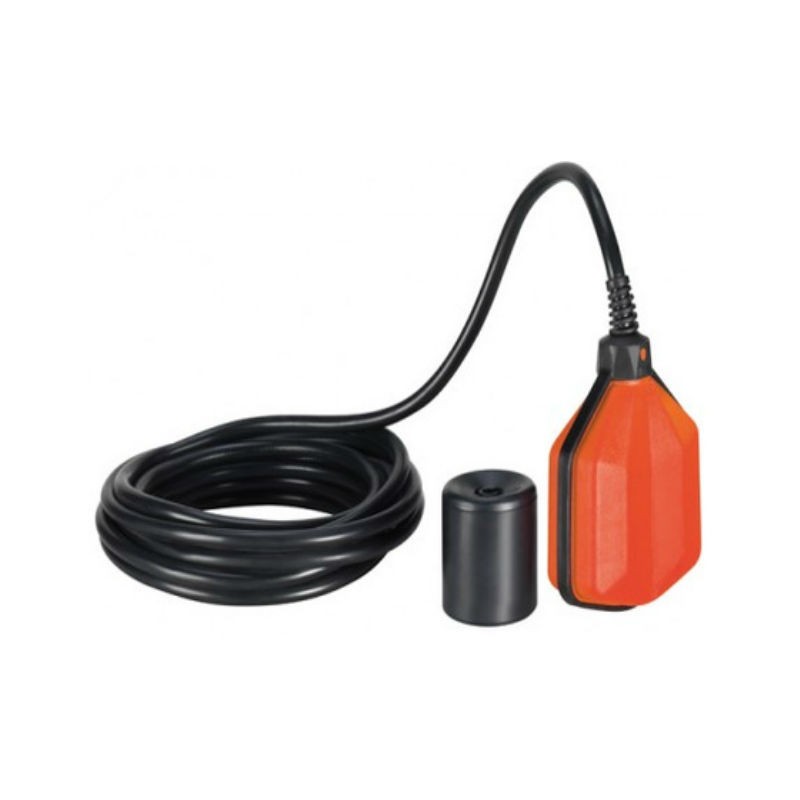

Lovato 3 Meters PVC Float Level Regulator LVFSP1W03
LOV LVFSP1W03
8013975222195
Lovato graywater float level regulator with the following characteristics:
- Rated operating voltage AC (IEC): 250 Vac
- Function: emptying or filling
- Counterweight: external (supplied with the float switch)
- Activation angle: 45°
- Number of relays: 1
- Contact arrangement: 1 C/O-SPDT changeover contact
- Contact ratings: AC1 10A 250VAC AC15 8A 250 Vac
- Contact rating: AC1 10A 250VAC AC15 8A 250VAC
- Maximum cable length: meters/feet 3
Lovato 3 Meters PVC Float Level Regulator LVFSP1W03
€15.23
Tax included
€15.23
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 4
: 1
Pay in installments with Klarna
Other technical features:
- Operating temperature: max +50°C
- Storage temperature: max +80°C
- Maximum operating pressure: bar 3
- Maximum installation depth: m 30
- Cable material: PVC A05 VV-F3X1
- Float case material: polypropylene
- IEC degree of protection: IP68
- Weight: 610 grams
Data sheet
- Type: Flush valves
