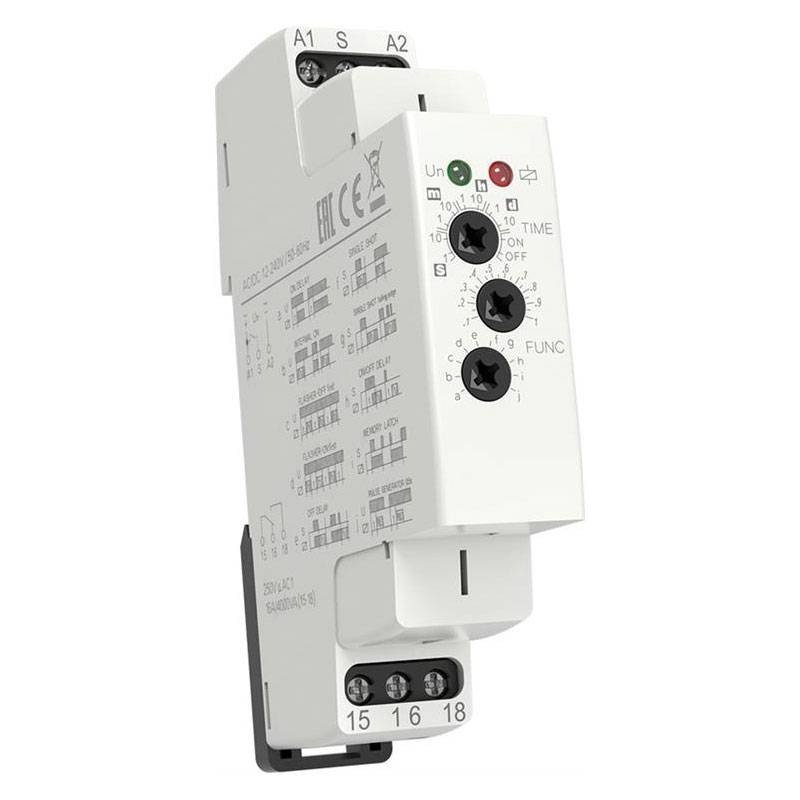

Perry 12-240 V multifunction timed relay DIN connection 1RT80MTMF
PER 1RT80MTMF
8019108028078
Perry multifunction timed relay for universal use in automation, control, and regulation or home systems with the following features:
- Supply voltage: AC/DC 12-240 V
- Power consumption (max): 2 VA / 1.5 W
- Rated current 16 A / AC1
- Switching voltage 250V AC/24V DC
- Power indication: green LED
- Usage: domestic, tertiary, industrial
- Bar installation type: DIN
- Degree of protection: IP20/IP40 back panel
Easy and well-organized function interval setting with rotary switches. Multi-function red LED flashes or lights up according to the operating status.
Perry 12-240 V multifunction timed relay DIN connection 1RT80MTMF
€32.53
Tax included
€32.53
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 108
: 16
Power supply:
- Power supply terminals: A1 - A2
- Supply voltage: AC/DC 12-240 V (AC 50/60 Hz)
- Power consumption (max): 2 VA / 1.5 W
- Voltage tolerance: -15% +10%
Function:
- Timing: 0.1 s - 10 days
- Switch and potentiometer setting
- Time tolerance 5% on mechanical setting
- Repetition accuracy 0.2% on set value
Outputs:
- Type outputs 1 changeover contact
- Rated current: 16 A / AC1
- Interrupting capacity: 4,000 VA/AC1, 384 W/DC
- Switching voltage: 250V AC/24V DC
- Power dissipation (contacts) max: 1.2 W
- Multi-function red LED output indication
- Electrical life 50,000 operations
- Mechanical life 10,000,000 operations
- Pulse duration: min 25ms / max unlimited
- Reset time: max 150 ms
Other information:
- Dielectric strength: 4,000 Vac
- Max. wire cross-section at terminals 1 x 2.5 or 2 x 1.5 sq. mm, 1 x 2.5 sq. mm with lug
- Operating temperature -20 to 55°C
- Storage temperature -30 to 70°C
- Pollution degree 2
- Overvoltage category III
- Dimensions: 17.6x64x90 mm (WxDxH)
- Weight 62 grams
There are no reviews
Data sheet
- Type:
- Timers
- Version:
- Multifunction
- Installation:
- Din
