Perry timer light staircase connection Din 1IT1062
PER 1IT1062
9000004946527
Perry staircase light timer, with the following features:
- Power supply 230V~ +/- 10%, 50 Hz
- Relay output 1 N.O. polarized contact 16A / 250V
- Adjustable timing from 30 seconds to 20 minutes
- Din connection

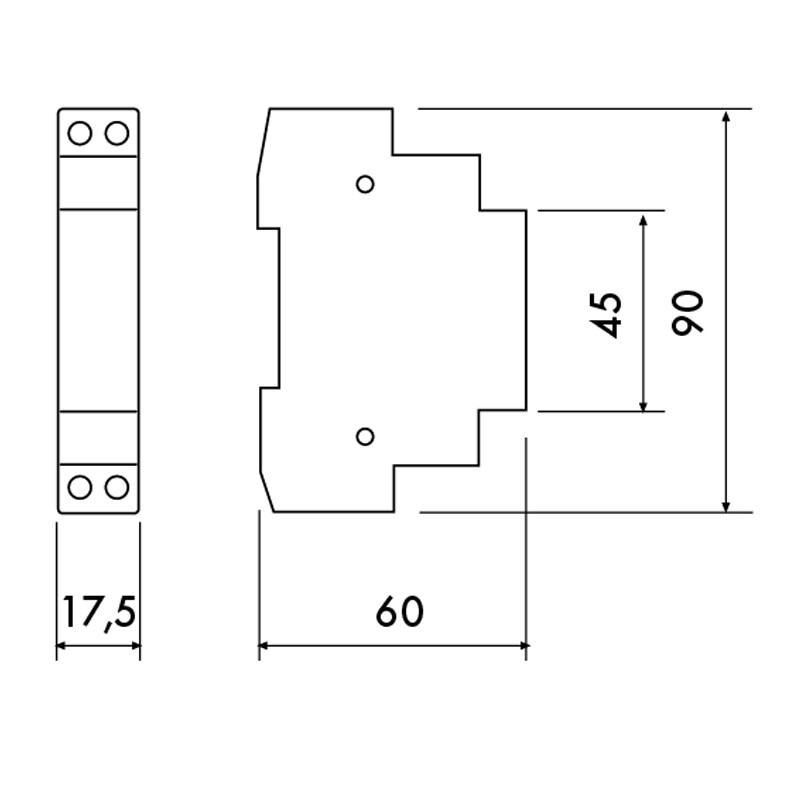

- Dimensions (WxDxH) 17.5 x 60 x 90 mm
Perry timer light staircase connection Din 1IT1062
€24.84
Tax included
€24.84
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 73
: 1
Features:
- Perry Series

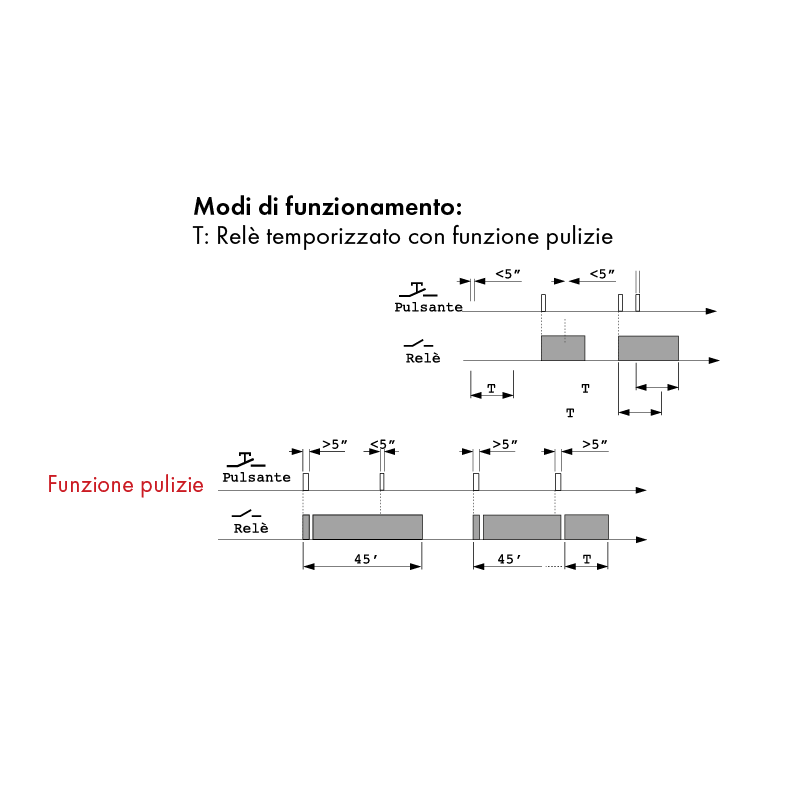

- Possibility of activating the "stair cleaning" function
- Cable section at terminals 1 mm² ÷ 6 mm²
- Degree of protection IP20
- Operating temperature limits - 10°C to +55°C
- Storage temperature limits - 20°C ÷ +65°C DIN rail installation
- Maximum current absorbed by luminous buttons 150 mA with overload protection
- Reference standards for LVD/EMC marking EN60669-2-3 EN60669-2-1
There are no reviews
Data sheet
- Type:
- Timers
- Version:
- Lights scale
- Installation:
- Din
