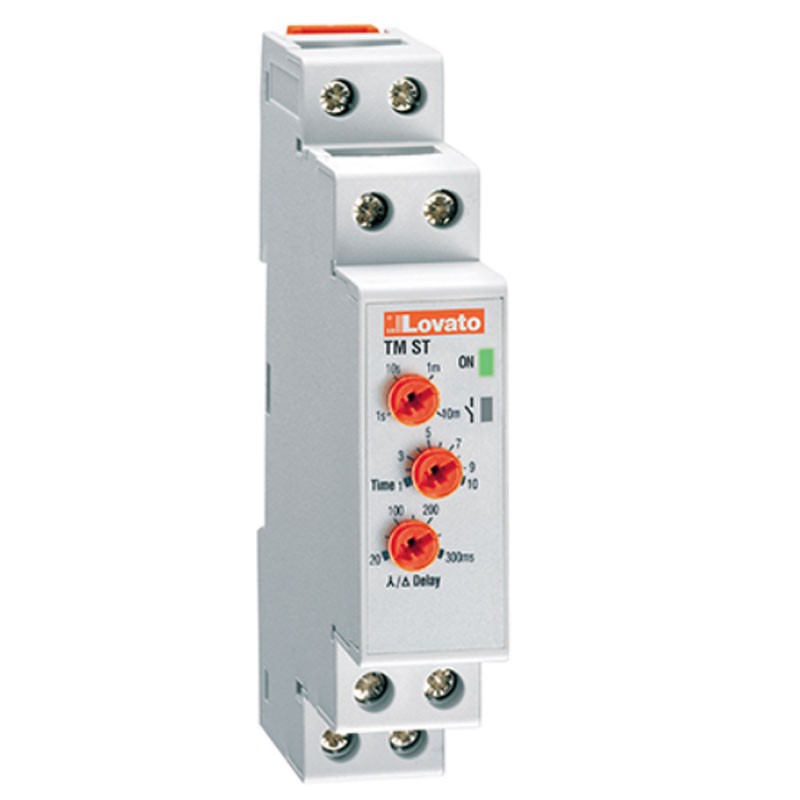

Lovato multiscale starter timer 24-48VDC, 24-240VAC TMST
LOV TMST
8013975147146
Lovato's star-delta, multiscale, and multitension starting time relay with the following features:
- Function: star-delta
- Rated auxiliary supply voltage Us:24...48 V DC; 24...240 V AC
- Rated auxiliary supply voltage Us: alternating current: min 24 Vac - max 240 Vac
- Rated auxiliary supply voltage Us: DC: min 24 VDC - max 48 VDC
- Rated frequency: 50/60 Hz
- Operating voltage range: 0.85 to 1.1 Us
- Maximum power consumption/dissipation: W: 1.2 VA/0.8 W (24...48 V AC/DC), 1.6 VA/0.9 W (110...240 V AC/DC)
- Immunity time for microroughness: SM ≤40
Lovato multiscale starter timer 24-48VDC, 24-240VAC TMST
€63.01
Tax included
€63.01
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 16
: 5
Other technical features:
- Time setting range: 0.1 s...10 minutes
- Setting accuracy: % <±9
- Repeat accuracy: % <±0.5
- Influence of voltage variation: % <±0.1
- Influence of temperature variation: % <±0.2
- Reset time: during timing SM ≥100, elapsed time SM ≥50
- Number of relays: 1
- Contact arrangement: 1 with 2 NO with common pole
- Maximum switching voltage: 250 Vac
- IEC Conventional free air thermal current Ith UN 8
- UL/CSA and IEC/EN 60947-5-1 designation: B300
- Rated insulation voltage Ui: 250V
- Rated impulse withstand voltage Uimp kV 4
- Line frequency withstand voltage kV 2
- Type of terminals: screw
- Mechanical life cycles 30000000
- Electrical life (at rated load): 100000 cycles
- Operating temperature: min °C -20 - max °C +60
- Storage temperature: min °C -30 - max °C +80
- Relative humidity: % <90%
- Maximum pollution degree: 2
- Overvoltage category: III
- 1 module
- Material: self-extinguishing polyamide
- Mounting: 35mm DIN rail
- Degree of protection: IP40 on front, IP20 terminals
- Dimensions (W x H x D) mm: 17.5 x 104.7 x 64.9
- Weight: 90 grams
Tightening torque (max):
- Max. tightening torque: Nm 0.8
- Max. tightening torque: Ibin 7 / 7...9 UL
Conductor cross section:
- AWG/Kcmil: Min 24...12 - max 12...18
- IEC: min mm² 0.2 - max mm² 4
