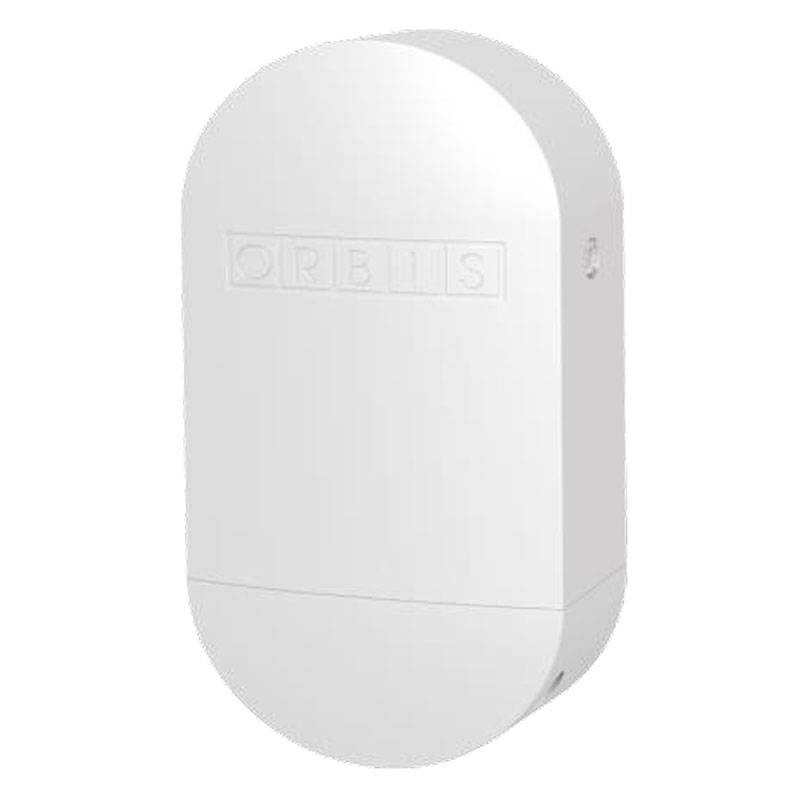

Orbis Citilux IP65 twilight switch OB131412
ORB OB131412
8426709124458
Citilux Orbis twilight switch, pole or wall mounting, allows control of a lighting system depending on the brightness of the room.
The product compares the brightness of the 'room with the preset level; if it is lower the circuit is activated, when it increases instead, the circuit is deactivated. The closing and opening of the output contact always occurs with a delay of about 60 sec. to prevent the lighting system from being activated or deactivated due to fast changes in brightness (clouds, reflections, car headlights, etc.).
Orbis Citilux IP65 twilight switch OB131412
€19.37
Tax included
€19.37
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 37
: 1
Pay in installments with Klarna
Features:
- Rated voltage: 230V
- Rated frequency: 50-60 Hz
- Contact rating: 16 A / 230 V
- Own consumption: 6.4 VA cap. (0.8 W approx.)
- Sensitivity: 3 200 Lux.
- On/off delay: 50 seconds approx.
- Operating temperature: -20 °C to +40 °C
- Type of protection: IP65 according to EN 60529
- Protection category: II according to EN 60335 under correct mounting conditions
Maximum loads:
- Incandescent: 3000 W
- Fluorescence: 1000 VA
- Low-voltage halogen: 2000 VA
- Halogen 230 V AC: 3000 W
- Low-voltage lamps: 500 VA
- LED: 500 VA
There are no reviews
Data sheet
- Type: Twilight Switches
