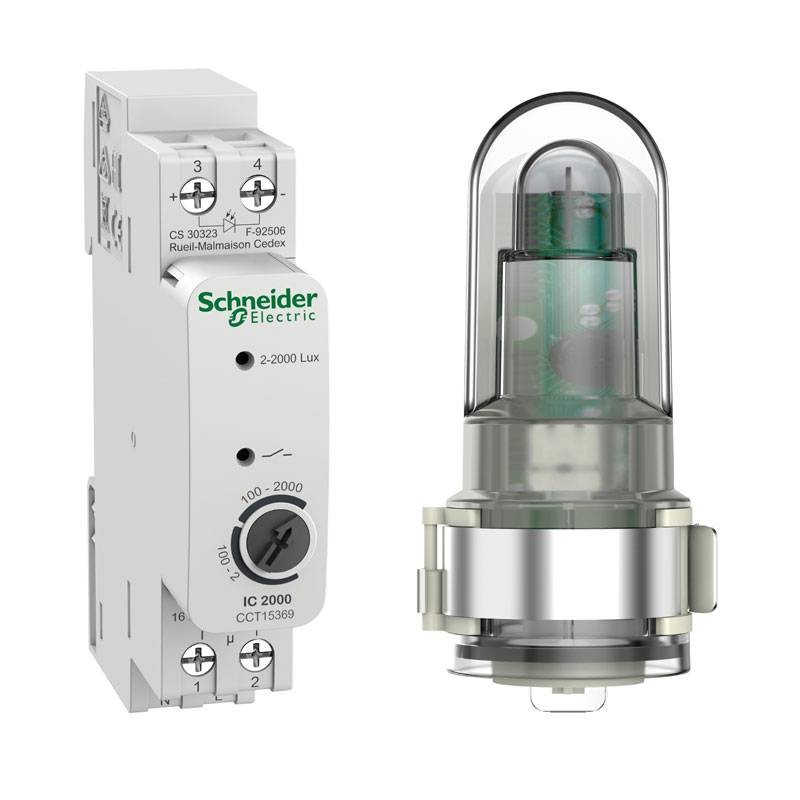

Schneider Acti 9 IC2000 outdoor twilight switch CCT15369

Brand: Schneider

Cod: SNR CCT15369 EAN: 3606489524616

Schneider Acti 9 IC2000 outdoor twilight switch with the following features:

Power consumption in W: 0.5 W standby
Rated operating voltage
Ue: 230 V "AC" +10 % -15 % at "50/60 Hz"
Maximum switching current: 10 A - 250 V "AC" pf = 0.6 - 16 A - 250 V "AC" pf = 1
Minimum switching current: 10 mA 230 V AC - 100 mA 24 V AC/DC
Degree of protection: IP20 - IP55 (sensor)
Insulation class: II
Output type: dry contact

€61.13 Tax included

€61.13

€61.13
Tax included

EXTRA

Add the coupon code in the payment page

Limited-time promotion

Items Available: 3

Pay in installments with Klarna

Two-year warranty

Easy return within 14 days

Are you a professional ?

Request access to

Features:

Number of ways: 1
Power consumption in W: 0.5 W standby
Accuracy: +/-0.25 s/day 25 °C
Timing: 20 s on - 80 s off
Terminal connections: 1 2.5 mm² screw terminals solid or flexible with sleeve - 2 0.52.5 mm² screw terminals solid or flexible
Ambient operating temperature: -30/55 °C
Ambient air temperature for storage/transportation: -30/70°C
Relative humidity: 90 %, non-condensing
Dimensions: height 85.5 mm width 18 mm depth 67 mm
Weight: 111 grams
