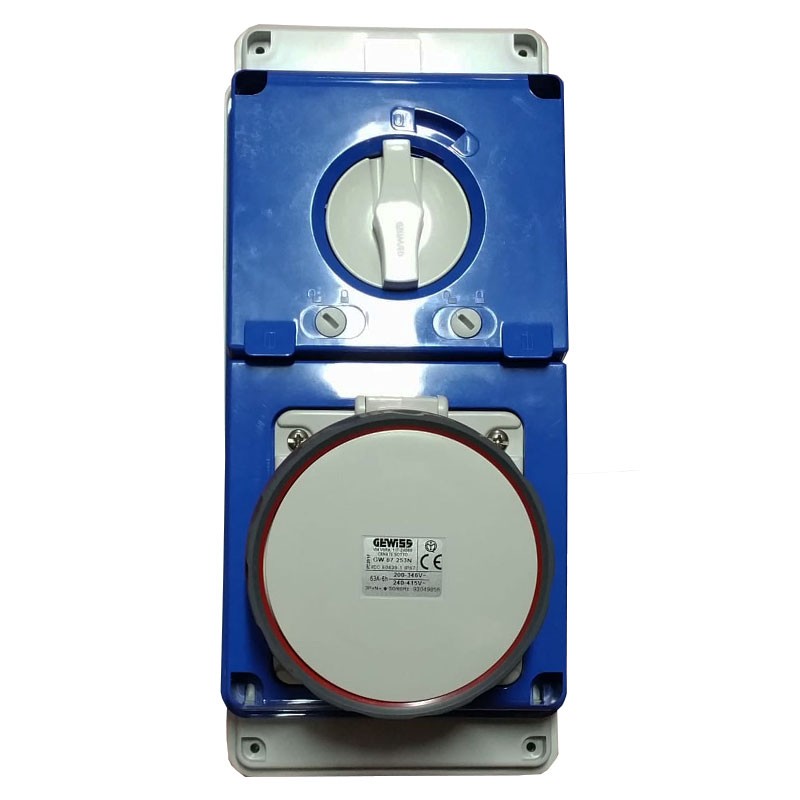

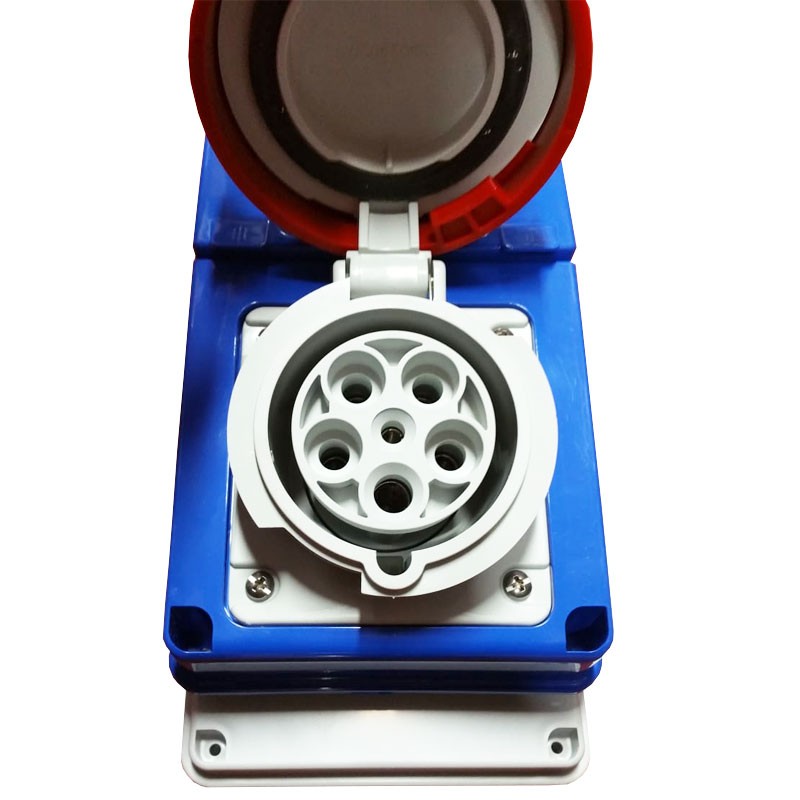

Gewiss interlocked socket 3P+N+E 63A IP67 380V GW67253N

Gewiss
Gewiss
GEW GW67253N 8011564742239

Gewiss vertical interlocked fixed socket, with the following characteristics:

  • Rated voltage: 380-415V
  • Rated insulation voltage (Ui) 500V
  • Nominal current 63A
  • Rated current (In) socket IB 48A
  • Frequency 50/60 Hz
  • Number of poles 3P+T+N
  • Protection degree IP67

Request info about this product

Gewiss interlocked socket 3P+N+E 63A IP67 380V GW67253N

€236.03 Tax included
€236.03

Gewiss interlocked socket 3P+N+E 63A IP67 380V GW67253N

€236.03
Tax included

-20€

EXTRA

Add the coupon code in the payment page

Limited-time promotion
Items Available: 27
logo priority: 2
Altre disponibilità dal produttore
qty

Gewiss interlocked socket 3P+N+E 63A IP67 380V GW67253N

€236.03

Buy it within and receive it from Tuesday, 11 November
klarna Pay in installments with Klarna
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Features:

  • Gewiss Series
  • Protection: Fuse holder base (CBF)
  • With bottom
  • Fuse type: Ø 22x58 mm
  • Typology: vertical
  • Fuse breaking capacity: > 50 kA
  • Thermopressure with ball: 125 °C (IB socket) - 80 °C (Bottom box)
  • Impact resistance: IK08
  • Operating temperature: -25 +40 °C
  • Electrocod code 2222
  • Glow wire test: 850 °C (Socket IB) - 650 °C (Bottom box)
  • Color: red
  • Nominal short-circuit current (Icc): 10 kA
  • Weight: Max. 2,5 Kg
  • Rated impulse withstand voltage: 4 kV
  • Reference: h 6
  • Ware number 85366990

There are no reviews

Data sheet

Type:
Interlocked switch socket outlets
Voltage:
380/415VAC
Poles:
3P+N+T
Degree of protection:
IP67
Installation:
Wall-mounted
Amps:
63A
