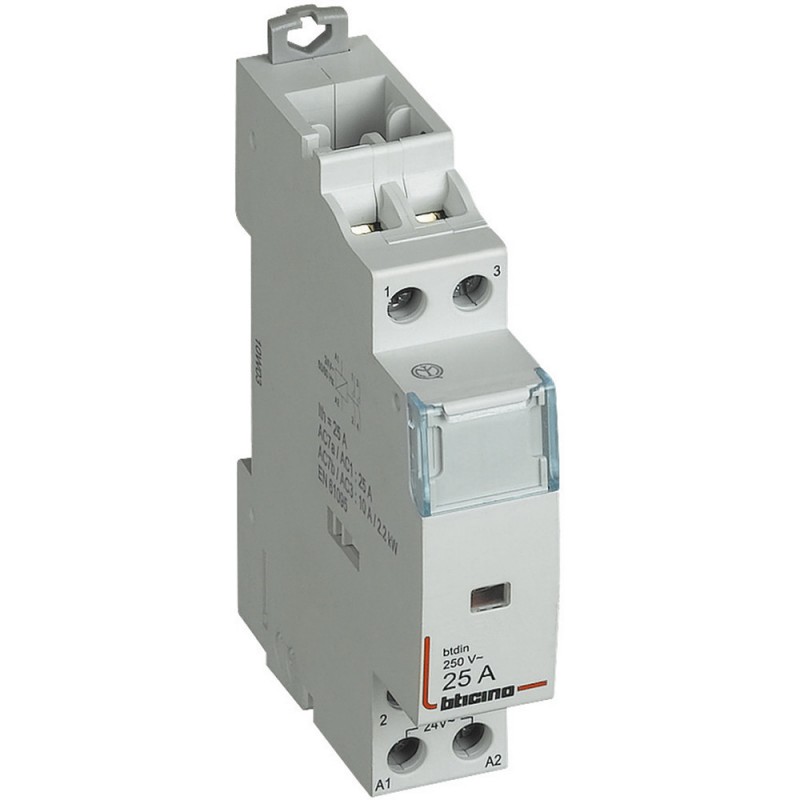

Bticino contactor 2NO 25A 230V FT1A2N230
BTI FT1A2N230
8012199957982
Bticino contactor, with the following characteristics:
- Voltage 230Vac
- 1 module
- DIN connection (universal for any switchboard on the market)
- Contact type 2NO
- 25 amperes
Bticino contactor 2NO 25A 230V FT1A2N230
€48.78
Tax included
€48.78
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 58
: 9
Pay in installments with Klarna
The contactor is a device for closing and opening electrical circuits, mostly high voltage, by remote control.
The standard CEI 17-3 defines a contactor (contactor) as a device capable of interrupting or establishing current within a circuit. To do this, the device opens and closes the contact channels between the system and the power supply structure. In short, a kind of switch to be used for every eventuality.
Features:
- Bticino series
- Voltage 230Vac
- Current In 25A
- 1 module
- Contact type 2NO
- Degree of protection IP20
- Height 83 mm
- Width 17,8 mm
- Depth 67 mm
- Maximum cable section 4mmq
Ottimo prodotto, BTicino azienda storica, una garanzia
Prodotto come da aspettative. .
contatti minuscoli per collegare i conduttori
in opera funziona come da specifiche
Data sheet
- Type: Contactors
- Voltage: 230VAC
- Modules: 1
- Amps: 25A
