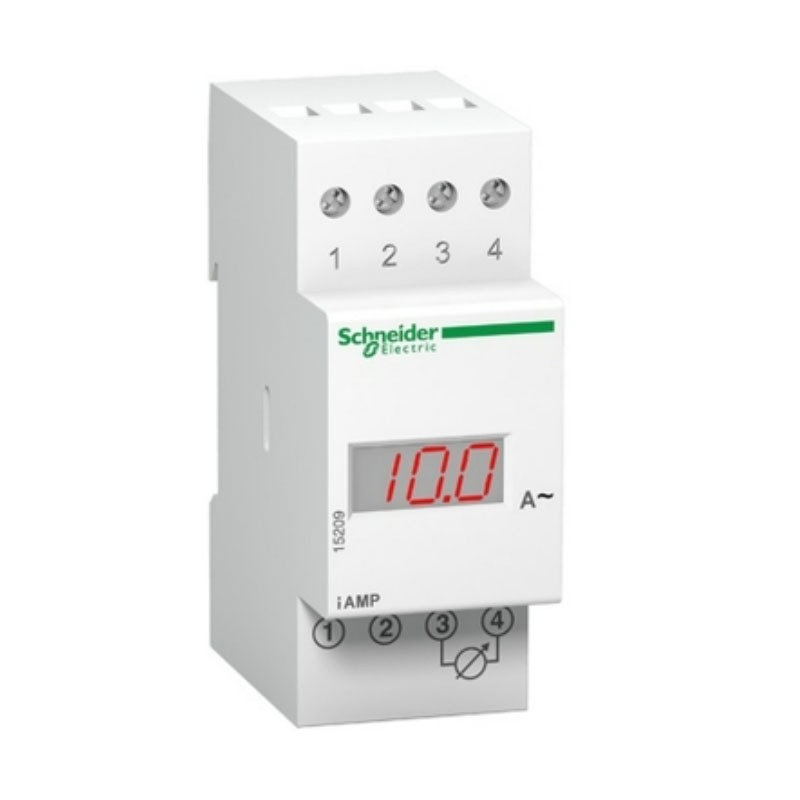

Schneider digital ammeter 5/5000A 2 modules 15209
SNR 15209
3303430152095
AMP modular digital ammeter, with the following features:
- Range compatibility: Prism (Prism P) port - Prism (Prism G) port
- Mains type: "AC" "50/60 Hz"
- Mounting bracket: DIN rail
- Measurement type: Current
- Rated supply voltage [Us]: 230 AC at 50/60 Hz
- Power consumption: 0.3 VA
- Power consumption in VA: 0.3 VA
- Steps 9 mm: 4
- Dimensions: width 36 mm-height 87 mm-depth 65 mm
- Connections - terminals: cage clamp 2 cables 2.5 mm²
- Reference standards: EN 50081-1, IEC 61010-1, EN 50082-1
- Operating ambient temperature: -20/+50 °C
Schneider digital ammeter 5/5000A 2 modules 15209
€165.74
Tax included
€165.74
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 3
Pay in installments with Klarna
Further Schneider RCBO combinations:
Further Schneider circuit breaker combinations:
It must be installed on a panel, on a DIN rail. Ammeters measure in amperes the current flowing through an electrical circuit. The current rating of the transformer can be configured on the front of the ammeter. The device is digital and does not include 5A current transformers, which must be ordered separately. The LED display consists of 2 digits and 1 decimal place and indicates the current from 5A to the rated current of the transformer, for a maximum of 5,000A. Measurement accuracy 0.5% full scale. Complies with IEC/EN 61010-1 standards. Product dimensions: width 36 mm or 4 modules of 9 mm, height 87 mm and depth 65 mm.
There are no reviews
Data sheet
- Type: Ammeters
- Voltage: 230VAC
