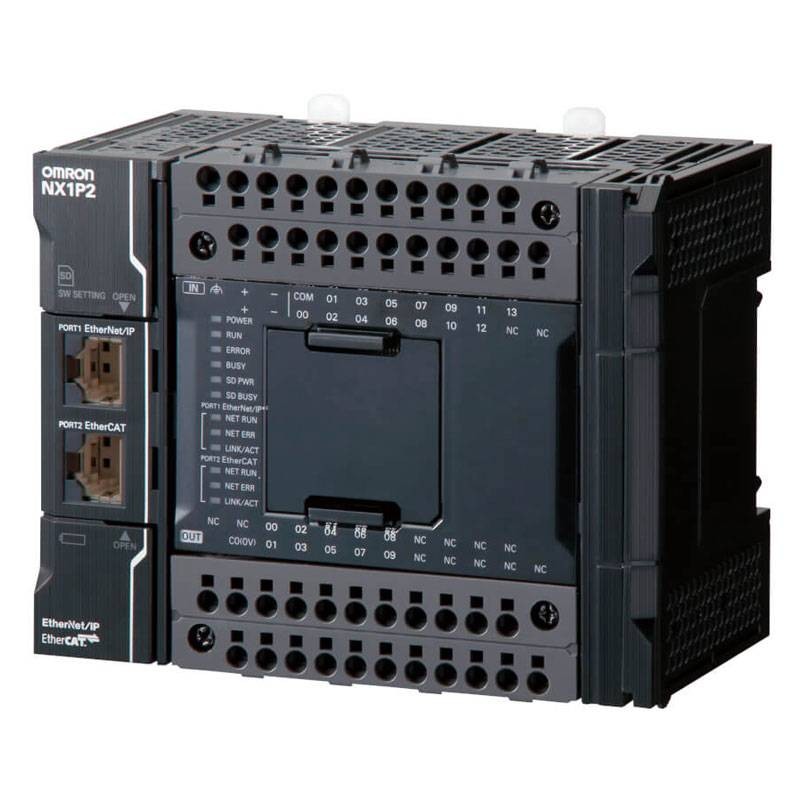

Omron Sysmac NX1P PLC CPU with 24 I/O digital transistors PNP 24DC NX1P29B24DT1
OMR NX1P29B24DT1
4549734556729
Omron Sysmac NX1P PLC CPU:
- 24 digital transistor I/O (PNP)
- 1 MB memory
- EtherCAT (0 servo axes, 2 PTP axes, 8 EtherCAT nodes)
- EtherNet/IP and 1 optional serial port
Omron Sysmac NX1P PLC CPU with 24 I/O digital transistors PNP 24DC NX1P29B24DT1
€607.26
Tax included
€607.26
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 4
Pay in installments with Klarna
The NX1P complements the NX/NJ family of machine controllers by offering the same functionality in a compact design.
The NX1P provides synchronized control of all machine devices such as motion, I/O, safety, and vision in a single integrated development environment.
Features:
- Primary task cycle time 4 ms
- Program memory 1 MB
- Variable memory 2 MB
- Maximum number of synchronous axes 0
- Maximum number of PTP axes 2
- Number of digital inputs 14
- Type of input PNP/NPN
- Number of digital outputs 10
- Type of PNP output
- Number of serial option cards 1
- Maximum number of expansion units 8
- Maximum number of remote I/O nodes 8
- Master communication port(s) EtherCAT, EtherNet/IP, Ethernet TCP/IP
- Number of Ethernet ports 2
- Number of USB ports 0
- Communication options Serial RS-232C, Serial RS-422, Serial RS-485
- Real-time clock
- DC supply voltage 20.4-28.8 V
- Dimensions Height 100 mm - Width 130 mm - Depth 71 mm
There are no reviews
Data sheet
- Type: CPU
