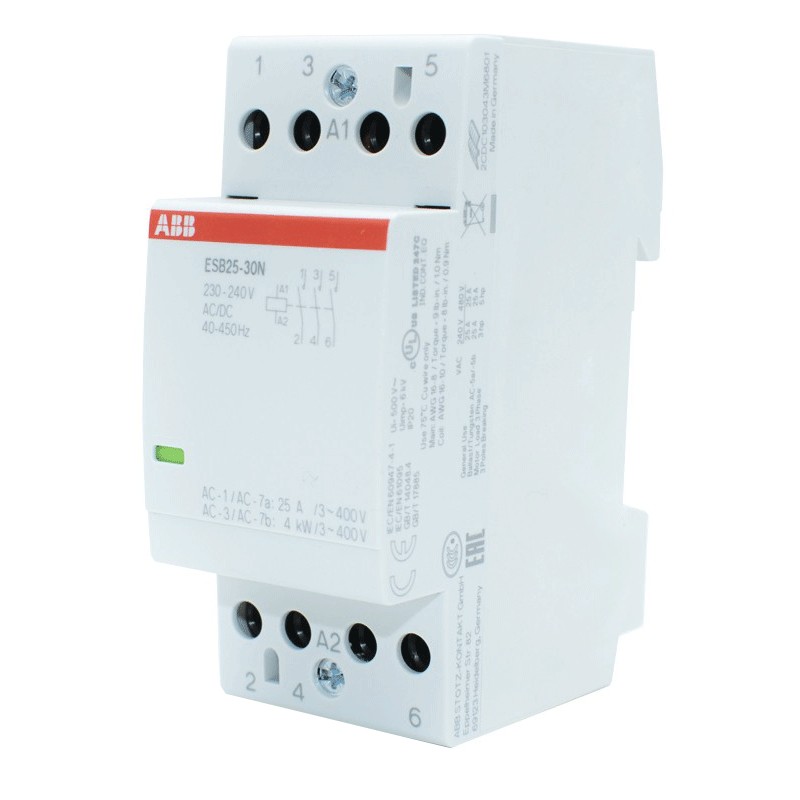

Modular contactor Abb 25A ESB25-30N-06 230V ESB2530N06
ABB ESB2530N06
4013614524233
Abb modular contactor, with the following characteristics:
- Rated impulse withstand voltage 6 kV
- Rated insulation voltage 500 V
- Nominal operating voltage Main circuit 220 Vdc ,Main circuit 400 Vac
- Rated control circuit voltage 230/240Vac
- 4 poles
- 2 modules
- DIN connection (universal for any control unit on the market)
- Operating current 25 amperes
Modular contactor Abb 25A ESB25-30N-06 230V ESB2530N06
€42.74
Tax included
€42.74
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 4
Pay in installments with Klarna
Further Abb circuit breaker combinations:
The contactor is a device for closing and opening electrical circuits, mostly high voltage, by remote control.
The standard CEI 17-3 defines a contactor (contactor) as a device capable of interrupting or establishing current within a circuit. To do this, the device opens and closes the contact channels between the system and the power supply structure. In short, a kind of switch to be used for every eventuality.
Features:
- Abb Series
- Rated impulse withstand voltage 6 kV
- Rated insulation voltage 500 V
- Nominal operating voltage Main Circuit 220 Vdc, Main Circuit 400 Vac
- Rated control circuit voltage 230/240 Vac
- 4 poles
- 2 modules
- Number of NC main contacts 0
- Number of NO main contacts 3
- DIN connection (universal for any control unit on the market)
- Operating current 25 amperes
- Tightening torque Control Circuit 8 in-lb - Main Circuit 9 in-lb
- Stripping length Control Circuit 7 mm - Main Circuit 10 mm
- Degree of protection IP20
- Rated frequency (Control Circuit 400 Hz- Control Circuit 50 Hz- Control Circuit 60 Hz- DC Control Circuit -Main Circuit 50 Hz- Main Circuit 60 Hz- DC Main Circuit)
- Mechanical life 1,000,000 cycles
- Product width 36 mm
- Product height 85 mm
- Product depth 65 mm
- Product net weight 0.23 kg
There are no reviews
Data sheet
- Type: Contactors
- Voltage: 230VAC
- Modules: 2
- Poles: 4P
