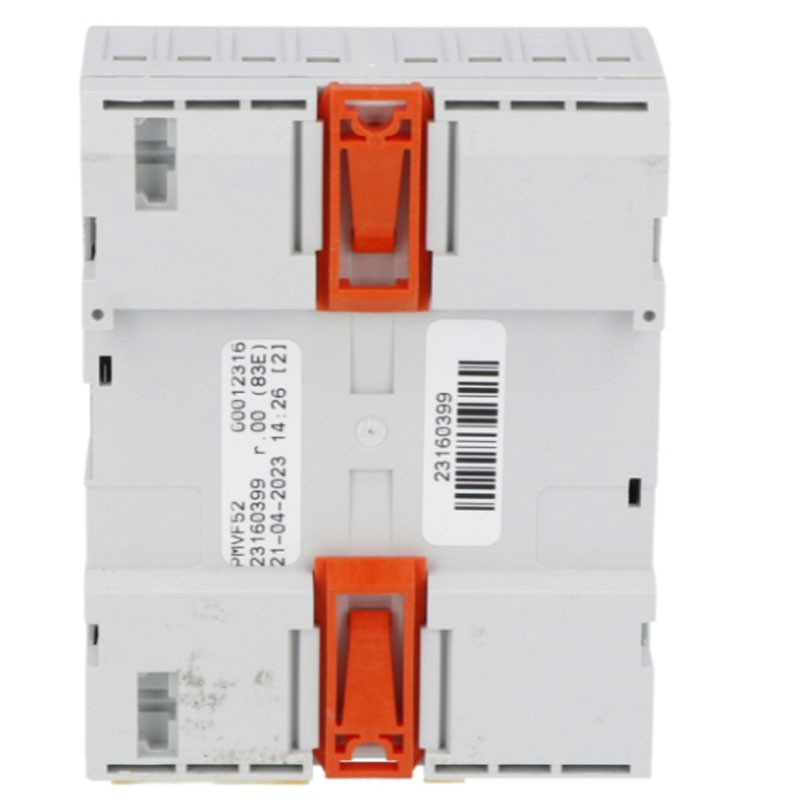

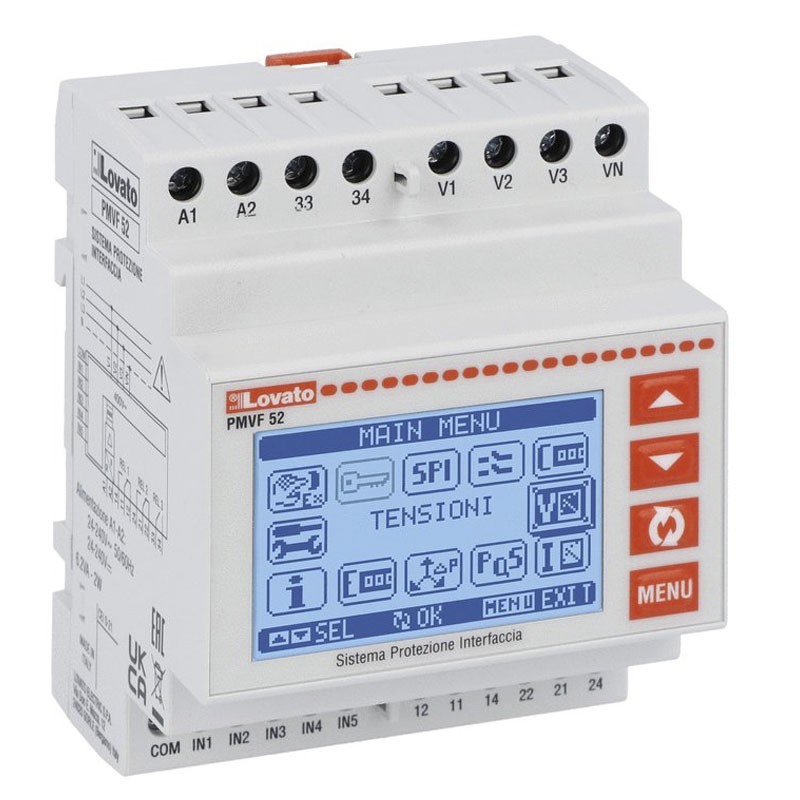

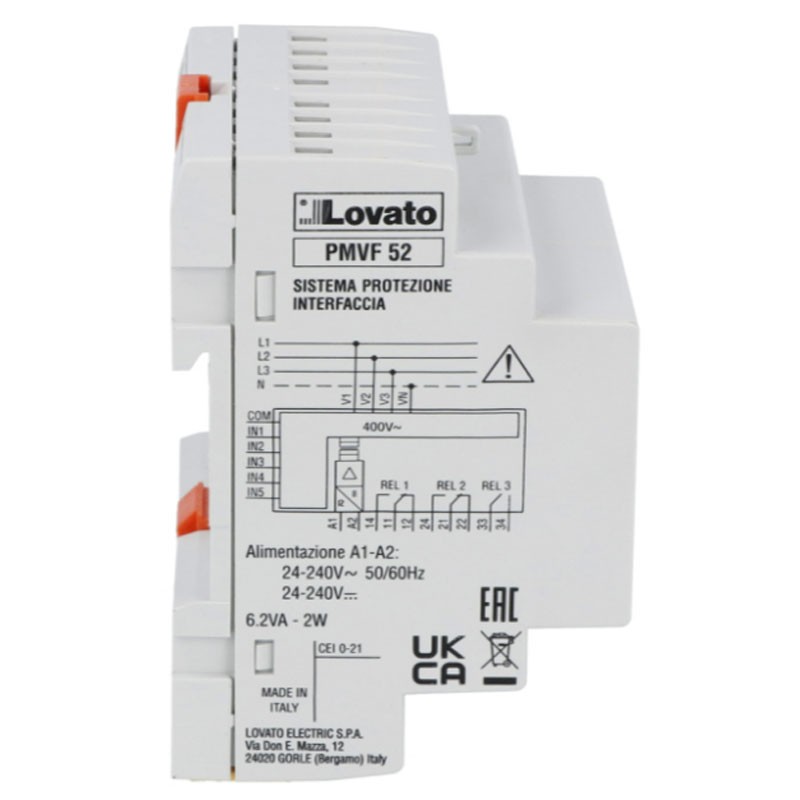

Lovato three-phase interface protection with and without neutral PMVF52
LOV PMVF52
8013975207734
Lovato interface protection system for single-phase and three-phase system with and without low voltage neutral, with the following characteristics:
- Rated AC operating voltage (IEC): VAC 250
- Operating voltage range: 21...264VAC / 21...264VDC
- Rated frequency: Hz 45...55
- Maximum power consumption: VA 6.2
- Maximum power dissipation 2W
- Rated auxiliary supply voltage Us: AC min VAC 24 max VAC 240 - DC min VDC 24 max VDC 240
- Number of relays : 3
- Max rated voltage : 400VAC L-L;230VAC L-N 50 Hz
- Number of output contacts : 3
- Measuring range: 40...480VAC L-L; 23...277VAC L-N
- Frequency range: Hz 45...55
- Contact configuration: 2 changeover contacts/SPDT each + 1NO
Lovato three-phase interface protection with and without neutral PMVF52
€393.45
Tax included
€393.45
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 112
Pay in installments with Klarna
Frequently bought together
Other technical features:
- Attachments type: Screw - removable
- Terminal tightening torque: Max Nm 0.8 - Max Ibin 4.5
- Rated insulation voltage Ui: 300V
- 4 modules
- Material: Polyamide
- Mounting: Modular 4U
- Degree of protection (IEC): IP40 front; IP20 on terminals

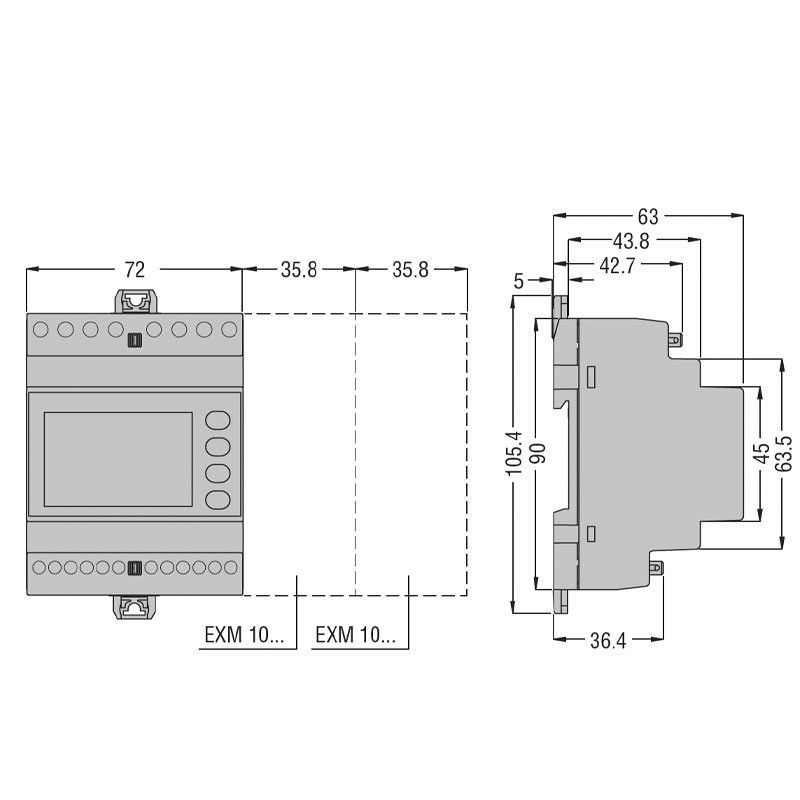

- Dimensions (W x H x D) mm: 71.6 x 105.4 x 63
- Weight: 326 grams
- Conductor cross-section: AWG/Kcmil Min AWG 24 - max AWG 12 - IEC: min mm² 0.2 - max mm² 4
Prodotto già conosciuto, non ancora installato per essere programmato
tutto ok affidabili e precisi
lo consiglio
Prodotto perfetto, come da descrizione, Soddisfatto
Funziona perfettamente, nessun problema anche il setting.
Data sheet
- Type: Protection relay
