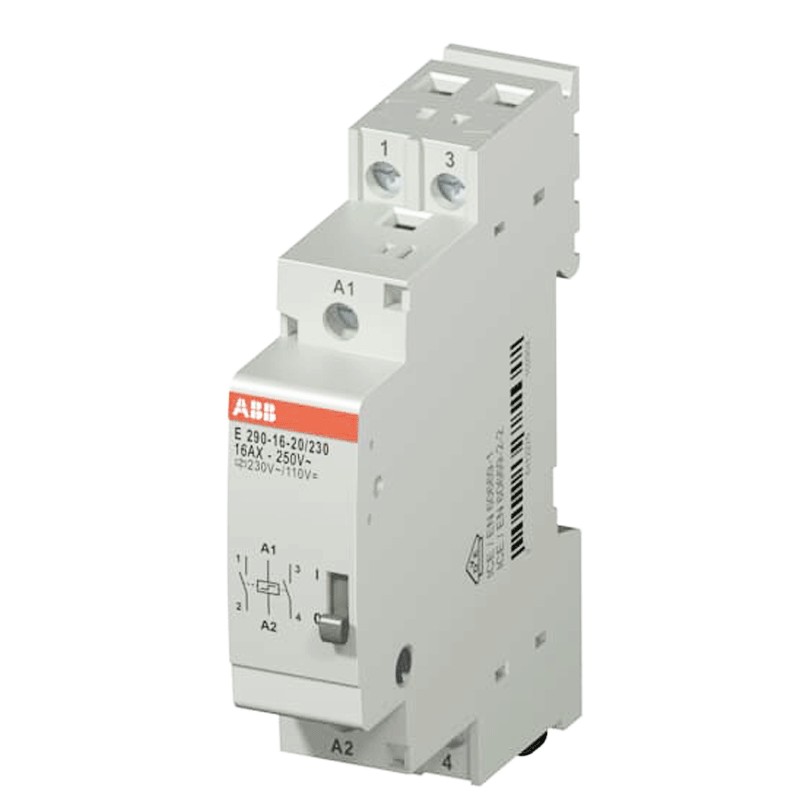

ABB Stepper Relay DIN Rail Switch 16A 250V M093972

Brand: Abb TEST

Cod: ABB M093972 EAN: 7612270939725

ABB step-by-step relays with the following characteristics:

Rated control circuit voltage (Uc) 230 Vac - 110 V DC
Rated control supply voltage (Us) 230 Vac - 110 V DC
Rated current (In) 16 A
Rated frequency (f) 50 Hz
Rated impulse withstand voltage (Uimp) 4 kV
Rated insulation voltage (Ui) 230 Vac - 110 V DC
Rated operating voltage 250 Vac
Tightening torque 1.2 - 1.5 Nm
Colour grey
Mounting type DIN rail

E290-16-20230 EN

ABB Stepper Relay DIN Rail Switch 16A 250V M093972

€25.74 Tax included

€25.74

ABB Stepper Relay DIN Rail Switch 16A 250V M093972

€25.74
Tax included

-20€

EXTRA

Add the coupon code in the payment page

Limited-time promotion

Items Available: 92

: 21

Altre disponibilità dal produttore

Pay in installments with Klarna

Two-year warranty

Easy return within 14 days

Purchase with tax breaks

Are you a professional ?

Request access to

Description

This product allows contacts to be switched with each impulse sent to the coil by means of normally open pushbuttons and is mainly used to control lamps from one or more points.

Equipped with a front lever on the product to be used for manual operation, which also indicates the status of the contacts.

Thermal overload relays and overload relays are electromechanical protection devices for the main circuit. They offer safe motor protection in the event of overload or phase loss.

Features:

Abb series
Rated control circuit voltage (Uc) 230 Vac - 110 V DC
Rated control supply voltage (Us) 230 Vac - 110 V DC
Rated current (In) 16A
Rated frequency (f) 50 Hz
Rated impulse withstand voltage (Uimp) 4 kV
Rated insulation voltage (Ui) 230 Vac - 110 V DC
Rated operating voltage 250 Vac
Noise level dB (A) - (@distance 1 m) 60 dB
Supply voltage 207...253 Vac
Tightening torque 1.2 - 1.5 Nm
Power loss 0.64W
Colour grey
Mounting type DIN rail
Number of NC auxiliary contacts 0
Number of NO auxiliary contacts 0
Number of NC main contacts 0
Number of NO main contacts 2
Response time <3 ms
Rated short-circuit current (SCCR) 3 kA
Ambient temperature Operating -25/+55 °C
Ambient temperature in storage -40/+70 °C
Width 18 mm
Height 85 mm
Length 62 mm
Depth 62 mm
Net weight 122 grams
