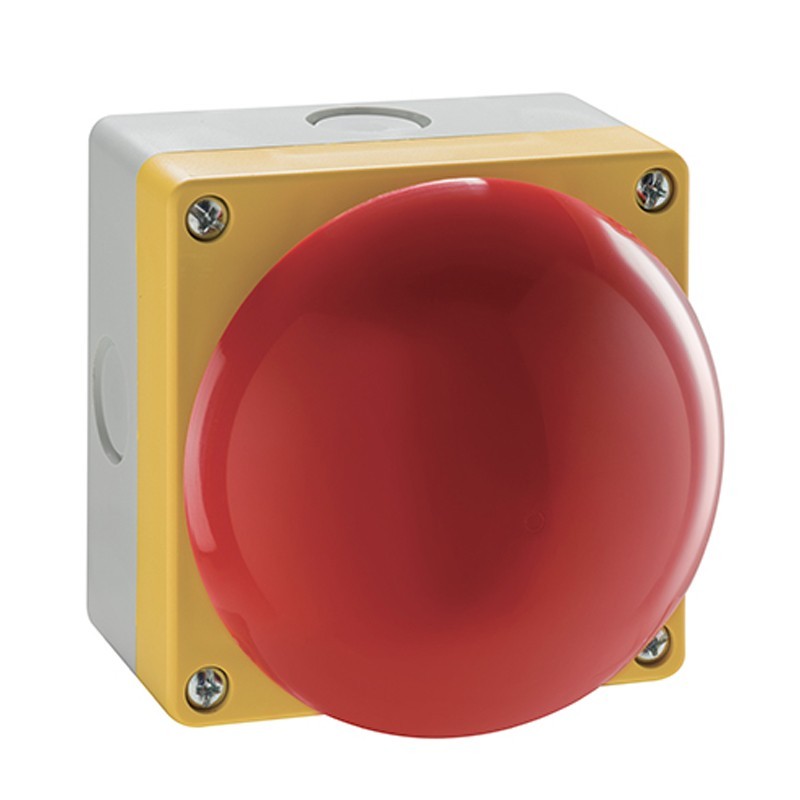

Palm Lovato Red Pushbutton with NO traction release NC LP9P11R
LOV LP9P11R
8013975266298
Red Palm Lovato Red Push Button with NO NC traction release, axial diameter 90, designed for Machine Stop and Immediate Control applications, including service.
Palm Lovato Red Pushbutton with NO traction release NC LP9P11R
€31.17
Tax included
€31.17
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 4
Pay in installments with Klarna
Typical applications are:
- Escalators
- gate opening command
- Pedestrian calls for the disabled.
The ergonomic design makes them suitable for easy operation with the hand, elbow, foot ensuring immediate intervention on machinery or plants even if the operator has his hands busy.
Features:
- cable entry (breakthrough holes): M20/PG13.5 (1 on each side) - M16/PG11 (2 on the bottom)
- any mounting position is permitted
- Tmax cover screws tightening torque: 0.8Nm
- environmental conditions: operating temperature: -25... 75°C
- storage temperature: -40... 85°C
- Degree of protection according to IEC/EN: IP65. CONTACT ELEMENTS
- rated insulation voltage: 690V
- thermal current Ith: 10A
- conductivity: 5V 10mA
- Contact screws tightening torque: 0.5...0.8Nm
- permitted cable cross section: 1 or 2 conductors - 0.5...2.5 mm
- designation according to IEC/EN60947-5-1: A600 Q300.
