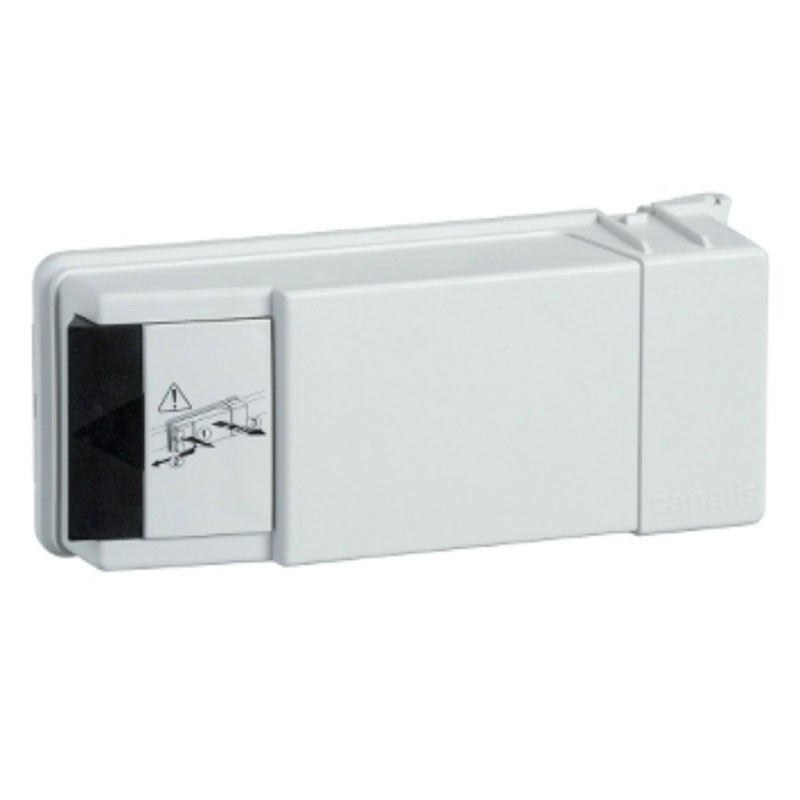

Telemanique Canalis Junction Unit 16A 4P Plug KBC16DCB40
SNR KBC16DCB40
3606480002267
KBC Schneider Canalis series branch unit with the following features:
- Application: Lighting
- Range compatibility: Canalis (KBA) straight element, Canalis (KBB) straight element
- Rated operating voltage [Ue]: 230...240 V
- Rated impulse withstand voltage [Uimp]: 4 kV
- Rated insulation voltage [Ui]: 690V
- Rated operating current [Ie]: 16 A at 35 °C
- Mains frequency: "50/60 Hz"
- Protection type: Without protection
- Branch unit polarity: 3L+N+PE
- Branch unit connector type: With fixed polarity
- Reference Standards: EN/IEC 61439-1 - EN/IEC 61439-6
- Dimensions: Width 205 mm - Depth 38 mm - Height 68 mm
- Color: cream (RAL 9001)
- Weight: 90 grams
- IP degree of protection: IP55 in accordance with EN/IEC 60529
Telemanique Canalis Junction Unit 16A 4P Plug KBC16DCB40
€49.63
Tax included
€49.63
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 21
: 2
Pay in installments with Klarna
The product is a branch unit for direct connection of Canalis KBA, KBB lighting lines. Canalis KBA, KBB are designed for lighting and power outlet distribution.
The rated operating current is 16A at 35℃. The operating voltage is 230VAC 50/60 Hz to 240VAC 50/60 Hz. Polarity is 3L+PE, with movable pins. Provides IP55 protection conforming to IEC 60529 standard, which ensures protection of the busbar against splashes and dust. Provides IK06 protection complying with IEC 62262 standard against external mechanical shocks. Canalis products comply with IEC/EN 61439-6 standard. The product does not propagate flame according to the recommendations of IEC 60332-3 All insulation and plastic materials are halogen-free and have improved fire resistance capabilities (IEC 60695-2).
There are no reviews
Data sheet
- Type: Unità di derivazione
