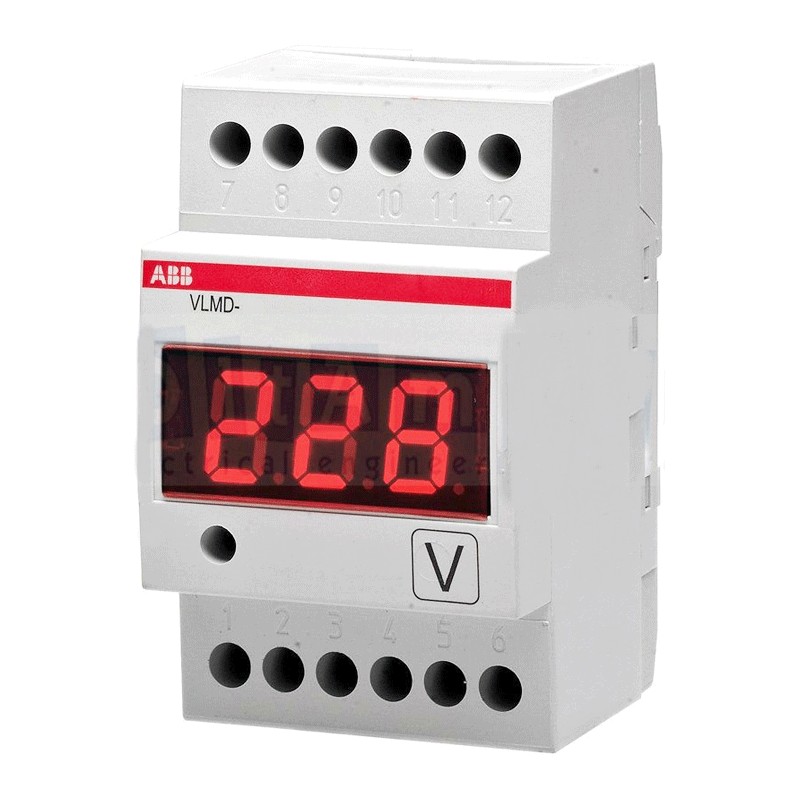

Abb Digital Voltmeter 600VCA/DC EG 655 3
ABB EG 655 3
8012542620402
Abb digital voltmeter, with the following features:
-
AC / DC current type
-
Degree of protection IP20
-
Type of measurement digital
-
DIN rail mounting type
-
Object classification code
-
Power loss 4 W
-
Ambient temperature in operation -40 ... +55 °C
Abb Digital Voltmeter 600VCA/DC EG 655 3
€100.13
Tax included
€100.13
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 1
Pay in installments with Klarna
The digital instrument range consists of a voltmeter and ammeters for AC and DC. (VLMD and AMTD) and a frequency meter (FRZ). The ammeters measure through indirect insertion thanks to special accessories such as current transformers for AC and shunt for DC. The full scale is user programmable. The VLMD-R and AMTD-R versions integrate a programmable internal relay for setting alarm thresholds.
Features:
- Abb Series
-
Accuracy ±0.5% F.S. ±1 at 25 °C
-
Current type AC / DC
-
Protection class IP20
-
Frequency 35 ... 400 Hz
-
Measuring range 0...500 V
-
Measurement type digital
-
Type of mounting DIN rail
-
Object classification code
-
Current consumption (@Pcons) 4 W
-
Power loss 4 W
-
Ambient temperature in operation -40 ... +55 °C
-
Width 52.5 mm
-
Height 26.5 mm
-
Depth 61.5 mm
-
Net weight 0.320 kg
There are no reviews
Data sheet
- Type: Voltmeters
