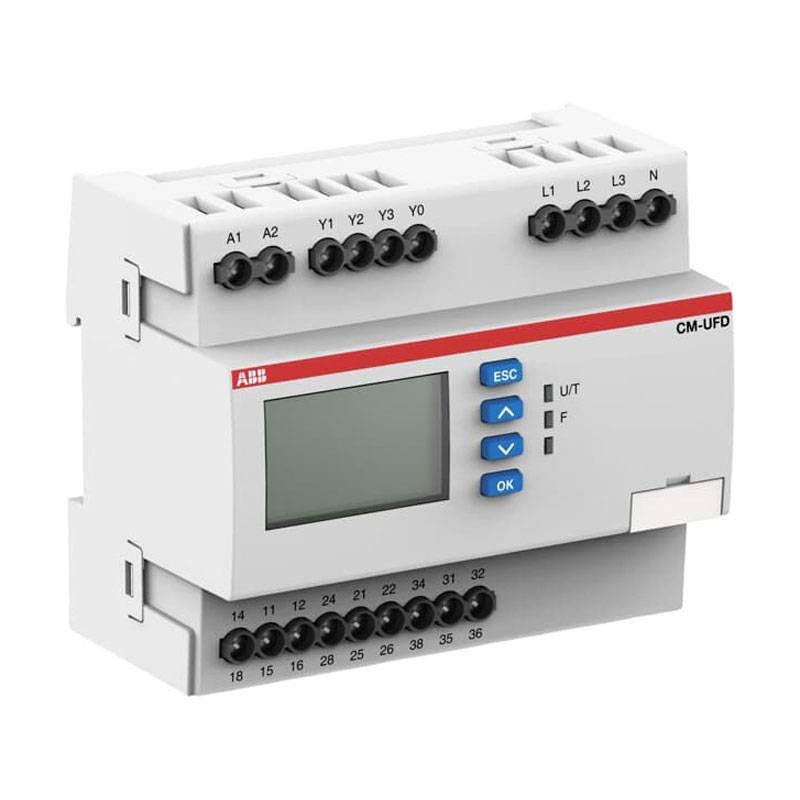

SPI interface protection relay Abb CMUFDM22 1SVR560730R3400
ABB 1SVR560730R3400
4016779925167
SPI Abb CMUFDM22 interface protection relay:
Performs the following functions:
- Interface relay
- SPI interface protection relay
- Multifunction
- For network connection
- Interface device for grid connection
- CEI 0-21 ed.07-2016 interface relay for grid connection
Product also applied for photovoltaic systems.
SPI interface protection relay Abb CMUFDM22 1SVR560730R3400
€404.35
Tax included
€404.35
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 344
Pay in installments with Klarna
Features:
- Width: 108 mm
- Height: 90 mm
- Depth: 67 mm
- Net weight: 304 grams
- Measurement range: 0...540V AC
- Rated control supply voltage (Us): 24...240V AC/DC
- Output: 3 c/o (SPDT) contacts
- Terminal type: Screw Terminals
- Ambient temperature: in operation -20/+60°C - in storage -25/+50°C
- UL/CSA tightening torque:4.4 ... 5.3 in-lb
UL/CSA Cable Sections:
- Flexible with Ferrule 1x 24-12 AWG
- Flexible with Ferrule 2x 24-18 AWG
- Flexible with Insulated Ferrule 1x 24-12 AWG
- Flexible with Insulated Ferrule 2x 24-18 AWG
- Flexible 1x 24-12 AWG
- Flexible 2x 24-16 AWG
- Rigid 1x 24-10 AWG
- Rigid 2x 24-16 AWG
Reference Standards:
- IEC 0-21
- IEC/EN 63000
- IEC/EN 60255-26
- IEC/EN 60255-27
- IEC/EN 61000-6-3
There are no reviews
Data sheet
- Type: Protection relay
