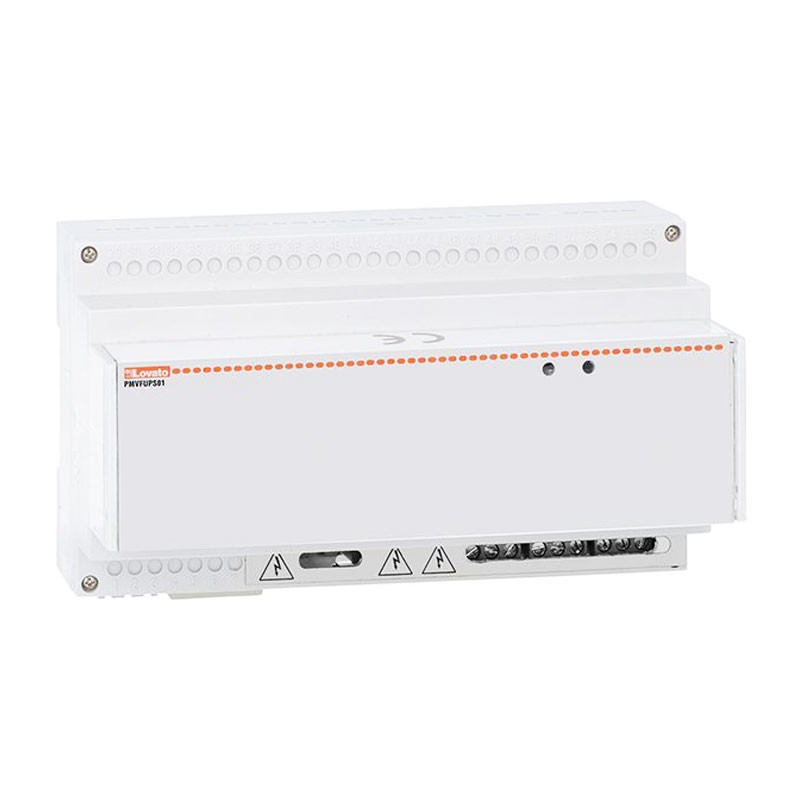

Lovato Backup Power Supply for PMVF interface protections PMVFUPS01
LOV PMVFUPS01
8013975296172
Lovato Backup Power Supply for AC powered PMVF interface protections, 230V input with 200Ws accumulated energy and 250VA power.
Lovato Backup Power Supply for PMVF interface protections PMVFUPS01
€431.93
Tax included
€431.93
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 3
Pay in installments with Klarna
Frequently bought together
Features:
- Uninterrupted backup power supply, full static technology
- System type Single phase
- Auxiliary voltage (Us) 230VAC
- Operating voltage range 196...264VAC
- Nominal frequency Hz 50
- Operating frequency min Hz 45 - max Hz 55
- Protection Fuse 6.3A (5x20)
- Voltage 230VAC
- Frequency Hz 50
- Protection Fuse 5A(5x20) + PTC
- Power VA 250 x 1s; 1250 for 200ms
- Energy available Ws 200
- Energy storage time 15s
- Connections type Fixed
- Terminal tightening torque max Nm 0.5 - max Ibin 4.5
- Conductor section AWG/Kcmil min AWG 24 - max AWG 12
- Operating temperature min °C -5 - max °C +55
- Design (n° of modules) 9
- Mounting DIN EN 50022
- Degree of protection (IEC) IP20
- Dimensions (W x H x D) mm 157.5 x 90 x 70
- Product weight g 500.
There are no reviews
Data sheet
- Type: Power supplies
