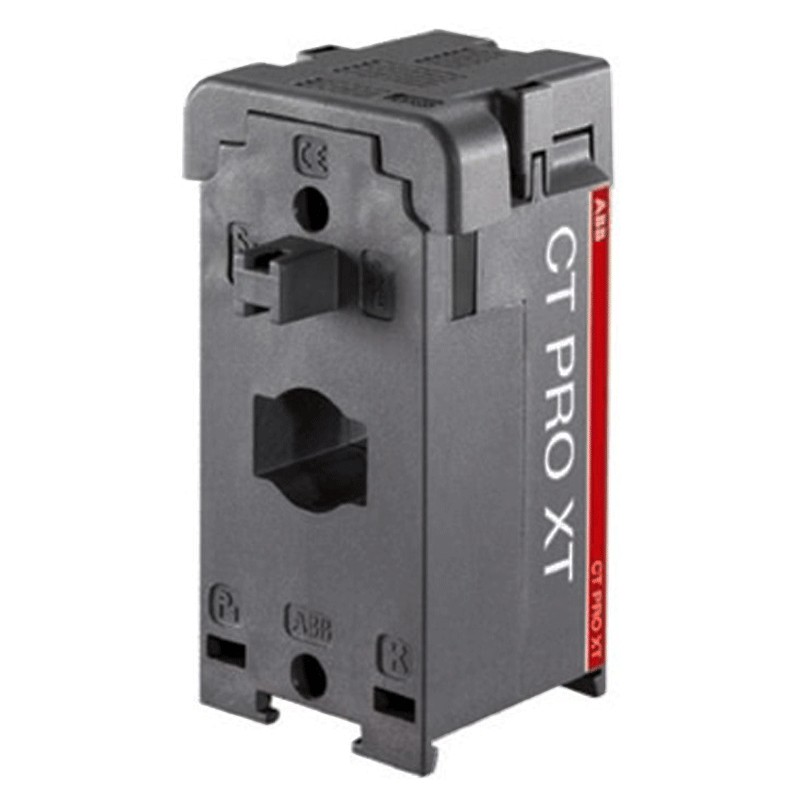

Abb CT PRO XT 100A 3VA current transformer G225785
ABB G225785
8012542257851
Abb CT PRO XT current transformer, with the following characteristics:
- Current In 100A
- Power 3VA
- Operating ambient temperature -5 ... +50 °C
- Cable section 18 mm
- Protection class IP30
- Frequency 50/ 60 Hz
- Power loss 15 W
- Primary bar up to 20 x 10 mm
- Product width 45 mm
- Product height 26.5 mm
- Product depth 69 mm
- Product net weight 0.32 kg
Abb CT PRO XT 100A 3VA current transformer G225785
€22.93
Tax included
€22.93
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 26
: 5
Pay in installments with Klarna
Further Abb Residual current device combinations:
Further Abb circuit breaker combinations:
The amperometric transformer or CT, in its simplest form, consists of two windings (primary and secondary) isolated from each other and a magnetic core on which the windings are wound.
Features:
- Abb Series
- Current In 100A
- Power 3VA
- Operating ambient temperature -5 ... +50 °C
- Accuracy ±1%.
- Cable section 18 mm
- Use cable - cable and horizontal bar
- Current limit function FS 5
- Protection class IP30
- Frequency 50/ 60 Hz
- Mounting type Through primar
- Power loss 15 W
- Secondary output connection Screw connection
- Primary bar up to 20 x 10 mm
- Product width 45 mm
- Product height 26.5 mm
- Product depth 69 mm
- Product net weight 0.32 kg
There are no reviews
Data sheet
- Type: Toroidal Transformers
- Section: 18mm
- Amps: 100A
