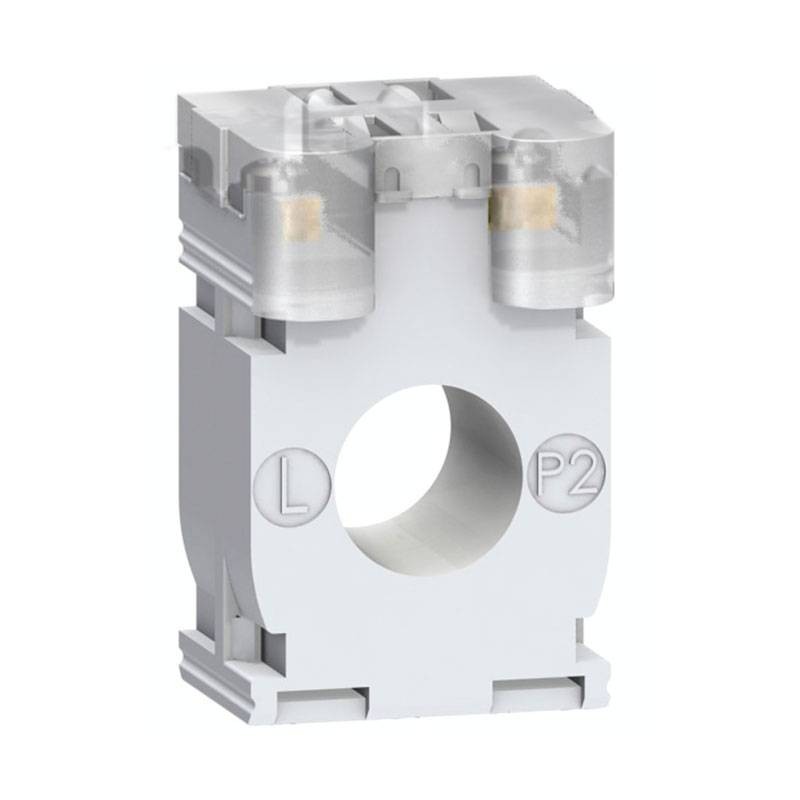

Schneider 100/5A Amperometric Transformer for Cables 21mm METSECT5CC010
SNR METSECT5CC010
3303430164531
Schneider tropicalized Amperometric Transformer for 21mm cables with the following characteristics:
- Secondary current: 5 A
- Rated current In: 100 A
- Conventional thermal current in air Ith: 6 kA
- Dynamic resistance current: 2.5 Ith
- Rated operating voltage Ue: 720 V "AC" "50/60 Hz"
- Rated insulation voltage Ui: 3 kV
- Rated impulse withstand voltage Uimp: 3 kV
Schneider 100/5A Amperometric Transformer for Cables 21mm METSECT5CC010
€24.34
Tax included
€24.34
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 82
: 10
Further Schneider circuit breaker combinations:
Characteristics:
- Accuracy class: Class 0.5 to 2 VA - Class 1 to 1.25 VA - Class 3 to 3.5 VA
- Mounting mode: Attachment With screws
- Mounting medium: Mounting plate - DIN rail
- Insulation class: B
- Relative humidity: 0/95 %
- Operating ambient temperature: -25/60 °C
- Degree of protection: IP20
Dimensions and weight:
- outer height: 65 mm
- outer width 44 mm
- frame depth 30 mm
- total depth 37 mm
- diameter 21 mm
- outer cable diameter 21 mm
- Weight: 190 grams
There are no reviews
Data sheet
- Diameter:
- 21mm
- Type:
- Toroidal Transformers
- Amps:
- 100A
