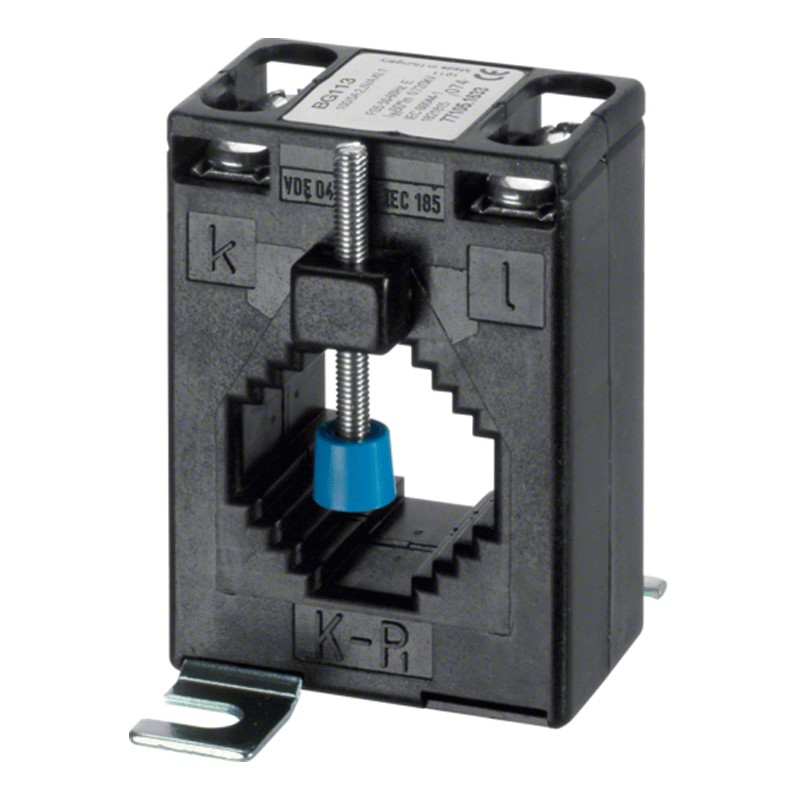

Hager 100-5 A Current Transformer BG 113 SRA01005
HAG SRA01005
4049857139316
Hager Current Transformer:
- Maximum primary current 100A
- Maximum secondary current 5A
- Primary current 100A
- Accuracy class 1
- Rated insulation voltage 3 kV
Hager 100-5 A Current Transformer BG 113 SRA01005
€24.93
Tax included
€24.93
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 6
: 5
Pay in installments with Klarna
Further Hager circuit breaker combinations:
Features:
- Product type plug-in current transformer
- Mounting mode DIN rail or on a mounting plate
- Rated frequency 50/60 Hz
- Total power dissipation 0.7 W
- Depth of installed product 30 mm
- Height of installed product 70 mm
- Installed product width 49.5 mm
- opening width 29.5 mm
- opening height 20 mm
- Bar or cable section 30x10mm / 25x15mm / 20x20mm
- Minimum section with flexible cable 1.5 / 6mm²
- Minimum cross-section with rigid cable 1.5 / 6mm²
- Type of screw connection
- Number of inputs 1
- With touch protection yes
- Transformation ratio 100A, 5A
- Enclosure degree of protection IP10
- Operating temperature -40/+40 °C
- Storage/transport temperature -40/+40 °C.
There are no reviews
Data sheet
- Type: Toroidal Transformers
- Amps: 100A
