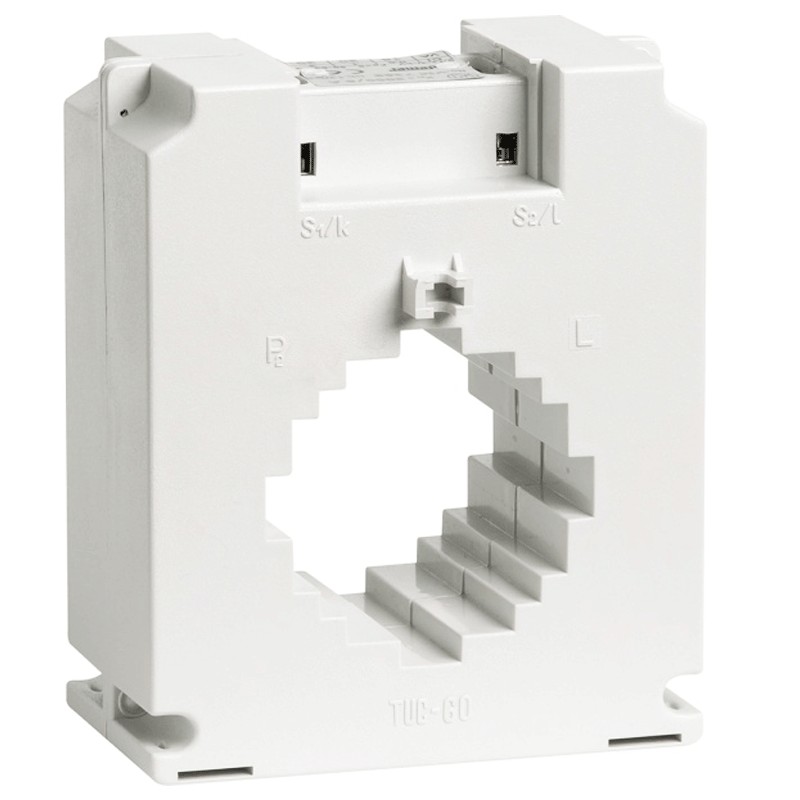

Vemer TUC60 bar current transformer 400/5A D51 VM730900
VEM VM730900
8007951730903
TUC60 amperometric transformer, through-bar Vemer, with the following characteristics:
- With panel or DIN rail mounting
- Designed for alternating current instruments
- Nominal power 400/5A
- Maximum operating voltage 720 V

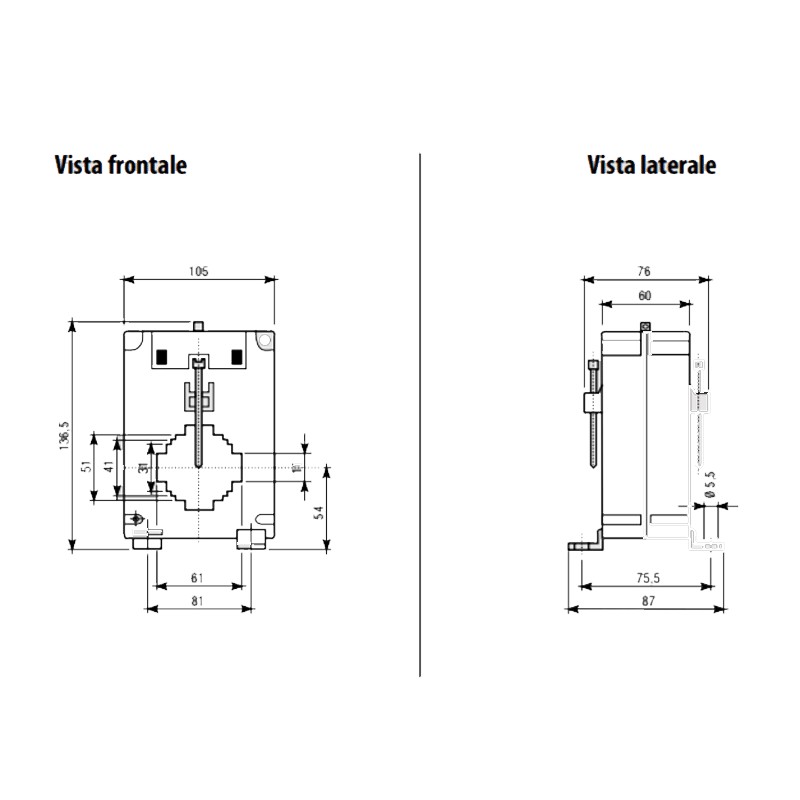

- Dimensions 105x137x87mm
- Bar passage 60/10 mm
- Cable passage diameter 51 mm
- Frequency 50/60 Hz
Vemer TUC60 bar current transformer 400/5A D51 VM730900
€50.86
Tax included
€50.86
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 12
: 2
Pay in installments with Klarna
The current transformer o TA, in its simplest form, consists of two windings (primary and secondary) isolated from each other and a magnetic core on which the windings are wound.
Characteristics:
- Vemer series
- With panel or DIN rail mounting
- Designed for alternating current instruments
- Nominal power 400/5A
- Maximum operating voltage 720 V
- Maximum continuous overload In 1.2A
- Class 0.5 (15 VA) - 1 (20 VA) - 3 (30 VA)
- Dimensions 105x137x87mm
- Bar passage 60/10 mm
- Cable passage diameter 51 mm
- Opening (hole) for cable or bar passage (primary)
- Double clamp for secondary
- Test voltage (1 minute) 3 kV
- Frequency 50/60 Hz
- Safety factor <5
- Insulated housing
- Operating temperature min -10 °C - max +50°C
There are no reviews
Data sheet
- Diameter: 51mm
- Type: Toroidal Transformers
- Amps: 400A
