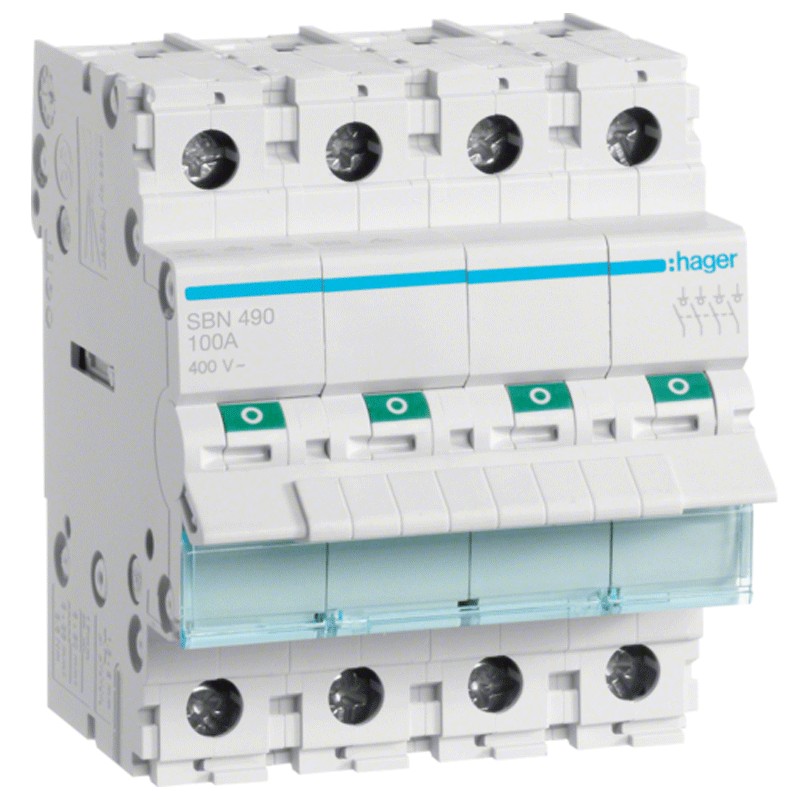

Hager 4-pole 100A 4-module disconnector SBN490

Hager
Hager
HAG SBN490 3250615510310

Hager switch-disconnector with the following features:

  • Nominal operating voltage AC 400 Vac
  • Rated frequency 50/60 Hz
  • Rated insulation voltage 440 V
  • Type of input voltage 1 AC
  • Rated fault holding current 6000 V
  • Rated current In 100A
  • Disconnector without neutral
  • 4 poles
  • 4 modules
  • Enclosure protection degree IP20
  • DIN rail mounting

Request info about this product

Hager 4-pole 100A 4-module disconnector SBN490

€87.28 Tax included
€87.28

Hager 4-pole 100A 4-module disconnector SBN490

€87.28
Tax included

-20€

EXTRA

Add the coupon code in the payment page

Limited-time promotion
Items Available: 12
logo priority: 3
Altre disponibilità dal produttore
qty

Hager 4-pole 100A 4-module disconnector SBN490

€87.28

Buy it within and receive it from Tuesday, 11 November
klarna Pay in installments with Klarna
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Thedisconnector, otherwise called voltage isolator, has the same features of a switch, but on a larger scale: it is, in fact, responsible for closing the flow of energy to the power plants. This serves mainly to ensure the safety of the plant and primarily of the people who work inside since one of its peculiarities is to separate the flow of energy from the working environments. Another peculiarity of this instrument is the ability to detect defects in the electrical flow and isolate them. When the defect is corrected, the disconnector will ensure that the current flows normally again.

Features:

  • Hager Series
  • Nominal operating voltage AC 400 Vac
  • Rated frequency 50/60 Hz
  • Rated insulation voltage 440 V
  • Input voltage type 1 AC
  • Rated fault withstand current 4000 V
  • Rated current In 100A
  • Disconnector without neutral
  • 4 poles
  • 4 modules
  • Enclosure protection degree IP20
  • Total power dissipation 22 W
  • Power loss per pole 5.5 W
  • Number of operations (mechanical life) 40000
  • Depth 69 mm
  • Height 83 mm
  • Width 70 mm
  • Tightening torque 3.6 Nm
  • Minimum cross section with flexible cable 6 / 35mm²
  • Minimum cross-section with rigid cable 6 / 50mm²
  • Position of the aligned terminals
  • Screw connection type
  • Operating temperature -20...50 °C
  • Pollution degree 2
  • Altitude 2000 m
  • Storage/transport temperature -40...80 °C
  • DIN rail mounting

There are no reviews

Data sheet

Voltage:
400VAC
Modules:
4
Poles:
4P
Amps:
100A
Circuit Protections:
Disconnectors
Operating voltage:
AC
