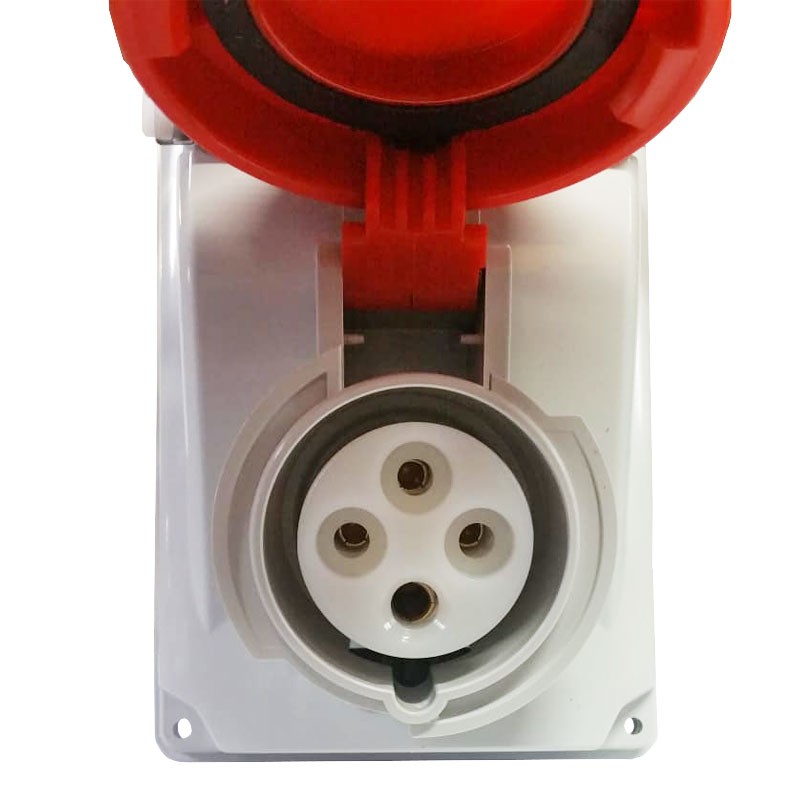

Palazzoli CEE Interlocked Industrial Socket 3P+E 16A 400V IP67 fuse
PAL 490136
8014950037667
Palazzoli CEE Interlocked Industrial Socket, with the following characteristics:
- Rated voltage: 400V
- Rated insulation voltage: 690V
- 3 poles+ T
- Rated current 16A
- Frequency 50/60Hz
- Degree of protection IP66/IP67
- With fuse holder base for panel installation
Palazzoli CEE Interlocked Industrial Socket 3P+E 16A 400V IP67 fuse
€68.47
Tax included
€68.47
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 80
: 18
Pay in installments with Klarna
Frequently bought together
Features:
- Palazzoli Series
- Storage ambient temperature: MIN -30°C - MAX +70°C
- Ambient temperature: MIN -25°C - MAX +50°C
- Terminal type: indirect clamping
- Max conductor section 10 mm²
- Protection: fuses
- Utilization category AC-23A / AC-3 16A - 250V
- Shock resistance IK08 according to IEC/EN 62262
- Color: gray RAL 7035
- Hourly ref: 6h
- Body material: thermoplastic
- Execution: panel
- Insulation class II
- Width 108 mm
- Dimensions 103X230X120 mm
There are no reviews
Data sheet
- Type: Interlocked switch socket outlets
- Voltage: 380/415VAC
- Poles: 3P+T
- Degree of protection: IP67
- Installation: Wall/Recessed
- Amps: 16A
