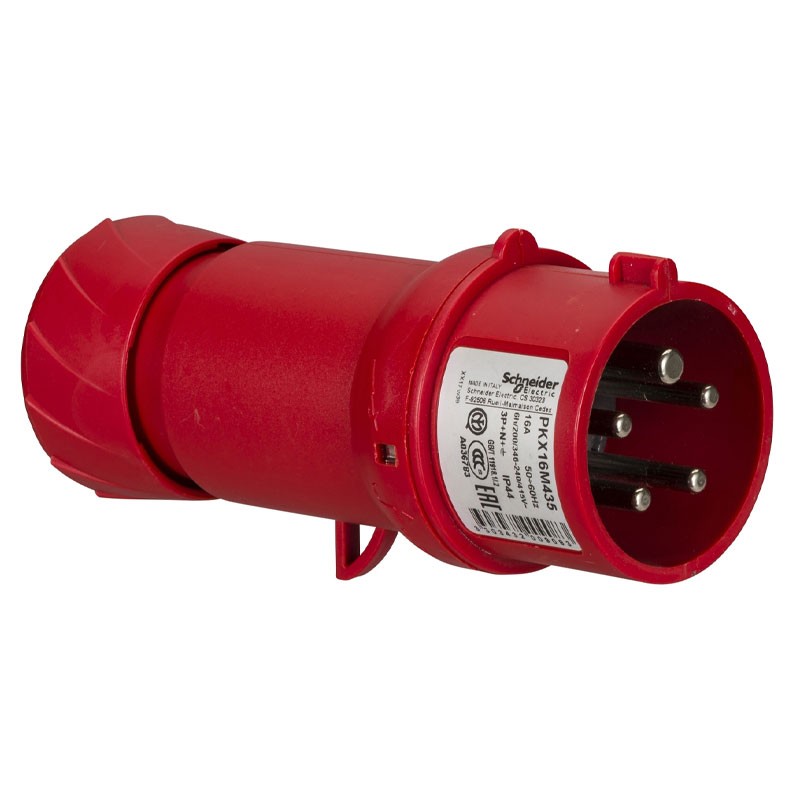

Schneider mobile industrial plug 3X16A+NT 400V IP44 red PKX16M435
SNR PKX16M435
3303432009083
PratiKa BT Schneider mobile industrial plug, with the following features:
- Rated operating voltage 380/415V
- Rated current 16A
- Network frequency: 50/60 Hz
- Network type: AC
- Poles: 3P+T+N
- Low voltage straight plug
Schneider mobile industrial plug 3X16A+NT 400V IP44 red PKX16M435
€5.35
Tax included
€5.35
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 160
: 42
Pay in installments with Klarna
Features:
- Schneider Series
- Earth terminal position (clockwise): 6 hours
- Material plug, socket :housing: self-extinguishing technopolymer
- Contacts material: brass pins
- Connections - terminals: quick connection
- Cable cross-section: 1...2.5 mm²
- Cable outer diameter: 8...15 mm
- Cable entry: Cable clamp/cable grommet
- Net weight: 0.212 kg
- Dimensions: height 142 mm - width 74 mm - depth 74 mm
- Color: gray (RAL 7035)
- Color of voltage: red
- Standard: IEC 60309-1 - IEC 60309-2
- Degree of protection IP44 in accordance with IEC 60529
- Degree of protection IK08 in accordance with EN 62262
- Fire resistance: 850 °C in accordance with IEC 60695-2-11
- Relative humidity: 50 % at 40 °C - 70 % at 30 °C - 90 % at 20 °C
- Operating altitude: 2000 meters
- Ambient air temperature for operation: 35 °C ( 86400 s ) / -25 +40 °C
Data sheet
- Type: CEE plugs
- Voltage: 380/415VAC
- Poles: 3P+N+T
- Degree of protection: IP44
- Installation: Furniture
- Amps: 16A
