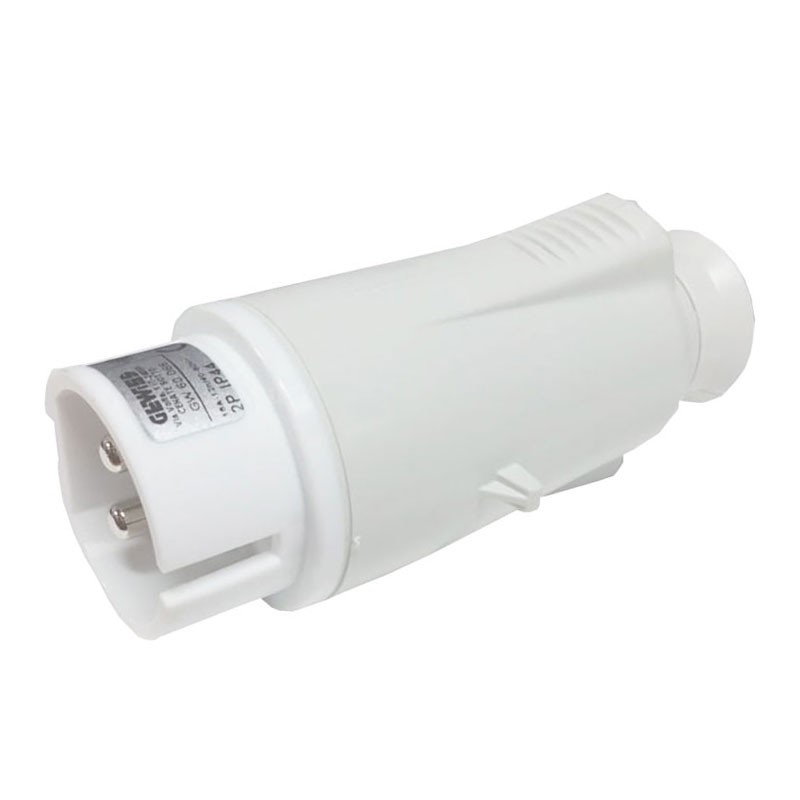

Gewiss mobile plug 2P 16A IP44 white 40-50V GW60066
GEW GW60066
8011564011014
Gewiss straight/mobile plug, with the following characteristics:
- Nominal voltage: 40- 50V
- Frequency: 50/60 Hz
- Rated current 16A
- Poles: 2
- Degree of protection IP44
- Screw wiring
Gewiss mobile plug 2P 16A IP44 white 40-50V GW60066
€8.71
Tax included
€8.71
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 3
: 1
Pay in installments with Klarna
Features:
- Gewiss Series
- White color
- Shock resistance IK08
- Reference h: 12
- Terminal clamping capacity: 1-2,5 mm² flexible cables - 1,5-4 mm² rigid cables
- Operating temperature -25 +55 °C
- Electrocod code: 2230
- Glow wire test: 850 °C (active parts) - 650 °C (passive parts)
- Total number of operations: > 5000
- Admissible overload: 22 A
- Breaking capacity at 1,1 Un: 20A
- Insulation resistance: > 10 MΩ
- Thermopressure with ball: 125 °C (Active parts) - 80 °C (Passive parts)
- Ware number: 85366990
There are no reviews
Data sheet
- Type: CEE plugs
- Voltage: 40/50VAC
- Poles: 2P
- Degree of protection: IP44
- Installation: Furniture
- Amps: 16A
